SDO HMI 2014-10-15 09:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.37 | 430.71 | 38.14 | 259.09 | -21.16 | 16.93 | 21.85 | 217.79 | 0.5689 | 861.8 | 334.8 | |
|
previous
or next observation for the same group /

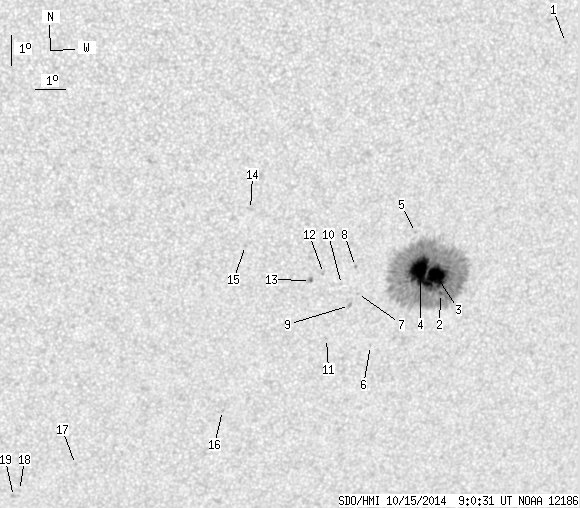

back to the solar disc SDO HMI 2014-10-15 09:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.22 | 0.00 | 0.72 | -13.75 | 20.90 | 25.82 | 232.42 | 0.5359 | -98.0 | -71.0 | |
| 1.40 | 409.10 | 0.85 | 246.32 | -21.78 | 17.74 | 22.65 | 218.08 | 0.5821 | 302.8 | 361.3 | |
| 25.87 | -2.00 | 15.62 | -2.00 | -21.17 | 17.50 | 22.41 | 218.49 | 0.5735 | 1187.0 | 999999 | |
| 35.58 | -2.00 | 21.36 | -2.00 | -21.04 | 16.92 | 21.84 | 217.93 | 0.5670 | 1345.5 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.62 | -19.70 | 16.55 | 21.47 | 219.06 | 0.5490 | 803.0 | 599.8 | |
| 0.00 | 0.79 | 0.00 | 0.48 | -23.46 | 15.57 | 20.49 | 213.58 | 0.5827 | 521.0 | 403.9 | |
| 0.00 | 0.96 | 0.00 | 0.57 | -21.67 | 14.85 | 19.77 | 214.55 | 0.5563 | 478.0 | 444.6 | |
| 0.00 | 1.05 | 0.00 | 0.62 | -20.75 | 14.65 | 19.57 | 215.31 | 0.5441 | 675.0 | 595.0 | |
| 0.00 | 1.84 | 0.00 | 1.09 | -22.06 | 14.63 | 19.55 | 213.83 | 0.5592 | 741.0 | 629.3 | |
| 0.00 | 0.44 | 0.00 | 0.26 | -21.34 | 14.26 | 19.18 | 214.11 | 0.5477 | 688.0 | 567.8 | |
| 0.00 | 1.49 | 0.00 | 0.89 | -23.16 | 14.00 | 18.92 | 211.85 | 0.5671 | -788.0 | -537.1 | |
| 0.00 | 1.75 | 0.00 | 1.03 | -20.95 | 13.60 | 18.51 | 213.62 | 0.5377 | -797.0 | -605.8 | |
| 0.52 | 2.97 | 0.31 | 1.74 | -21.17 | 13.18 | 18.10 | 212.80 | 0.5370 | 641.3 | 363.6 | |
| 0.00 | 2.01 | 0.00 | 1.14 | -18.74 | 10.92 | 15.84 | 212.07 | 0.4887 | -713.0 | -642.2 | |
| 0.00 | 1.05 | 0.00 | 0.60 | -19.93 | 10.87 | 15.79 | 210.68 | 0.5034 | -573.0 | -506.5 | |
| 0.00 | 1.14 | 0.00 | 0.69 | -25.54 | 10.76 | 15.67 | 205.22 | 0.5742 | -609.0 | -519.7 | |
| 0.00 | 1.05 | 0.00 | 0.63 | -27.32 | 5.92 | 10.83 | 197.02 | 0.5727 | -589.0 | -482.2 | |
| 0.00 | 0.96 | 0.00 | 0.58 | -28.22 | 4.08 | 8.99 | 193.84 | 0.5780 | -749.0 | -611.2 | |
| 0.00 | 1.84 | 0.00 | 1.11 | -28.43 | 3.89 | 8.81 | 193.46 | 0.5803 | -711.0 | -614.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
