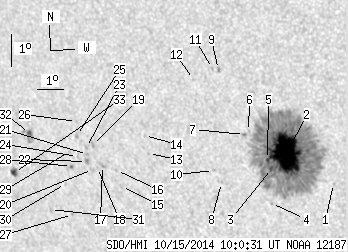

SDO HMI 2014-10-15 10:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 77.96 | 483.34 | 48.72 | 301.71 | -9.00 | 320.07 | -34.47 | 113.19 | 0.6095 | 502.8 | 271.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-15 10:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.70 | 0.00 | 0.43 | -9.77 | 322.53 | -32.00 | 115.93 | 0.5829 | -460.0 | -324.6 | |
| 67.74 | 434.75 | 41.80 | 268.39 | -8.93 | 320.93 | -33.61 | 113.54 | 0.5987 | 1133.6 | 353.1 | |
| 2.27 | -2.00 | 1.42 | -2.00 | -9.43 | 320.32 | -34.21 | 113.92 | 0.6091 | 173.2 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.71 | -10.52 | 320.19 | -34.35 | 115.48 | 0.6168 | 536.0 | 366.2 | |
| 2.36 | -2.00 | 1.47 | -2.00 | -9.16 | 320.21 | -34.33 | 113.44 | 0.6091 | 595.7 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.71 | -8.33 | 319.60 | -34.94 | 111.81 | 0.6126 | 502.0 | 267.8 | |
| 0.00 | 1.75 | 0.00 | 1.10 | -8.43 | 319.44 | -35.10 | 111.87 | 0.6151 | 605.0 | 407.1 | |
| 0.00 | 0.70 | 0.00 | 0.45 | -9.98 | 318.39 | -36.14 | 113.57 | 0.6360 | 665.0 | 536.0 | |
| 0.00 | 1.84 | 0.00 | 1.15 | -6.49 | 318.66 | -35.88 | 108.46 | 0.6161 | 798.0 | 658.8 | |
| 0.00 | 1.22 | 0.00 | 0.78 | -9.62 | 318.14 | -36.40 | 112.90 | 0.6374 | 690.0 | 565.6 | |
| 0.00 | 0.87 | 0.00 | 0.55 | -6.47 | 318.44 | -36.10 | 108.32 | 0.6190 | 525.0 | 486.8 | |
| 0.00 | 0.26 | 0.00 | 0.17 | -6.85 | 317.69 | -36.85 | 108.53 | 0.6302 | 524.0 | 506.0 | |
| 0.00 | 0.87 | 0.00 | 0.58 | -9.25 | 315.69 | -38.84 | 111.05 | 0.6656 | -607.0 | -503.2 | |
| 0.00 | 0.70 | 0.00 | 0.46 | -8.70 | 315.61 | -38.93 | 110.22 | 0.6642 | -658.0 | -567.8 | |
| 0.00 | 1.14 | 0.00 | 0.77 | -10.35 | 314.47 | -40.07 | 111.97 | 0.6851 | -545.0 | -574.8 | |
| 0.00 | 0.96 | 0.00 | 0.65 | -9.87 | 314.34 | -40.19 | 111.24 | 0.6844 | -658.0 | -574.5 | |
| 0.00 | 2.45 | 0.00 | 1.67 | -9.75 | 313.80 | -40.73 | 110.82 | 0.6903 | -683.0 | -666.5 | |
| 0.00 | 0.52 | 0.00 | 0.36 | -9.82 | 313.59 | -40.95 | 110.82 | 0.6932 | -566.0 | -583.0 | |
| 0.00 | 2.45 | 0.00 | 1.67 | -9.12 | 313.49 | -41.04 | 109.81 | 0.6914 | -765.0 | -679.0 | |
| 0.00 | 2.01 | 0.00 | 1.38 | -9.90 | 313.38 | -41.16 | 110.82 | 0.6960 | -589.0 | -561.4 | |
| 0.00 | 0.87 | 0.00 | 0.60 | -9.45 | 313.24 | -41.29 | 110.14 | 0.6957 | -828.0 | -684.2 | |
| 0.00 | 2.53 | 0.00 | 1.75 | -9.67 | 313.17 | -41.37 | 110.41 | 0.6975 | -828.0 | -666.6 | |
| 0.00 | 1.31 | 0.00 | 0.90 | -9.23 | 313.23 | -41.30 | 109.84 | 0.6949 | -716.0 | -671.9 | |
| 0.00 | 0.87 | 0.00 | 0.61 | -9.54 | 312.82 | -41.71 | 110.07 | 0.7010 | -460.0 | -375.0 | |
| 0.00 | 2.01 | 0.00 | 1.39 | -8.88 | 312.88 | -41.66 | 109.21 | 0.6977 | -607.0 | -479.0 | |
| 0.00 | 0.70 | 0.00 | 0.48 | -8.45 | 312.94 | -41.60 | 108.64 | 0.6954 | -574.0 | -520.4 | |
| 0.00 | 0.96 | 0.00 | 0.68 | -11.37 | 312.31 | -42.23 | 112.29 | 0.7144 | -572.0 | -536.1 | |
| 0.52 | 1.49 | 0.37 | 1.04 | -9.87 | 312.53 | -42.01 | 110.38 | 0.7057 | -610.8 | -493.5 | |
| 0.00 | 0.26 | 0.00 | 0.18 | -9.40 | 312.52 | -42.02 | 109.76 | 0.7040 | -597.0 | -574.3 | |
| 0.00 | 1.05 | 0.00 | 0.74 | -10.42 | 312.19 | -42.35 | 110.97 | 0.7118 | -446.0 | -422.2 | |
| 0.00 | 1.49 | 0.00 | 1.06 | -11.28 | 311.41 | -43.13 | 111.75 | 0.7241 | -392.0 | -270.6 | |
| 2.01 | 8.74 | 1.43 | 6.23 | -8.96 | 310.93 | -43.61 | 108.48 | 0.7207 | -704.4 | -579.8 | |
| 3.06 | 5.59 | 2.23 | 4.07 | -10.23 | 310.08 | -44.45 | 109.80 | 0.7349 | -619.1 | -442.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
