SDO HMI 2014-10-15 11:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66.24 | 418.52 | 40.21 | 253.98 | -21.26 | 16.92 | 22.93 | 219.01 | 0.5797 | 890.9 | 327.5 | |
|
previous
or next observation for the same group /

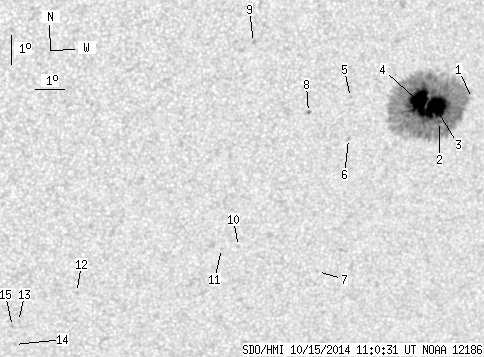

back to the solar disc SDO HMI 2014-10-15 11:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.59 | -20.97 | 18.71 | 24.72 | 221.43 | 0.5923 | -85.0 | -71.9 | |
| 2.18 | 403.75 | 1.34 | 245.06 | -21.70 | 17.67 | 23.68 | 219.40 | 0.5903 | 572.0 | 348.5 | |
| 31.99 | -2.00 | 19.47 | -2.00 | -21.22 | 17.45 | 23.46 | 219.70 | 0.5833 | 1127.2 | 999999 | |
| 32.07 | -2.00 | 19.40 | -2.00 | -21.02 | 16.86 | 22.87 | 219.22 | 0.5759 | 1341.7 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.52 | -20.76 | 14.44 | 20.45 | 216.49 | 0.5516 | 665.0 | 467.9 | |
| 0.00 | 1.84 | 0.00 | 1.10 | -22.14 | 14.57 | 20.59 | 215.11 | 0.5684 | 680.0 | 573.6 | |
| 0.00 | 0.79 | 0.00 | 0.49 | -26.73 | 14.26 | 20.27 | 210.16 | 0.6183 | 586.0 | 449.0 | |
| 0.00 | 1.57 | 0.00 | 0.93 | -21.21 | 13.07 | 19.08 | 214.14 | 0.5453 | 466.0 | 407.1 | |
| 0.00 | 1.31 | 0.00 | 0.75 | -18.81 | 10.95 | 16.96 | 213.77 | 0.4988 | -679.0 | -676.8 | |
| 0.00 | 0.96 | 0.00 | 0.59 | -25.74 | 11.31 | 17.32 | 207.31 | 0.5869 | -652.0 | -519.4 | |
| 0.00 | 0.96 | 0.00 | 0.59 | -25.79 | 10.73 | 16.74 | 206.48 | 0.5838 | -507.0 | -472.5 | |
| 0.00 | 1.14 | 0.00 | 0.69 | -27.21 | 5.90 | 11.92 | 198.67 | 0.5758 | -683.0 | -570.2 | |
| 0.00 | 1.05 | 0.00 | 0.64 | -28.21 | 4.01 | 10.02 | 195.35 | 0.5814 | -622.0 | -494.0 | |
| 0.00 | 1.40 | 0.00 | 0.86 | -29.04 | 3.95 | 9.96 | 194.85 | 0.5925 | -659.0 | -482.4 | |
| 0.00 | 1.92 | 0.00 | 1.17 | -28.38 | 3.82 | 9.83 | 194.99 | 0.5831 | -741.0 | -522.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
