SDO HMI 2014-10-15 13:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 64.64 | 403.63 | 39.56 | 246.99 | -21.25 | 16.87 | 23.98 | 220.25 | 0.5889 | 922.1 | 334.5 | |
|
previous
or next observation for the same group /

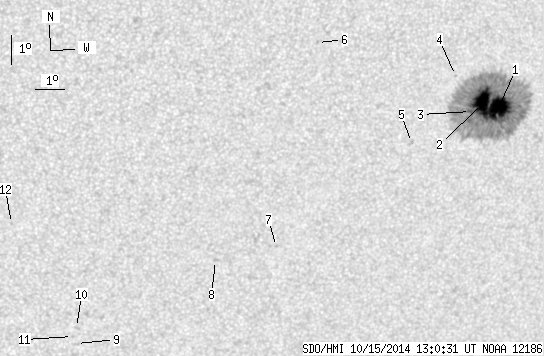

back to the solar disc SDO HMI 2014-10-15 13:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.41 | 391.65 | 19.90 | 239.77 | -21.20 | 17.43 | 24.54 | 220.96 | 0.5929 | 1114.8 | 355.8 | |
| 30.05 | -1.00 | 18.33 | -1.00 | -21.04 | 16.84 | 23.95 | 220.48 | 0.5859 | 1325.9 | 999999 | |
| 2.18 | -1.00 | 1.33 | -1.00 | -21.29 | 16.46 | 23.57 | 219.74 | 0.5850 | 907.2 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.52 | -20.06 | 15.74 | 22.85 | 220.36 | 0.5655 | 655.0 | 606.5 | |
| 0.00 | 2.10 | 0.00 | 1.27 | -22.26 | 14.56 | 21.67 | 216.36 | 0.5787 | 581.0 | 483.4 | |
| 0.00 | 1.14 | 0.00 | 0.65 | -18.78 | 10.90 | 18.01 | 215.40 | 0.5074 | -740.0 | -654.6 | |
| 0.00 | 1.05 | 0.00 | 0.64 | -25.68 | 10.41 | 17.52 | 207.62 | 0.5874 | -651.0 | -577.5 | |
| 0.00 | 1.83 | 0.00 | 1.11 | -26.10 | 8.35 | 15.46 | 204.49 | 0.5799 | -580.0 | -466.4 | |
| 0.00 | 1.75 | 0.00 | 1.08 | -28.95 | 3.88 | 10.99 | 196.34 | 0.5952 | -277.0 | -404.5 | |
| 0.00 | 1.66 | 0.00 | 1.01 | -28.37 | 3.82 | 10.93 | 196.57 | 0.5871 | -641.0 | -521.5 | |
| 0.00 | 0.79 | 0.00 | 0.48 | -28.70 | 3.72 | 10.83 | 196.25 | 0.5911 | -548.0 | -439.8 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -24.64 | 1.30 | 8.41 | 194.72 | 0.5254 | -714.0 | -619.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
