SDO HMI 2014-10-15 19:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.71 | 0.00 | 6.00 | 15.31 | 359.78 | 10.19 | 314.56 | 0.2525 | -625.3 | -500.3 | |
|
previous
or next observation for the same group /

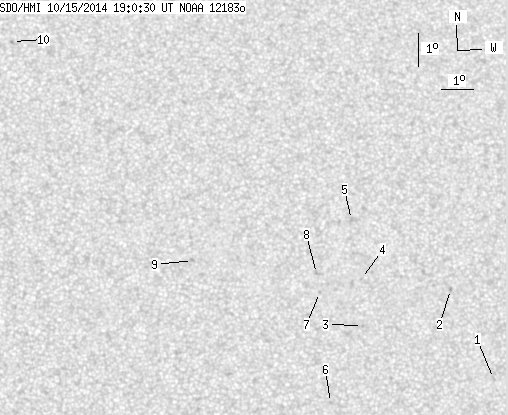

back to the solar disc SDO HMI 2014-10-15 19:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.48 | 0.00 | 0.77 | 11.94 | 5.05 | 15.47 | 292.83 | 0.2844 | -632.0 | -570.6 | |
| 0.00 | 1.31 | 0.00 | 0.68 | 14.65 | 3.86 | 14.27 | 303.23 | 0.2865 | -874.0 | -705.5 | |
| 0.00 | 1.05 | 0.00 | 0.53 | 13.63 | 1.02 | 11.43 | 305.53 | 0.2378 | -767.0 | -626.2 | |
| 0.00 | 0.79 | 0.00 | 0.40 | 15.05 | 1.06 | 11.48 | 310.14 | 0.2525 | -597.0 | -518.1 | |
| 0.00 | 1.57 | 0.00 | 0.81 | 16.85 | 0.85 | 11.27 | 315.88 | 0.2698 | -822.0 | -579.6 | |
| 0.00 | 0.79 | 0.00 | 0.40 | 11.34 | 359.92 | 10.33 | 298.98 | 0.2020 | -963.0 | -764.1 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 14.65 | 359.72 | 10.13 | 312.28 | 0.2311 | -724.0 | -602.7 | |
| 0.00 | 1.14 | 0.00 | 0.58 | 15.23 | 359.65 | 10.07 | 314.31 | 0.2368 | -893.0 | -676.3 | |
| 0.00 | 1.40 | 0.00 | 0.71 | 15.68 | 355.79 | 6.20 | 328.76 | 0.2015 | -732.0 | -679.0 | |
| 0.00 | 1.22 | 0.00 | 0.63 | 22.45 | 350.23 | 0.64 | 357.93 | 0.2873 | 751.0 | 629.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
