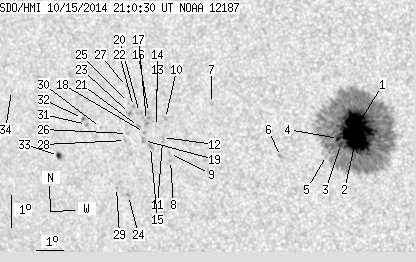

SDO HMI 2014-10-15 21:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 80.00 | 514.54 | 46.55 | 300.37 | -9.02 | 320.15 | -28.33 | 117.64 | 0.5305 | 511.2 | 326.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-15 21:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.45 | 468.67 | 19.33 | 271.42 | -8.68 | 321.00 | -27.48 | 117.68 | 0.5172 | 1423.5 | 430.0 | |
| 40.34 | -1.00 | 23.41 | -1.00 | -9.21 | 320.85 | -27.63 | 118.46 | 0.5228 | 1220.7 | 999999 | |
| 2.10 | -1.00 | 1.22 | -1.00 | -9.36 | 320.32 | -28.16 | 118.25 | 0.5307 | 568.0 | 999999 | |
| 1.66 | -1.00 | 0.97 | -1.00 | -9.17 | 320.27 | -28.21 | 117.90 | 0.5301 | 818.5 | 999999 | |
| 0.00 | 1.75 | 0.00 | 1.03 | -9.72 | 319.81 | -28.67 | 118.42 | 0.5399 | 304.0 | 146.4 | |
| 0.00 | 1.48 | 0.00 | 0.89 | -9.84 | 318.19 | -30.29 | 117.30 | 0.5614 | 740.0 | 630.6 | |
| 0.00 | 1.05 | 0.00 | 0.64 | -8.32 | 315.89 | -32.59 | 113.23 | 0.5822 | -753.0 | -618.6 | |
| 0.00 | 0.79 | 0.00 | 0.49 | -10.18 | 314.19 | -34.29 | 115.00 | 0.6140 | -714.0 | -639.2 | |
| 0.00 | 1.48 | 0.00 | 0.93 | -9.96 | 314.18 | -34.30 | 114.67 | 0.6130 | -685.0 | -556.2 | |
| 0.00 | 1.66 | 0.00 | 1.03 | -8.88 | 314.16 | -34.32 | 113.01 | 0.6074 | -870.0 | -680.5 | |
| 0.00 | 1.40 | 0.00 | 0.87 | -9.60 | 313.97 | -34.51 | 113.99 | 0.6137 | -759.0 | -646.9 | |
| 0.00 | 0.87 | 0.00 | 0.55 | -9.48 | 313.98 | -34.50 | 113.81 | 0.6128 | -802.0 | -700.4 | |
| 0.00 | 0.87 | 0.00 | 0.54 | -8.56 | 313.86 | -34.61 | 112.34 | 0.6096 | -769.0 | -650.9 | |
| 0.00 | 0.96 | 0.00 | 0.60 | -9.15 | 313.80 | -34.68 | 113.20 | 0.6134 | -618.0 | -532.3 | |
| 0.00 | 2.79 | 0.00 | 1.76 | -9.79 | 313.50 | -34.98 | 113.97 | 0.6205 | -744.0 | -610.1 | |
| 0.00 | 1.05 | 0.00 | 0.66 | -8.73 | 313.55 | -34.93 | 112.42 | 0.6144 | -789.0 | -679.3 | |
| 0.00 | 5.06 | 0.00 | 3.18 | -8.99 | 313.45 | -35.03 | 112.74 | 0.6170 | -656.0 | -729.2 | |
| 0.00 | 1.40 | 0.00 | 0.88 | -9.36 | 313.33 | -35.15 | 113.24 | 0.6204 | -820.0 | -670.9 | |
| 0.00 | 2.62 | 0.00 | 1.65 | -9.61 | 313.26 | -35.22 | 113.57 | 0.6226 | -715.0 | -586.2 | |
| 0.00 | 2.10 | 0.00 | 1.32 | -8.75 | 313.22 | -35.26 | 112.25 | 0.6188 | -710.0 | -625.2 | |
| 0.00 | 1.40 | 0.00 | 0.88 | -9.19 | 313.13 | -35.35 | 112.86 | 0.6221 | -745.0 | -633.1 | |
| 0.00 | 1.14 | 0.00 | 0.72 | -8.58 | 313.01 | -35.47 | 111.87 | 0.6205 | -610.0 | -470.6 | |
| 0.00 | 1.75 | 0.00 | 1.10 | -8.81 | 312.84 | -35.64 | 112.11 | 0.6238 | -820.0 | -640.1 | |
| 0.00 | 1.40 | 0.00 | 0.90 | -11.37 | 312.46 | -36.02 | 115.65 | 0.6418 | -793.0 | -659.7 | |
| 0.00 | 0.79 | 0.00 | 0.50 | -8.47 | 312.84 | -35.64 | 111.60 | 0.6222 | -503.0 | -389.7 | |
| 0.00 | 1.57 | 0.00 | 1.00 | -9.43 | 312.69 | -35.79 | 112.96 | 0.6288 | -771.0 | -602.1 | |
| 0.00 | 0.96 | 0.00 | 0.61 | -7.98 | 312.82 | -35.66 | 110.85 | 0.6201 | -539.0 | -492.8 | |
| 0.00 | 0.52 | 0.00 | 0.33 | -9.66 | 312.59 | -35.89 | 113.23 | 0.6312 | -602.0 | -471.7 | |
| 0.00 | 1.14 | 0.00 | 0.73 | -11.15 | 312.04 | -36.44 | 115.07 | 0.6456 | -525.0 | -419.7 | |
| 0.00 | 1.14 | 0.00 | 0.73 | -9.31 | 311.69 | -36.79 | 112.21 | 0.6407 | -486.0 | -367.3 | |
| 0.00 | 1.22 | 0.00 | 0.79 | -9.25 | 311.16 | -37.32 | 111.83 | 0.6469 | -827.0 | -607.3 | |
| 0.35 | 1.40 | 0.23 | 0.91 | -9.07 | 311.03 | -37.45 | 111.50 | 0.6477 | -762.0 | -584.0 | |
| 2.10 | 3.32 | 1.39 | 2.20 | -10.29 | 309.94 | -38.54 | 112.66 | 0.6666 | -689.3 | -548.1 | |
| 0.00 | 0.79 | 0.00 | 0.53 | -8.38 | 308.36 | -40.12 | 109.19 | 0.6774 | -486.0 | -345.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
