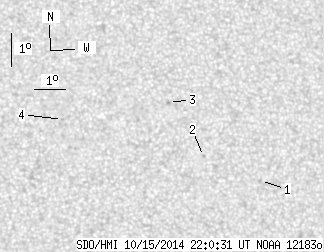

SDO HMI 2014-10-15 22:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.81 | 0.00 | 2.51 | 13.75 | 3.96 | 16.03 | 298.26 | 0.3059 | -780.0 | -634.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-15 22:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.60 | 12.29 | 6.62 | 18.69 | 290.59 | 0.3360 | -654.0 | -563.3 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 13.07 | 4.84 | 16.91 | 294.67 | 0.3133 | -697.0 | -604.8 | |
| 0.00 | 1.75 | 0.00 | 0.91 | 14.73 | 3.84 | 15.91 | 300.84 | 0.3103 | -847.0 | -619.7 | |
| 0.00 | 1.05 | 0.00 | 0.54 | 14.30 | 0.44 | 12.51 | 305.47 | 0.2589 | -922.0 | -762.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
