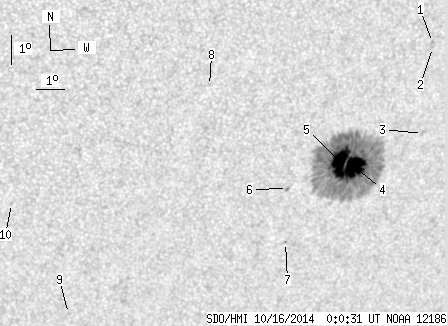

SDO HMI 2014-10-16 00:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.88 | 383.02 | 39.39 | 247.87 | -21.13 | 16.94 | 30.12 | 226.73 | 0.6451 | 923.5 | 333.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-16 00:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.48 | 0.00 | 0.95 | -17.25 | 19.33 | 32.50 | 233.72 | 0.6389 | 698.0 | 526.1 | |
| 0.00 | 0.96 | 0.00 | 0.62 | -17.41 | 19.36 | 32.54 | 233.53 | 0.6405 | 660.0 | 531.1 | |
| 0.00 | 1.57 | 0.00 | 1.04 | -20.24 | 19.60 | 32.78 | 230.13 | 0.6641 | -636.0 | -431.7 | |
| 30.22 | 373.33 | 19.63 | 241.72 | -21.24 | 17.28 | 30.45 | 226.91 | 0.6492 | 1001.5 | 341.5 | |
| 30.66 | -4.00 | 19.76 | -4.00 | -21.04 | 16.71 | 29.89 | 226.63 | 0.6421 | 1229.5 | 999999 | |
| 0.00 | 1.75 | 0.00 | 1.11 | -21.81 | 14.93 | 28.11 | 224.01 | 0.6319 | 312.0 | 457.6 | |
| 0.00 | 1.05 | 0.00 | 0.68 | -23.66 | 15.27 | 28.45 | 222.21 | 0.6518 | 583.0 | 473.2 | |
| 0.00 | 0.96 | 0.00 | 0.58 | -18.23 | 11.51 | 24.68 | 224.84 | 0.5647 | -517.0 | -289.7 | |
| 0.00 | 0.96 | 0.00 | 0.60 | -25.77 | 7.84 | 21.02 | 211.95 | 0.6126 | -560.0 | -472.9 | |
| 0.00 | 0.96 | 0.00 | 0.57 | -21.89 | 5.25 | 18.42 | 212.50 | 0.5479 | -730.0 | -673.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
