SDO HMI 2014-10-16 03:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.45 | 377.98 | 38.49 | 248.61 | -21.11 | 16.82 | 31.64 | 228.12 | 0.6597 | 847.1 | 332.3 | |
|
previous
or next observation for the same group /

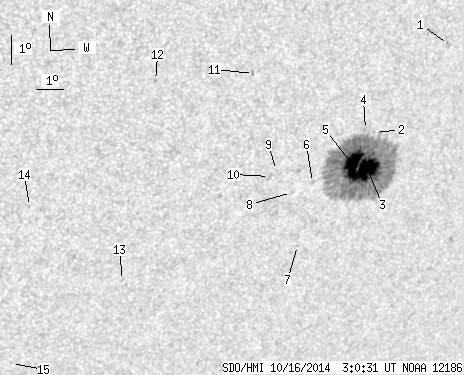

back to the solar disc SDO HMI 2014-10-16 03:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.23 | 0.00 | 2.12 | -17.24 | 19.41 | 34.24 | 235.11 | 0.6575 | 657.0 | 531.0 | |
| 0.00 | 0.87 | 0.00 | 0.57 | -19.99 | 17.22 | 32.05 | 229.85 | 0.6547 | 603.0 | 467.2 | |
| 29.62 | 359.46 | 19.58 | 236.83 | -21.22 | 17.25 | 32.07 | 228.37 | 0.6646 | 1032.9 | 350.0 | |
| 0.00 | 1.14 | 0.00 | 0.74 | -19.86 | 16.86 | 31.68 | 229.69 | 0.6501 | 270.0 | 253.0 | |
| 28.83 | -3.00 | 18.91 | -3.00 | -21.05 | 16.68 | 31.50 | 228.08 | 0.6578 | 1274.8 | 999999 | |
| 0.00 | 1.83 | 0.00 | 1.19 | -21.54 | 15.26 | 30.08 | 226.23 | 0.6480 | 634.0 | 566.3 | |
| 0.00 | 0.61 | 0.00 | 0.40 | -23.67 | 15.21 | 30.03 | 223.70 | 0.6658 | 597.0 | 448.9 | |
| 0.00 | 1.40 | 0.00 | 0.90 | -21.83 | 14.54 | 29.37 | 225.21 | 0.6438 | 189.0 | 313.6 | |
| 0.00 | 0.70 | 0.00 | 0.44 | -21.06 | 13.82 | 28.65 | 225.45 | 0.6301 | -232.0 | -205.0 | |
| 0.00 | 2.97 | 0.00 | 1.89 | -21.25 | 13.61 | 28.43 | 225.02 | 0.6297 | -339.0 | -267.3 | |
| 0.00 | 1.57 | 0.00 | 0.96 | -17.79 | 12.39 | 27.21 | 228.17 | 0.5866 | -650.0 | -512.4 | |
| 0.00 | 1.14 | 0.00 | 0.67 | -17.86 | 8.98 | 23.81 | 224.34 | 0.5519 | -745.0 | -601.1 | |
| 0.00 | 1.31 | 0.00 | 0.83 | -24.56 | 8.97 | 23.79 | 216.40 | 0.6206 | -566.0 | -445.3 | |
| 0.00 | 0.96 | 0.00 | 0.57 | -21.88 | 5.24 | 20.07 | 214.75 | 0.5607 | -544.0 | -447.1 | |
| 0.00 | 0.79 | 0.00 | 0.50 | -27.32 | 5.52 | 20.35 | 209.73 | 0.6253 | -587.0 | -407.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
