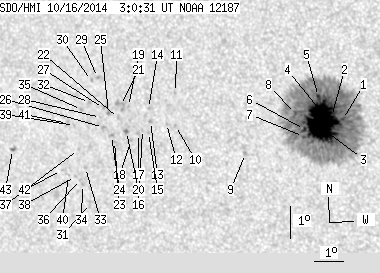

SDO HMI 2014-10-16 03:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 83.97 | 579.20 | 47.32 | 328.16 | -9.00 | 320.16 | -25.02 | 120.62 | 0.4866 | 465.6 | 314.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-16 03:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.31 | 528.97 | 0.73 | 297.70 | -8.84 | 321.57 | -23.61 | 121.71 | 0.4671 | 1374.5 | 416.7 | |
| 4.11 | -1.00 | 2.30 | -1.00 | -8.76 | 321.21 | -23.97 | 121.18 | 0.4712 | 1693.3 | 999999 | |
| 46.22 | -1.00 | 26.05 | -1.00 | -9.15 | 320.85 | -24.33 | 121.50 | 0.4789 | 1268.5 | 999999 | |
| 25.43 | -1.00 | 14.29 | -1.00 | -8.59 | 320.86 | -24.32 | 120.50 | 0.4745 | 1416.5 | 999999 | |
| 1.49 | -1.00 | 0.83 | -1.00 | -8.16 | 320.82 | -24.36 | 119.67 | 0.4717 | 962.8 | 999999 | |
| 1.49 | -1.00 | 0.84 | -1.00 | -9.20 | 320.28 | -24.90 | 121.00 | 0.4868 | 886.6 | 999999 | |
| 1.31 | -1.00 | 0.74 | -1.00 | -9.42 | 320.23 | -24.95 | 121.34 | 0.4892 | 531.6 | 999999 | |
| 1.57 | -1.00 | 0.89 | -1.00 | -8.72 | 320.01 | -25.16 | 119.87 | 0.4866 | 440.9 | 999999 | |
| 0.00 | 1.83 | 0.00 | 1.06 | -10.04 | 318.22 | -26.96 | 120.43 | 0.5198 | 701.0 | 524.3 | |
| 0.00 | 1.14 | 0.00 | 0.67 | -9.28 | 315.88 | -29.30 | 117.14 | 0.5449 | -724.0 | -664.8 | |
| 0.00 | 1.22 | 0.00 | 0.72 | -8.26 | 315.97 | -29.21 | 115.50 | 0.5372 | -669.0 | -563.9 | |
| 0.00 | 0.87 | 0.00 | 0.52 | -9.24 | 315.57 | -29.61 | 116.82 | 0.5486 | -589.0 | -516.2 | |
| 0.00 | 1.22 | 0.00 | 0.73 | -9.20 | 315.01 | -30.16 | 116.33 | 0.5556 | -879.0 | -772.4 | |
| 0.00 | 0.87 | 0.00 | 0.52 | -8.80 | 314.98 | -30.20 | 115.65 | 0.5535 | 362.0 | 109.8 | |
| 0.00 | 0.79 | 0.00 | 0.47 | -9.55 | 314.91 | -30.27 | 116.82 | 0.5591 | -701.0 | -589.6 | |
| 0.00 | 0.96 | 0.00 | 0.57 | -9.47 | 314.70 | -30.47 | 116.53 | 0.5612 | -672.0 | -648.0 | |
| 0.00 | 1.40 | 0.00 | 0.84 | -9.60 | 314.55 | -30.63 | 116.62 | 0.5640 | -798.0 | -655.8 | |
| 0.00 | 1.14 | 0.00 | 0.68 | -9.80 | 314.28 | -30.89 | 116.74 | 0.5687 | -689.0 | -609.3 | |
| 0.00 | 0.79 | 0.00 | 0.47 | -8.78 | 314.28 | -30.90 | 115.10 | 0.5626 | -895.0 | -782.1 | |
| 0.52 | 2.18 | 0.32 | 1.31 | -9.56 | 314.13 | -31.05 | 116.24 | 0.5692 | -905.8 | -751.5 | |
| 0.00 | 5.59 | 0.00 | 3.35 | -8.76 | 313.99 | -31.18 | 114.87 | 0.5661 | -411.0 | -702.9 | |
| 0.00 | 1.66 | 0.00 | 1.00 | -9.17 | 313.88 | -31.29 | 115.44 | 0.5700 | -761.0 | -628.9 | |
| 0.00 | 0.79 | 0.00 | 0.48 | -9.89 | 313.67 | -31.51 | 116.43 | 0.5772 | -423.0 | -379.7 | |
| 0.00 | 2.01 | 0.00 | 1.22 | -9.71 | 313.58 | -31.59 | 116.08 | 0.5772 | -828.0 | -671.3 | |
| 0.00 | 1.66 | 0.00 | 1.00 | -9.00 | 313.55 | -31.63 | 114.93 | 0.5734 | -841.0 | -702.4 | |
| 0.00 | 2.10 | 0.00 | 1.27 | -9.48 | 313.32 | -31.86 | 115.53 | 0.5791 | -862.0 | -562.7 | |
| 0.00 | 0.96 | 0.00 | 0.58 | -8.89 | 313.38 | -31.80 | 114.63 | 0.5749 | -712.0 | -586.6 | |
| 0.00 | 0.79 | 0.00 | 0.48 | -9.17 | 313.24 | -31.93 | 114.99 | 0.5783 | -656.0 | -574.1 | |
| 0.00 | 0.87 | 0.00 | 0.53 | -7.94 | 313.25 | -31.92 | 113.02 | 0.5712 | -765.0 | -726.1 | |
| 0.00 | 1.31 | 0.00 | 0.79 | -8.04 | 313.03 | -32.14 | 113.04 | 0.5747 | -719.0 | -554.5 | |
| 0.00 | 2.71 | 0.00 | 1.68 | -11.88 | 312.56 | -32.62 | 118.66 | 0.6034 | -589.0 | -487.2 | |
| 0.00 | 1.31 | 0.00 | 0.80 | -8.73 | 312.89 | -32.28 | 114.05 | 0.5803 | -808.0 | -599.4 | |
| 0.00 | 1.22 | 0.00 | 0.75 | -10.76 | 312.52 | -32.65 | 116.95 | 0.5969 | -606.0 | -543.1 | |
| 0.00 | 1.31 | 0.00 | 0.81 | -11.30 | 312.34 | -32.83 | 117.64 | 0.6023 | -617.0 | -521.9 | |
| 0.00 | 1.40 | 0.00 | 0.85 | -8.96 | 312.58 | -32.59 | 114.21 | 0.5856 | -695.0 | -568.1 | |
| 0.00 | 0.79 | 0.00 | 0.49 | -11.15 | 312.29 | -32.88 | 117.37 | 0.6021 | -689.0 | -604.0 | |
| 0.00 | 1.05 | 0.00 | 0.65 | -10.21 | 312.34 | -32.84 | 115.98 | 0.5959 | -667.0 | -458.4 | |
| 0.00 | 0.87 | 0.00 | 0.54 | -11.06 | 312.12 | -33.05 | 117.13 | 0.6037 | -611.0 | -510.7 | |
| 0.00 | 0.87 | 0.00 | 0.54 | -9.47 | 312.28 | -32.90 | 114.80 | 0.5924 | -556.0 | -454.9 | |
| 0.00 | 0.61 | 0.00 | 0.38 | -11.05 | 311.87 | -33.31 | 116.92 | 0.6067 | -457.0 | -366.9 | |
| 0.00 | 2.71 | 0.00 | 1.67 | -9.42 | 312.03 | -33.15 | 114.56 | 0.5953 | -670.0 | -518.5 | |
| 0.00 | 0.87 | 0.00 | 0.54 | -10.91 | 311.63 | -33.54 | 116.55 | 0.6088 | -455.0 | -362.3 | |
| 0.52 | 2.36 | 0.33 | 1.50 | -10.35 | 309.89 | -35.28 | 114.60 | 0.6272 | -784.7 | -654.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
