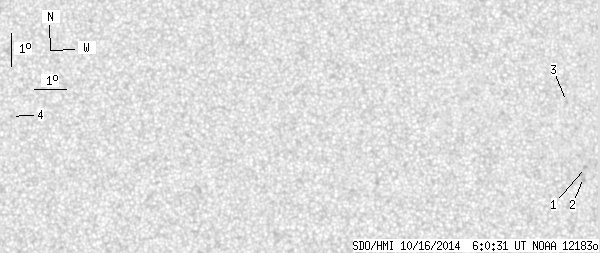

SDO HMI 2014-10-16 06:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.04 | 0.00 | 4.18 | 14.16 | 357.96 | 14.43 | 306.64 | 0.2987 | -358.8 | -545.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-16 06:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.66 | 0.00 | 0.87 | 13.81 | 0.51 | 16.98 | 296.89 | 0.3193 | -828.0 | -786.1 | |
| 0.00 | 4.19 | 0.00 | 2.19 | 13.51 | 0.42 | 16.89 | 296.13 | 0.3160 | -730.0 | -747.1 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 15.82 | 0.06 | 16.52 | 303.08 | 0.3280 | -734.0 | -620.3 | |
| 0.00 | 1.14 | 0.00 | 0.57 | 15.62 | 342.59 | -0.94 | 5.31 | 0.1723 | 857.0 | 666.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
