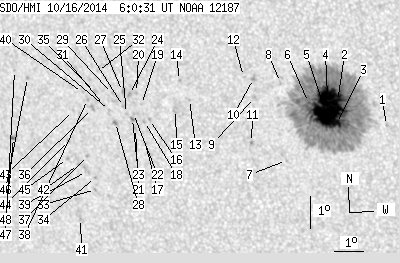

SDO HMI 2014-10-16 06:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 84.06 | 582.23 | 46.73 | 325.83 | -8.97 | 320.11 | -23.42 | 122.26 | 0.4654 | 422.9 | 294.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-16 06:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.43 | -9.37 | 322.73 | -20.80 | 126.06 | 0.4352 | -609.0 | -420.6 | |
| 7.60 | 521.85 | 4.21 | 290.05 | -8.69 | 321.18 | -22.35 | 122.83 | 0.4492 | 1696.9 | 412.1 | |
| 5.51 | -2.00 | 3.06 | -2.00 | -9.37 | 321.10 | -22.43 | 124.01 | 0.4560 | 1144.2 | 999999 | |
| 27.26 | -2.00 | 15.12 | -2.00 | -8.54 | 320.86 | -22.67 | 122.19 | 0.4522 | 1411.1 | 999999 | |
| 41.07 | -2.00 | 22.86 | -2.00 | -9.10 | 320.79 | -22.74 | 123.15 | 0.4577 | 1311.4 | 999999 | |
| 2.27 | -2.00 | 1.27 | -2.00 | -8.75 | 320.23 | -23.31 | 121.86 | 0.4623 | 879.3 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.50 | -10.59 | 319.35 | -24.18 | 124.17 | 0.4886 | 512.0 | 416.0 | |
| 0.00 | 1.66 | 0.00 | 0.93 | -8.17 | 319.34 | -24.19 | 119.83 | 0.4695 | 247.0 | 255.2 | |
| 0.00 | 2.27 | 0.00 | 1.29 | -8.67 | 318.44 | -25.09 | 119.83 | 0.4852 | 618.0 | 382.5 | |
| 0.00 | 2.62 | 0.00 | 1.48 | -8.09 | 318.45 | -25.08 | 118.77 | 0.4808 | -1058.0 | -748.1 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -10.08 | 318.23 | -25.30 | 122.09 | 0.4987 | 668.0 | 630.1 | |
| 0.00 | 0.44 | 0.00 | 0.25 | -8.04 | 318.12 | -25.41 | 118.37 | 0.4849 | -532.0 | -510.2 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -8.84 | 316.23 | -27.30 | 118.05 | 0.5155 | -673.0 | -591.3 | |
| 0.00 | 1.05 | 0.00 | 0.61 | -8.26 | 315.94 | -27.59 | 116.80 | 0.5156 | -816.0 | -673.5 | |
| 0.00 | 3.76 | 0.00 | 2.18 | -9.17 | 315.73 | -27.80 | 118.17 | 0.5245 | -678.0 | -667.7 | |
| 0.00 | 1.14 | 0.00 | 0.67 | -9.52 | 314.80 | -28.73 | 117.98 | 0.5390 | -953.0 | -788.0 | |
| 0.00 | 1.22 | 0.00 | 0.72 | -10.28 | 314.59 | -28.94 | 119.04 | 0.5468 | -755.0 | -581.1 | |
| 0.00 | 1.31 | 0.00 | 0.77 | -9.59 | 314.62 | -28.91 | 117.95 | 0.5418 | -777.0 | -684.2 | |
| 0.00 | 0.26 | 0.00 | 0.15 | -9.07 | 314.56 | -28.97 | 117.03 | 0.5390 | -838.0 | -776.0 | |
| 0.00 | 1.14 | 0.00 | 0.67 | -8.71 | 314.42 | -29.11 | 116.31 | 0.5385 | -635.0 | -567.8 | |
| 0.00 | 1.49 | 0.00 | 0.88 | -9.83 | 314.28 | -29.25 | 118.05 | 0.5476 | -749.0 | -630.5 | |
| 0.00 | 0.96 | 0.00 | 0.57 | -9.36 | 314.26 | -29.27 | 117.27 | 0.5449 | -801.0 | -684.2 | |
| 0.35 | 2.01 | 0.21 | 1.19 | -9.52 | 314.21 | -29.32 | 117.49 | 0.5466 | -946.5 | -784.3 | |
| 0.00 | 2.18 | 0.00 | 1.29 | -8.78 | 314.17 | -29.36 | 116.24 | 0.5423 | -991.0 | -865.7 | |
| 0.00 | 1.31 | 0.00 | 0.77 | -9.38 | 314.01 | -29.52 | 117.10 | 0.5482 | -800.0 | -577.7 | |
| 0.00 | 1.66 | 0.00 | 0.98 | -9.16 | 313.93 | -29.60 | 116.68 | 0.5479 | -571.0 | -469.6 | |
| 0.00 | 1.57 | 0.00 | 0.93 | -8.70 | 313.94 | -29.59 | 115.92 | 0.5449 | -701.0 | -617.3 | |
| 0.00 | 2.18 | 0.00 | 1.30 | -9.67 | 313.60 | -29.93 | 117.26 | 0.5555 | -823.0 | -698.4 | |
| 0.00 | 0.70 | 0.00 | 0.41 | -8.78 | 313.58 | -29.95 | 115.78 | 0.5501 | -726.0 | -622.9 | |
| 0.00 | 0.87 | 0.00 | 0.52 | -9.31 | 313.42 | -30.11 | 116.53 | 0.5554 | -682.0 | -522.0 | |
| 0.00 | 0.79 | 0.00 | 0.47 | -9.17 | 313.26 | -30.27 | 116.17 | 0.5566 | -340.0 | -360.1 | |
| 0.00 | 0.79 | 0.00 | 0.47 | -8.13 | 313.11 | -30.42 | 114.34 | 0.5523 | -689.0 | -557.7 | |
| 0.00 | 1.05 | 0.00 | 0.64 | -11.81 | 312.65 | -30.88 | 119.86 | 0.5815 | -739.0 | -648.4 | |
| 0.00 | 0.87 | 0.00 | 0.53 | -11.43 | 312.70 | -30.83 | 119.32 | 0.5784 | -874.0 | -706.2 | |
| 0.00 | 1.92 | 0.00 | 1.15 | -8.75 | 312.95 | -30.58 | 115.26 | 0.5581 | -880.0 | -573.0 | |
| 0.00 | 2.36 | 0.00 | 1.41 | -9.28 | 312.83 | -30.70 | 116.03 | 0.5629 | -672.0 | -573.3 | |
| 0.00 | 1.14 | 0.00 | 0.69 | -10.76 | 312.49 | -31.04 | 118.11 | 0.5765 | -761.0 | -713.2 | |
| 0.00 | 1.22 | 0.00 | 0.73 | -9.01 | 312.68 | -30.85 | 115.48 | 0.5632 | -766.0 | -597.6 | |
| 0.00 | 3.41 | 0.00 | 2.07 | -11.26 | 312.40 | -31.13 | 118.82 | 0.5810 | -603.0 | -507.1 | |
| 0.00 | 0.52 | 0.00 | 0.31 | -8.80 | 312.52 | -31.01 | 115.03 | 0.5640 | -599.0 | -490.7 | |
| 0.00 | 1.66 | 0.00 | 1.02 | -12.75 | 311.99 | -31.54 | 120.75 | 0.5959 | -714.0 | -566.5 | |
| 0.00 | 1.05 | 0.00 | 0.64 | -11.06 | 312.14 | -31.39 | 118.30 | 0.5829 | -652.0 | -537.0 | |
| 0.00 | 0.79 | 0.00 | 0.47 | -9.38 | 312.15 | -31.38 | 115.69 | 0.5723 | -663.0 | -516.3 | |
| 0.00 | 1.31 | 0.00 | 0.80 | -10.32 | 311.87 | -31.66 | 116.97 | 0.5817 | -425.0 | -408.1 | |
| 0.00 | 1.57 | 0.00 | 0.96 | -10.89 | 311.76 | -31.77 | 117.77 | 0.5865 | -499.0 | -433.6 | |
| 0.00 | 1.22 | 0.00 | 0.75 | -8.45 | 310.59 | -32.94 | 113.14 | 0.5871 | -536.0 | -365.9 | |
| 0.00 | 0.87 | 0.00 | 0.54 | -8.25 | 310.14 | -33.39 | 112.56 | 0.5920 | 369.0 | 287.0 | |
| 0.00 | 2.80 | 0.00 | 1.74 | -10.34 | 309.87 | -33.66 | 115.60 | 0.6068 | -819.0 | -683.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
