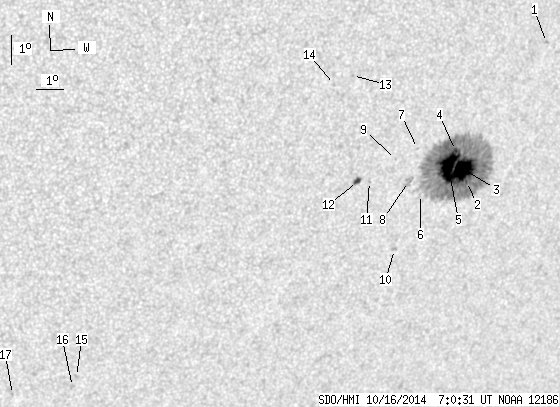

SDO HMI 2014-10-16 07:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61.59 | 377.47 | 41.52 | 254.45 | -21.22 | 16.65 | 33.66 | 229.68 | 0.6803 | 836.4 | 299.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-16 07:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.66 | 0.00 | 1.12 | -17.17 | 19.44 | 36.46 | 236.82 | 0.6806 | 761.0 | 676.6 | |
| 0.26 | 353.45 | 0.18 | 238.73 | -21.61 | 17.43 | 34.45 | 229.84 | 0.6904 | 321.3 | 311.1 | |
| 28.92 | -2.00 | 19.61 | -2.00 | -21.20 | 17.20 | 34.22 | 230.16 | 0.6852 | 1039.9 | 999999 | |
| 1.22 | -2.00 | 0.82 | -2.00 | -20.54 | 16.72 | 33.74 | 230.58 | 0.6756 | 1193.9 | 999999 | |
| 28.66 | -2.00 | 19.27 | -2.00 | -21.10 | 16.59 | 33.61 | 229.80 | 0.6785 | 1272.3 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.53 | -21.95 | 15.74 | 32.75 | 228.08 | 0.6767 | 333.0 | 261.1 | |
| 0.00 | 0.70 | 0.00 | 0.46 | -20.38 | 15.24 | 32.25 | 229.55 | 0.6597 | 653.0 | 554.1 | |
| 0.00 | 6.64 | 0.00 | 4.41 | -21.48 | 15.16 | 32.18 | 228.16 | 0.6675 | 755.0 | 576.6 | |
| 0.00 | 0.35 | 0.00 | 0.23 | -20.71 | 14.48 | 31.50 | 228.51 | 0.6547 | 604.0 | 638.2 | |
| 0.00 | 2.01 | 0.00 | 1.36 | -23.78 | 15.23 | 32.24 | 225.53 | 0.6864 | 608.0 | 425.4 | |
| 0.00 | 0.87 | 0.00 | 0.57 | -21.39 | 13.67 | 30.68 | 226.96 | 0.6524 | -516.0 | -336.3 | |
| 2.53 | 4.19 | 1.64 | 2.72 | -21.37 | 13.21 | 30.23 | 226.58 | 0.6478 | -678.0 | -456.6 | |
| 0.00 | 0.87 | 0.00 | 0.54 | -17.83 | 12.31 | 29.32 | 230.22 | 0.6090 | -558.0 | -482.0 | |
| 0.00 | 1.31 | 0.00 | 0.81 | -18.09 | 11.71 | 28.72 | 229.30 | 0.6048 | -630.0 | -465.5 | |
| 0.00 | 1.22 | 0.00 | 0.78 | -27.67 | 4.31 | 21.32 | 210.57 | 0.6355 | -299.0 | -240.2 | |
| 0.00 | 2.36 | 0.00 | 1.52 | -28.03 | 4.23 | 21.25 | 210.17 | 0.6390 | -571.0 | -388.2 | |
| 0.00 | 1.05 | 0.00 | 0.67 | -28.23 | 2.10 | 19.12 | 207.49 | 0.6274 | -694.0 | -515.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
