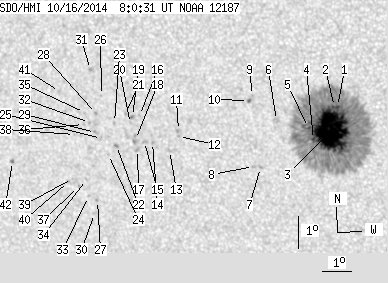

SDO HMI 2014-10-16 08:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 89.56 | 571.61 | 49.40 | 316.85 | -8.95 | 320.26 | -22.18 | 123.62 | 0.4491 | 510.9 | 305.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-16 08:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.57 | 521.28 | 0.86 | 287.43 | -8.16 | 321.13 | -21.31 | 123.06 | 0.4310 | 1271.4 | 400.7 | |
| 1.31 | -1.00 | 0.72 | -1.00 | -8.17 | 321.03 | -21.40 | 122.95 | 0.4323 | 1171.1 | 999999 | |
| 83.88 | -1.00 | 46.24 | -1.00 | -8.91 | 320.89 | -21.55 | 124.21 | 0.4406 | 1350.8 | 999999 | |
| 0.87 | -1.00 | 0.48 | -1.00 | -9.21 | 320.28 | -22.15 | 124.03 | 0.4510 | 865.6 | 999999 | |
| 1.14 | -1.00 | 0.63 | -1.00 | -8.85 | 320.14 | -22.29 | 123.18 | 0.4497 | 763.9 | 999999 | |
| 0.00 | 3.67 | 0.00 | 2.05 | -8.67 | 319.10 | -23.33 | 121.66 | 0.4619 | 649.0 | 372.6 | |
| 0.00 | 1.22 | 0.00 | 0.69 | -10.15 | 318.46 | -23.97 | 123.62 | 0.4823 | 695.0 | 591.2 | |
| 0.00 | 1.05 | 0.00 | 0.59 | -10.13 | 318.23 | -24.20 | 123.33 | 0.4850 | 644.0 | 527.9 | |
| 0.00 | 0.61 | 0.00 | 0.34 | -7.93 | 318.36 | -24.08 | 119.47 | 0.4660 | -896.0 | -724.1 | |
| 0.35 | 1.31 | 0.20 | 0.73 | -8.09 | 318.22 | -24.22 | 119.62 | 0.4692 | -911.8 | -852.0 | |
| 0.00 | 1.40 | 0.00 | 0.80 | -9.12 | 315.80 | -26.64 | 119.12 | 0.5088 | -833.0 | -797.2 | |
| 0.00 | 1.05 | 0.00 | 0.60 | -9.31 | 315.78 | -26.66 | 119.42 | 0.5104 | -806.0 | -685.3 | |
| 0.00 | 1.92 | 0.00 | 1.11 | -9.76 | 315.43 | -27.00 | 119.87 | 0.5181 | -61.0 | -56.9 | |
| 0.00 | 1.14 | 0.00 | 0.66 | -9.53 | 314.87 | -27.56 | 118.99 | 0.5238 | -975.0 | -784.2 | |
| 0.00 | 2.18 | 0.00 | 1.27 | -9.52 | 314.60 | -27.84 | 118.72 | 0.5272 | -811.0 | -692.7 | |
| 0.00 | 0.70 | 0.00 | 0.41 | -8.72 | 314.50 | -27.94 | 117.27 | 0.5231 | -823.0 | -711.2 | |
| 0.00 | 2.27 | 0.00 | 1.33 | -9.78 | 314.34 | -28.10 | 118.92 | 0.5324 | -821.0 | -669.6 | |
| 0.00 | 4.37 | 0.00 | 2.55 | -9.47 | 314.30 | -28.14 | 118.37 | 0.5308 | -482.0 | -730.4 | |
| 0.00 | 1.57 | 0.00 | 0.92 | -8.76 | 314.26 | -28.18 | 117.14 | 0.5266 | -986.0 | -868.3 | |
| 0.00 | 0.70 | 0.00 | 0.41 | -8.98 | 314.17 | -28.27 | 117.44 | 0.5292 | -694.0 | -512.9 | |
| 0.00 | 1.31 | 0.00 | 0.76 | -8.68 | 314.02 | -28.42 | 116.81 | 0.5292 | -733.0 | -643.1 | |
| 0.00 | 1.66 | 0.00 | 0.98 | -9.69 | 313.62 | -28.82 | 118.17 | 0.5411 | -859.0 | -740.5 | |
| 0.00 | 1.22 | 0.00 | 0.72 | -8.98 | 313.62 | -28.82 | 116.98 | 0.5364 | -742.0 | -644.6 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -9.98 | 313.31 | -29.12 | 118.39 | 0.5470 | -411.0 | -329.4 | |
| 0.00 | 1.49 | 0.00 | 0.88 | -9.50 | 313.12 | -29.32 | 117.44 | 0.5463 | -485.0 | -433.4 | |
| 0.00 | 0.61 | 0.00 | 0.36 | -8.16 | 313.24 | -29.20 | 115.30 | 0.5363 | -449.0 | -488.4 | |
| 0.00 | 1.14 | 0.00 | 0.68 | -11.44 | 312.77 | -29.67 | 120.27 | 0.5639 | -745.0 | -629.1 | |
| 0.00 | 1.05 | 0.00 | 0.62 | -8.73 | 313.01 | -29.42 | 116.08 | 0.5427 | -690.0 | -640.5 | |
| 0.00 | 1.49 | 0.00 | 0.88 | -9.32 | 312.92 | -29.51 | 116.99 | 0.5477 | -646.0 | -600.8 | |
| 0.00 | 1.40 | 0.00 | 0.84 | -11.86 | 312.61 | -29.82 | 120.78 | 0.5687 | -601.0 | -556.9 | |
| 0.00 | 1.83 | 0.00 | 1.07 | -7.38 | 312.92 | -29.52 | 113.72 | 0.5359 | -750.0 | -524.7 | |
| 0.00 | 0.96 | 0.00 | 0.57 | -9.02 | 312.74 | -29.69 | 116.36 | 0.5481 | -706.0 | -549.7 | |
| 0.00 | 0.87 | 0.00 | 0.52 | -11.33 | 312.47 | -29.97 | 119.84 | 0.5669 | -568.0 | -460.6 | |
| 0.00 | 1.05 | 0.00 | 0.63 | -10.80 | 312.46 | -29.98 | 119.01 | 0.5634 | -696.0 | -557.2 | |
| 0.00 | 0.70 | 0.00 | 0.41 | -8.72 | 312.60 | -29.84 | 115.74 | 0.5482 | -515.0 | -459.4 | |
| 0.00 | 0.96 | 0.00 | 0.57 | -9.09 | 312.53 | -29.91 | 116.31 | 0.5514 | -600.0 | -444.1 | |
| 0.00 | 1.31 | 0.00 | 0.79 | -11.04 | 312.15 | -30.29 | 119.12 | 0.5689 | -650.0 | -530.5 | |
| 0.00 | 0.26 | 0.00 | 0.16 | -9.42 | 312.18 | -30.26 | 116.57 | 0.5580 | -617.0 | -659.7 | |
| 0.00 | 0.70 | 0.00 | 0.42 | -10.80 | 311.96 | -30.47 | 118.60 | 0.5696 | -588.0 | -506.1 | |
| 0.00 | 1.22 | 0.00 | 0.74 | -10.90 | 311.81 | -30.63 | 118.64 | 0.5722 | -555.0 | -429.8 | |
| 0.00 | 1.49 | 0.00 | 0.88 | -8.11 | 311.77 | -30.66 | 114.13 | 0.5554 | -650.0 | -454.7 | |
| 0.44 | 1.66 | 0.27 | 1.02 | -10.38 | 309.87 | -32.57 | 116.39 | 0.5933 | -751.4 | -638.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
