SDO HMI 2014-10-16 10:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.65 | 359.74 | 38.27 | 247.62 | -21.18 | 16.69 | 35.34 | 231.04 | 0.6961 | 933.0 | 297.1 | |
|
previous
or next observation for the same group /

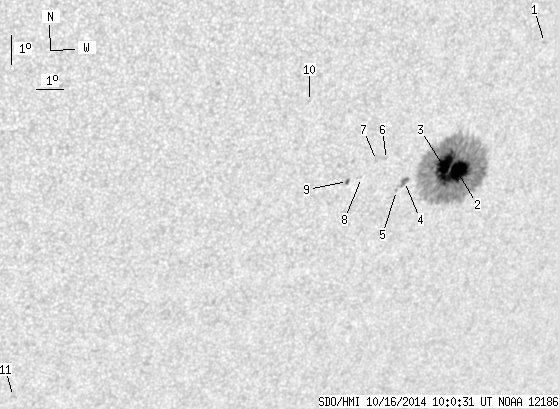

back to the solar disc SDO HMI 2014-10-16 10:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.49 | 0.00 | 1.02 | -17.17 | 19.49 | 38.14 | 237.97 | 0.6984 | 800.0 | 638.4 | |
| 27.60 | 343.75 | 19.10 | 236.96 | -21.24 | 17.10 | 35.75 | 231.29 | 0.7003 | 997.0 | 298.8 | |
| 24.55 | -2.00 | 16.83 | -2.00 | -21.07 | 16.54 | 35.19 | 231.07 | 0.6937 | 1267.7 | 999999 | |
| 2.45 | 6.46 | 1.65 | 4.37 | -21.45 | 15.08 | 33.73 | 229.49 | 0.6822 | 809.4 | 627.7 | |
| 0.00 | 1.05 | 0.00 | 0.71 | -21.74 | 14.84 | 33.50 | 228.96 | 0.6821 | 596.0 | 465.3 | |
| 0.00 | 0.44 | 0.00 | 0.29 | -20.66 | 14.19 | 32.84 | 229.72 | 0.6676 | 626.0 | 635.4 | |
| 0.00 | 1.31 | 0.00 | 0.87 | -20.67 | 13.81 | 32.47 | 229.39 | 0.6639 | 634.0 | 494.8 | |
| 0.00 | 0.44 | 0.00 | 0.29 | -21.21 | 13.37 | 32.03 | 228.36 | 0.6638 | -477.0 | -400.6 | |
| 1.05 | 2.18 | 0.69 | 1.44 | -21.32 | 12.87 | 31.52 | 227.81 | 0.6598 | -585.0 | -516.5 | |
| 0.00 | 0.70 | 0.00 | 0.44 | -18.57 | 10.87 | 29.53 | 229.45 | 0.6171 | -685.0 | -470.9 | |
| 0.00 | 1.92 | 0.00 | 1.23 | -28.24 | 2.12 | 20.78 | 209.45 | 0.6380 | -565.0 | -388.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
