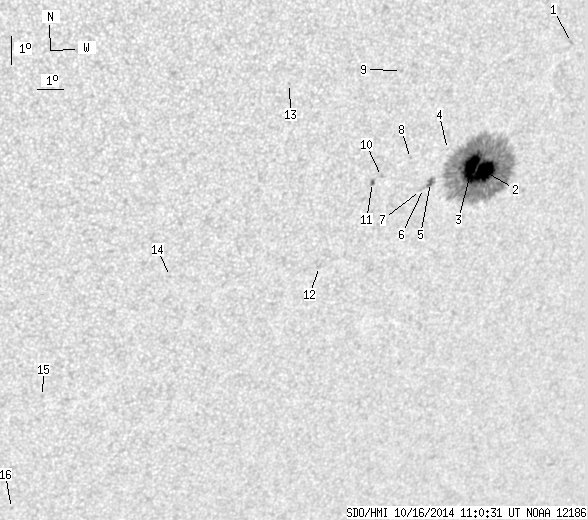

SDO HMI 2014-10-16 11:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.07 | 363.86 | 38.84 | 252.04 | -21.23 | 16.59 | 35.79 | 231.31 | 0.7008 | 845.2 | 293.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-16 11:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.83 | 0.00 | 1.28 | -17.17 | 19.50 | 38.70 | 238.32 | 0.7043 | 785.0 | 618.0 | |
| 27.34 | 341.25 | 19.05 | 236.92 | -21.24 | 17.10 | 36.31 | 231.69 | 0.7056 | 1001.5 | 305.4 | |
| 25.50 | -2.00 | 17.61 | -2.00 | -21.11 | 16.55 | 35.75 | 231.45 | 0.6993 | 1257.5 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.59 | -20.40 | 15.42 | 34.62 | 231.45 | 0.6833 | 619.0 | 528.5 | |
| 2.36 | 6.11 | 1.60 | 4.16 | -21.48 | 15.04 | 34.24 | 229.86 | 0.6873 | 828.3 | 623.2 | |
| 0.00 | 0.96 | 0.00 | 0.65 | -21.67 | 14.82 | 34.02 | 229.46 | 0.6865 | 574.0 | 500.5 | |
| 0.00 | 0.61 | 0.00 | 0.42 | -21.73 | 14.72 | 33.92 | 229.31 | 0.6860 | 537.0 | 462.7 | |
| 0.00 | 0.96 | 0.00 | 0.64 | -20.62 | 14.05 | 33.25 | 230.10 | 0.6712 | 602.0 | 468.9 | |
| 0.00 | 1.05 | 0.00 | 0.67 | -17.67 | 13.05 | 32.25 | 233.01 | 0.6389 | -96.0 | -129.2 | |
| 0.00 | 1.31 | 0.00 | 0.87 | -21.16 | 13.07 | 32.28 | 228.64 | 0.6658 | -511.0 | -450.1 | |
| 0.87 | 2.10 | 0.58 | 1.39 | -21.34 | 12.78 | 31.98 | 228.17 | 0.6643 | -594.5 | -574.8 | |
| 0.00 | 2.71 | 0.00 | 1.81 | -24.11 | 11.47 | 30.67 | 223.81 | 0.6749 | -152.0 | -210.1 | |
| 0.00 | 0.87 | 0.00 | 0.54 | -17.88 | 9.01 | 28.21 | 229.10 | 0.5975 | -696.0 | -528.4 | |
| 0.00 | 0.96 | 0.00 | 0.61 | -24.17 | 5.95 | 25.15 | 218.33 | 0.6274 | -151.0 | -122.3 | |
| 0.00 | 1.31 | 0.00 | 0.84 | -28.22 | 2.15 | 21.36 | 210.12 | 0.6416 | -320.0 | -364.4 | |
| 0.00 | 0.96 | 0.00 | 0.65 | -32.35 | 1.94 | 21.14 | 206.48 | 0.6855 | -425.0 | -355.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
