SDO HMI 2014-10-16 13:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 87.84 | 595.97 | 47.59 | 324.17 | -8.96 | 320.22 | -19.48 | 127.17 | 0.4144 | 411.8 | 292.3 | |
|
previous
or next observation for the same group /

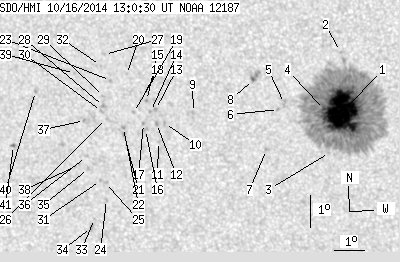

back to the solar disc SDO HMI 2014-10-16 13:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 86.44 | 537.87 | 46.81 | 291.15 | -8.89 | 320.87 | -18.83 | 127.84 | 0.4055 | 1265.0 | 398.8 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -7.05 | 320.90 | -18.80 | 124.08 | 0.3879 | -480.0 | -505.5 | |
| 0.00 | 0.52 | 0.00 | 0.29 | -10.18 | 320.38 | -19.32 | 129.56 | 0.4243 | 330.0 | 312.3 | |
| 0.26 | -1.00 | 0.14 | -1.00 | -8.85 | 320.30 | -19.40 | 126.92 | 0.4124 | 824.3 | 999999 | |
| 0.00 | 3.58 | 0.00 | 1.96 | -8.71 | 319.02 | -20.68 | 124.89 | 0.4275 | 737.0 | 614.6 | |
| 0.00 | 1.31 | 0.00 | 0.72 | -8.90 | 318.81 | -20.89 | 125.00 | 0.4319 | 456.0 | 368.1 | |
| 0.00 | 2.10 | 0.00 | 1.16 | -10.16 | 318.34 | -21.36 | 126.72 | 0.4492 | 640.0 | 515.8 | |
| 0.70 | 6.55 | 0.38 | 3.59 | -8.00 | 318.05 | -21.65 | 122.30 | 0.4340 | -874.2 | -796.3 | |
| 0.00 | 2.01 | 0.00 | 1.13 | -9.10 | 316.02 | -23.68 | 122.03 | 0.4698 | -703.0 | -670.1 | |
| 0.00 | 1.48 | 0.00 | 0.84 | -9.48 | 315.02 | -24.68 | 121.66 | 0.4858 | -938.0 | -786.0 | |
| 0.00 | 1.14 | 0.00 | 0.65 | -10.05 | 314.78 | -24.92 | 122.40 | 0.4934 | -721.0 | -672.1 | |
| 0.00 | 1.83 | 0.00 | 1.04 | -9.49 | 314.76 | -24.95 | 121.40 | 0.4893 | -889.0 | -776.4 | |
| 0.00 | 1.31 | 0.00 | 0.74 | -9.06 | 314.76 | -24.94 | 120.63 | 0.4860 | -874.0 | -745.0 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -9.13 | 314.58 | -25.12 | 120.58 | 0.4888 | -893.0 | -763.4 | |
| 0.00 | 1.05 | 0.00 | 0.59 | -8.79 | 314.47 | -25.23 | 119.87 | 0.4877 | -989.0 | -840.1 | |
| 0.00 | 2.36 | 0.00 | 1.34 | -9.69 | 314.37 | -25.33 | 121.36 | 0.4959 | -839.0 | -708.2 | |
| 0.00 | 1.14 | 0.00 | 0.65 | -9.51 | 314.32 | -25.38 | 120.99 | 0.4951 | -857.0 | -768.2 | |
| 0.00 | 0.44 | 0.00 | 0.25 | -8.74 | 314.31 | -25.39 | 119.61 | 0.4894 | -706.0 | -660.2 | |
| 0.00 | 1.40 | 0.00 | 0.80 | -9.18 | 314.01 | -25.69 | 120.11 | 0.4967 | -798.0 | -655.8 | |
| 0.00 | 0.70 | 0.00 | 0.40 | -8.02 | 313.86 | -25.84 | 117.88 | 0.4903 | -744.0 | -609.0 | |
| 0.00 | 1.66 | 0.00 | 0.95 | -9.88 | 313.65 | -26.05 | 120.96 | 0.5066 | -799.0 | -684.6 | |
| 0.00 | 1.57 | 0.00 | 0.90 | -9.67 | 313.63 | -26.07 | 120.58 | 0.5052 | -870.0 | -738.0 | |
| 0.00 | 1.05 | 0.00 | 0.60 | -8.23 | 313.31 | -26.39 | 117.75 | 0.4991 | -677.0 | -572.9 | |
| 0.00 | 1.31 | 0.00 | 0.77 | -11.94 | 312.83 | -26.87 | 123.58 | 0.5328 | -509.0 | -489.3 | |
| 0.00 | 1.40 | 0.00 | 0.81 | -11.41 | 312.85 | -26.85 | 122.74 | 0.5284 | -813.0 | -653.4 | |
| 0.00 | 0.70 | 0.00 | 0.40 | -9.41 | 313.04 | -26.66 | 119.58 | 0.5110 | -500.0 | -554.1 | |
| 0.00 | 0.87 | 0.00 | 0.50 | -7.44 | 313.16 | -26.54 | 116.18 | 0.4957 | -550.0 | -455.5 | |
| 0.00 | 1.75 | 0.00 | 1.00 | -9.04 | 313.01 | -26.69 | 118.91 | 0.5088 | -859.0 | -763.1 | |
| 0.00 | 1.31 | 0.00 | 0.75 | -8.73 | 313.03 | -26.67 | 118.39 | 0.5063 | -843.0 | -602.6 | |
| 0.00 | 1.75 | 0.00 | 1.00 | -9.20 | 312.93 | -26.77 | 119.11 | 0.5110 | -690.0 | -596.8 | |
| 0.00 | 1.05 | 0.00 | 0.61 | -11.36 | 312.69 | -27.01 | 122.50 | 0.5300 | -670.0 | -560.0 | |
| 0.00 | 0.35 | 0.00 | 0.20 | -7.78 | 313.00 | -26.70 | 116.67 | 0.5002 | -612.0 | -565.8 | |
| 0.00 | 0.61 | 0.00 | 0.36 | -12.56 | 312.35 | -27.35 | 124.09 | 0.5436 | -581.0 | -478.3 | |
| 0.00 | 2.88 | 0.00 | 1.70 | -12.85 | 312.21 | -27.49 | 124.40 | 0.5476 | -772.0 | -652.6 | |
| 0.00 | 1.40 | 0.00 | 0.82 | -11.00 | 312.31 | -27.39 | 121.56 | 0.5320 | -638.0 | -541.1 | |
| 0.00 | 1.48 | 0.00 | 0.87 | -10.63 | 312.28 | -27.42 | 120.92 | 0.5296 | -682.0 | -572.1 | |
| 0.00 | 1.22 | 0.00 | 0.71 | -9.51 | 312.32 | -27.38 | 119.09 | 0.5211 | -699.0 | -629.8 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -10.96 | 311.87 | -27.83 | 121.08 | 0.5373 | -599.0 | -467.3 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -8.07 | 312.10 | -27.60 | 116.40 | 0.5142 | -697.0 | -570.8 | |
| 0.00 | 1.22 | 0.00 | 0.72 | -8.69 | 310.71 | -28.99 | 116.33 | 0.5367 | -667.0 | -501.6 | |
| 0.44 | 1.83 | 0.26 | 1.09 | -10.41 | 309.77 | -29.93 | 118.40 | 0.5600 | -703.2 | -608.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
