SDO HMI 2014-10-16 17:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.64 | 350.93 | 39.65 | 254.43 | -21.10 | 16.65 | 39.15 | 233.82 | 0.7321 | 884.6 | 277.0 | |
|
previous
or next observation for the same group /

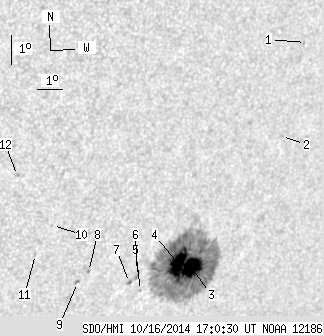

back to the solar disc SDO HMI 2014-10-16 17:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.61 | 0.00 | 0.44 | -14.13 | 19.84 | 42.34 | 244.26 | 0.7274 | 441.0 | 433.1 | |
| 0.00 | 1.31 | 0.00 | 0.96 | -17.11 | 19.58 | 42.08 | 240.39 | 0.7391 | 536.0 | 386.7 | |
| 27.23 | 337.93 | 19.87 | 245.40 | -21.22 | 17.04 | 39.54 | 233.93 | 0.7366 | 970.0 | 284.8 | |
| 27.06 | -3.00 | 19.53 | -3.00 | -21.05 | 16.45 | 38.95 | 233.75 | 0.7298 | 1242.0 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.69 | -21.86 | 15.14 | 37.64 | 231.91 | 0.7225 | 683.0 | 464.0 | |
| 0.00 | 2.53 | 0.00 | 1.79 | -21.37 | 14.87 | 37.37 | 232.30 | 0.7168 | 823.0 | 650.8 | |
| 0.35 | 1.83 | 0.25 | 1.29 | -21.56 | 14.60 | 37.10 | 231.89 | 0.7154 | 698.5 | 594.7 | |
| 0.00 | 1.22 | 0.00 | 0.84 | -21.08 | 12.83 | 35.33 | 231.17 | 0.6950 | -523.0 | -458.8 | |
| 0.00 | 1.66 | 0.00 | 1.14 | -21.42 | 12.49 | 34.99 | 230.51 | 0.6941 | -777.0 | -531.4 | |
| 0.00 | 0.79 | 0.00 | 0.52 | -19.45 | 11.02 | 33.52 | 231.78 | 0.6652 | -558.0 | -446.1 | |
| 0.00 | 0.87 | 0.00 | 0.58 | -20.38 | 10.60 | 33.10 | 230.28 | 0.6678 | -629.0 | -475.1 | |
| 0.00 | 1.22 | 0.00 | 0.78 | -17.72 | 9.34 | 31.84 | 232.61 | 0.6347 | -477.0 | -449.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
