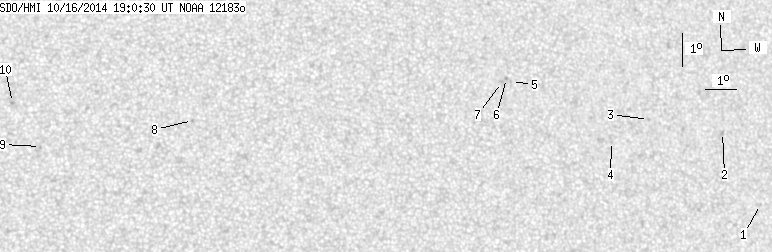

SDO HMI 2014-10-16 19:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.73 | 0.00 | 5.76 | 14.90 | 355.76 | 19.37 | 302.21 | 0.3686 | -245.6 | -240.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-16 19:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.70 | 0.00 | 0.40 | 11.87 | 5.76 | 29.37 | 283.92 | 0.4965 | -658.0 | -580.4 | |
| 0.00 | 1.40 | 0.00 | 0.79 | 14.09 | 4.72 | 28.32 | 288.78 | 0.4881 | -774.0 | -629.2 | |
| 0.00 | 1.13 | 0.00 | 0.63 | 14.60 | 2.22 | 25.83 | 291.18 | 0.4540 | -719.0 | -571.8 | |
| 0.00 | 0.70 | 0.00 | 0.38 | 13.99 | 0.88 | 24.49 | 290.68 | 0.4318 | -510.0 | -446.1 | |
| 0.00 | 0.52 | 0.00 | 0.28 | 15.93 | 357.75 | 21.35 | 297.62 | 0.3969 | -725.0 | -585.5 | |
| 0.00 | 1.31 | 0.00 | 0.71 | 16.03 | 357.59 | 21.20 | 298.00 | 0.3953 | -799.0 | -699.0 | |
| 0.00 | 1.66 | 0.00 | 0.89 | 15.92 | 357.41 | 21.02 | 297.91 | 0.3920 | -784.0 | -722.3 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 15.04 | 347.36 | 10.97 | 311.59 | 0.2468 | 752.0 | 545.0 | |
| 0.00 | 0.87 | 0.00 | 0.44 | 14.33 | 342.58 | 6.19 | 325.07 | 0.1833 | 871.0 | 706.5 | |
| 0.00 | 1.48 | 0.00 | 0.75 | 15.67 | 341.75 | 5.36 | 332.47 | 0.1954 | 890.0 | 801.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
