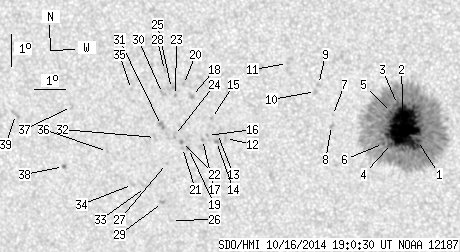

SDO HMI 2014-10-16 19:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 91.72 | 605.59 | 48.79 | 323.48 | -8.88 | 320.11 | -16.28 | 132.18 | 0.3744 | 582.5 | 304.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-16 19:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.05 | 547.71 | 0.56 | 291.24 | -9.25 | 321.28 | -15.11 | 134.81 | 0.3642 | 1235.7 | 421.6 | |
| 85.52 | -1.00 | 45.47 | -1.00 | -8.86 | 320.86 | -15.53 | 133.24 | 0.3647 | 1442.3 | 999999 | |
| 1.40 | -1.00 | 0.74 | -1.00 | -8.15 | 320.71 | -15.69 | 131.49 | 0.3589 | 1117.0 | 999999 | |
| 2.27 | -1.00 | 1.21 | -1.00 | -9.36 | 320.46 | -15.93 | 133.51 | 0.3751 | 969.2 | 999999 | |
| 0.26 | -1.00 | 0.14 | -1.00 | -8.40 | 320.51 | -15.89 | 131.66 | 0.3641 | 1100.7 | 999999 | |
| 0.70 | -1.00 | 0.37 | -1.00 | -9.37 | 320.21 | -16.18 | 133.07 | 0.3781 | 651.9 | 999999 | |
| 0.00 | 0.44 | 0.00 | 0.23 | -8.55 | 318.64 | -17.76 | 128.80 | 0.3886 | 630.0 | 496.8 | |
| 0.00 | 2.01 | 0.00 | 1.08 | -8.86 | 318.59 | -17.80 | 129.35 | 0.3924 | 627.0 | 538.5 | |
| 0.00 | 2.36 | 0.00 | 1.26 | -7.61 | 318.24 | -18.16 | 126.23 | 0.3846 | -611.0 | -500.3 | |
| 0.00 | 2.27 | 0.00 | 1.22 | -7.83 | 318.13 | -18.26 | 126.53 | 0.3880 | -853.0 | -631.7 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -6.99 | 317.28 | -19.11 | 123.52 | 0.3916 | 766.0 | 614.4 | |
| 0.00 | 1.57 | 0.00 | 0.87 | -9.38 | 315.15 | -21.24 | 125.44 | 0.4406 | -875.0 | -740.3 | |
| 0.00 | 1.83 | 0.00 | 1.01 | -9.23 | 314.90 | -21.49 | 124.85 | 0.4425 | -856.0 | -771.3 | |
| 0.00 | 1.83 | 0.00 | 1.01 | -9.48 | 314.85 | -21.54 | 125.26 | 0.4453 | -1056.0 | -904.9 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -8.77 | 314.74 | -21.66 | 123.78 | 0.4406 | -919.0 | -715.6 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -9.30 | 314.57 | -21.82 | 124.58 | 0.4474 | -972.0 | -852.1 | |
| 0.00 | 1.05 | 0.00 | 0.58 | -9.43 | 314.40 | -21.99 | 124.61 | 0.4507 | -933.0 | -803.1 | |
| 0.00 | 3.23 | 0.00 | 1.78 | -8.12 | 314.13 | -22.27 | 121.79 | 0.4432 | -906.0 | -765.4 | |
| 0.00 | 1.66 | 0.00 | 0.92 | -9.73 | 313.92 | -22.47 | 124.57 | 0.4594 | -776.0 | -706.6 | |
| 0.00 | 1.40 | 0.00 | 0.77 | -7.76 | 313.89 | -22.51 | 120.81 | 0.4435 | -937.0 | -739.4 | |
| 0.00 | 0.79 | 0.00 | 0.44 | -9.71 | 313.73 | -22.67 | 124.30 | 0.4617 | -543.0 | -480.8 | |
| 0.00 | 1.83 | 0.00 | 1.02 | -9.55 | 313.70 | -22.69 | 123.99 | 0.4607 | -842.0 | -713.8 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -8.11 | 313.60 | -22.79 | 121.17 | 0.4501 | -886.0 | -789.3 | |
| 0.00 | 2.53 | 0.00 | 1.41 | -9.35 | 313.49 | -22.91 | 123.36 | 0.4617 | -712.0 | -694.7 | |
| 0.00 | 3.05 | 0.00 | 1.69 | -7.90 | 313.49 | -22.91 | 120.63 | 0.4500 | -682.0 | -684.8 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -12.00 | 313.17 | -23.22 | 127.61 | 0.4889 | -580.0 | -526.3 | |
| 0.00 | 1.05 | 0.00 | 0.59 | -10.23 | 313.16 | -23.24 | 124.56 | 0.4734 | -735.0 | -540.6 | |
| 0.00 | 1.22 | 0.00 | 0.68 | -7.35 | 313.29 | -23.11 | 119.36 | 0.4484 | -849.0 | -641.4 | |
| 0.00 | 1.66 | 0.00 | 0.94 | -11.45 | 312.92 | -23.47 | 126.40 | 0.4870 | -805.0 | -648.9 | |
| 0.00 | 2.88 | 0.00 | 1.60 | -8.06 | 313.18 | -23.21 | 120.61 | 0.4554 | -737.0 | -643.8 | |
| 0.00 | 3.93 | 0.00 | 2.19 | -9.05 | 313.08 | -23.31 | 122.36 | 0.4646 | -915.0 | -833.2 | |
| 0.00 | 2.79 | 0.00 | 1.57 | -9.43 | 312.86 | -23.54 | 122.80 | 0.4706 | -568.0 | -526.5 | |
| 0.00 | 0.35 | 0.00 | 0.20 | -11.00 | 312.40 | -24.00 | 125.04 | 0.4896 | -634.0 | -596.5 | |
| 0.00 | 2.18 | 0.00 | 1.24 | -10.93 | 311.97 | -24.43 | 124.44 | 0.4943 | -584.0 | -429.9 | |
| 0.00 | 1.05 | 0.00 | 0.59 | -7.98 | 312.16 | -24.23 | 119.38 | 0.4684 | -731.0 | -555.4 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -9.93 | 311.22 | -25.18 | 121.93 | 0.4958 | -687.0 | -514.8 | |
| 0.00 | 2.09 | 0.00 | 1.20 | -8.59 | 310.12 | -26.28 | 118.50 | 0.5002 | -578.0 | -449.9 | |
| 0.52 | 1.48 | 0.30 | 0.86 | -10.47 | 309.68 | -26.71 | 121.32 | 0.5195 | -883.7 | -718.0 | |
| 0.00 | 3.93 | 0.00 | 2.29 | -8.93 | 308.18 | -28.21 | 117.38 | 0.5280 | -728.0 | -557.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
