SDO HMI 2014-10-16 21:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.81 | 331.11 | 41.12 | 248.23 | -21.17 | 16.55 | 41.27 | 235.06 | 0.7526 | 895.7 | 301.2 | |
|
previous
or next observation for the same group /

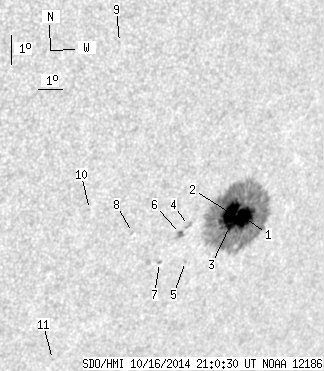

back to the solar disc SDO HMI 2014-10-16 21:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.01 | 316.81 | 19.63 | 237.95 | -21.20 | 16.99 | 41.70 | 235.28 | 0.7569 | 936.1 | 308.9 | |
| 22.34 | -1.00 | 16.67 | -1.00 | -21.03 | 16.37 | 41.09 | 235.12 | 0.7501 | 1280.1 | 999999 | |
| 5.15 | -1.00 | 3.87 | -1.00 | -21.47 | 16.48 | 41.19 | 234.67 | 0.7535 | 925.2 | 999999 | |
| 0.00 | 3.14 | 0.00 | 2.29 | -21.31 | 14.70 | 39.41 | 233.74 | 0.7358 | 786.0 | 611.8 | |
| 0.00 | 1.13 | 0.00 | 0.84 | -22.53 | 14.98 | 39.69 | 232.50 | 0.7458 | 456.0 | 412.7 | |
| 1.31 | 4.54 | 0.95 | 3.30 | -21.56 | 14.44 | 39.16 | 233.29 | 0.7349 | 712.2 | 458.4 | |
| 0.00 | 1.22 | 0.00 | 0.89 | -22.49 | 13.88 | 38.59 | 231.82 | 0.7354 | -498.0 | -467.3 | |
| 0.00 | 1.48 | 0.00 | 1.05 | -21.39 | 12.43 | 37.14 | 232.12 | 0.7146 | -215.0 | -250.4 | |
| 0.00 | 0.96 | 0.00 | 0.63 | -15.08 | 10.40 | 35.11 | 238.67 | 0.6525 | -675.0 | -547.9 | |
| 0.00 | 0.96 | 0.00 | 0.65 | -20.50 | 10.47 | 35.18 | 231.76 | 0.6894 | -386.0 | -406.7 | |
| 0.00 | 0.87 | 0.00 | 0.63 | -25.59 | 10.52 | 35.23 | 225.94 | 0.7265 | -341.0 | -383.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
