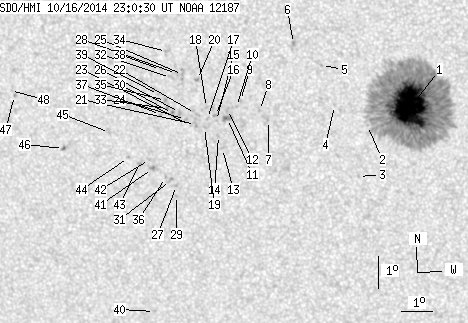

SDO HMI 2014-10-16 23:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 83.02 | 639.06 | 43.71 | 337.97 | -8.95 | 320.05 | -14.14 | 136.43 | 0.3501 | 361.2 | 301.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-16 23:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 82.58 | 565.56 | 43.46 | 297.62 | -8.87 | 320.90 | -13.29 | 137.73 | 0.3390 | 1442.2 | 441.2 | |
| 0.00 | 0.70 | 0.00 | 0.37 | -9.49 | 319.53 | -14.65 | 136.14 | 0.3617 | 510.0 | 415.9 | |
| 0.00 | 0.70 | 0.00 | 0.37 | -11.08 | 319.17 | -15.02 | 138.39 | 0.3845 | 714.0 | 604.2 | |
| 0.00 | 1.13 | 0.00 | 0.60 | -8.89 | 318.52 | -15.66 | 133.06 | 0.3666 | 603.0 | 402.8 | |
| 0.00 | 0.96 | 0.00 | 0.51 | -7.67 | 318.17 | -16.02 | 129.86 | 0.3578 | -652.0 | -504.9 | |
| 0.00 | 2.27 | 0.00 | 1.21 | -7.02 | 317.31 | -16.87 | 126.98 | 0.3621 | 959.0 | 768.5 | |
| 0.00 | 0.44 | 0.00 | 0.24 | -9.42 | 316.41 | -17.77 | 130.48 | 0.3976 | -804.0 | -677.6 | |
| 0.00 | 0.87 | 0.00 | 0.47 | -9.12 | 316.14 | -18.04 | 129.46 | 0.3979 | -879.0 | -723.3 | |
| 0.00 | 0.70 | 0.00 | 0.38 | -8.83 | 315.55 | -18.63 | 127.99 | 0.4023 | -232.0 | -217.9 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -9.02 | 315.41 | -18.77 | 128.15 | 0.4059 | -894.0 | -658.8 | |
| 0.00 | 5.15 | 0.00 | 2.80 | -9.40 | 315.10 | -19.08 | 128.43 | 0.4135 | -874.0 | -854.4 | |
| 0.00 | 2.01 | 0.00 | 1.09 | -9.12 | 315.12 | -19.07 | 127.92 | 0.4106 | -830.0 | -756.9 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -10.33 | 314.88 | -19.30 | 129.87 | 0.4255 | -643.0 | -384.0 | |
| 0.00 | 1.66 | 0.00 | 0.91 | -9.93 | 314.78 | -19.40 | 128.98 | 0.4228 | -511.0 | -459.2 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -9.47 | 314.74 | -19.44 | 128.06 | 0.4187 | -818.0 | -650.2 | |
| 0.00 | 1.31 | 0.00 | 0.71 | -9.32 | 314.72 | -19.46 | 127.73 | 0.4175 | -929.0 | -770.5 | |
| 0.00 | 1.40 | 0.00 | 0.76 | -9.42 | 314.46 | -19.73 | 127.55 | 0.4218 | -896.0 | -739.7 | |
| 0.00 | 0.96 | 0.00 | 0.52 | -9.08 | 314.45 | -19.74 | 126.88 | 0.4187 | -784.0 | -615.1 | |
| 0.00 | 1.22 | 0.00 | 0.67 | -9.70 | 314.34 | -19.84 | 127.92 | 0.4259 | -656.0 | -611.1 | |
| 0.00 | 2.01 | 0.00 | 1.09 | -8.22 | 314.21 | -19.98 | 124.86 | 0.4139 | -1011.0 | -798.8 | |
| 0.00 | 2.10 | 0.00 | 1.15 | -9.62 | 314.06 | -20.13 | 127.37 | 0.4287 | -747.0 | -623.7 | |
| 0.00 | 3.32 | 0.00 | 1.81 | -9.28 | 314.08 | -20.10 | 126.75 | 0.4252 | -650.0 | -672.6 | |
| 0.00 | 0.26 | 0.00 | 0.14 | -9.65 | 313.89 | -20.29 | 127.21 | 0.4311 | -404.0 | -404.0 | |
| 0.00 | 1.31 | 0.00 | 0.72 | -9.47 | 313.74 | -20.44 | 126.67 | 0.4313 | -814.0 | -719.1 | |
| 0.00 | 4.19 | 0.00 | 2.28 | -8.09 | 313.73 | -20.45 | 123.96 | 0.4189 | -936.0 | -789.6 | |
| 0.00 | 2.27 | 0.00 | 1.25 | -9.26 | 313.56 | -20.62 | 126.03 | 0.4316 | -936.0 | -761.8 | |
| 0.00 | 1.13 | 0.00 | 0.63 | -11.54 | 313.30 | -20.88 | 129.79 | 0.4564 | -849.0 | -720.3 | |
| 0.00 | 1.83 | 0.00 | 1.00 | -8.06 | 313.54 | -20.65 | 123.66 | 0.4212 | -816.0 | -737.8 | |
| 0.00 | 1.13 | 0.00 | 0.63 | -11.86 | 313.28 | -20.91 | 130.29 | 0.4598 | -631.0 | -536.1 | |
| 0.00 | 2.10 | 0.00 | 1.15 | -9.30 | 313.33 | -20.85 | 125.80 | 0.4349 | -876.0 | -743.9 | |
| 0.00 | 2.44 | 0.00 | 1.36 | -11.39 | 313.12 | -21.06 | 129.29 | 0.4571 | -828.0 | -732.2 | |
| 0.00 | 2.18 | 0.00 | 1.19 | -8.19 | 313.34 | -20.85 | 123.66 | 0.4250 | -797.0 | -610.0 | |
| 0.00 | 1.31 | 0.00 | 0.72 | -9.15 | 313.18 | -21.00 | 125.32 | 0.4355 | -864.0 | -737.6 | |
| 0.00 | 1.48 | 0.00 | 0.81 | -7.40 | 313.25 | -20.93 | 121.95 | 0.4193 | -777.0 | -678.2 | |
| 0.00 | 1.92 | 0.00 | 1.05 | -8.91 | 313.13 | -21.05 | 124.79 | 0.4339 | -988.0 | -779.4 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -11.30 | 312.96 | -21.22 | 128.93 | 0.4582 | -832.0 | -687.0 | |
| 0.00 | 1.48 | 0.00 | 0.82 | -9.35 | 312.94 | -21.24 | 125.38 | 0.4403 | -693.0 | -483.3 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -7.96 | 313.03 | -21.16 | 122.80 | 0.4271 | -647.0 | -536.4 | |
| 0.00 | 1.22 | 0.00 | 0.67 | -8.73 | 312.92 | -21.27 | 124.17 | 0.4352 | -666.0 | -481.1 | |
| 0.00 | 1.48 | 0.00 | 0.85 | -15.57 | 312.19 | -22.00 | 134.67 | 0.5094 | -694.0 | -498.8 | |
| 0.00 | 2.53 | 0.00 | 1.41 | -11.04 | 312.56 | -21.63 | 127.94 | 0.4606 | -873.0 | -722.2 | |
| 0.00 | 1.40 | 0.00 | 0.78 | -10.76 | 312.48 | -21.70 | 127.36 | 0.4589 | -708.0 | -487.5 | |
| 0.00 | 2.01 | 0.00 | 1.12 | -10.90 | 312.14 | -22.04 | 127.17 | 0.4644 | -707.0 | -564.7 | |
| 0.00 | 1.05 | 0.00 | 0.59 | -10.72 | 311.80 | -22.39 | 126.43 | 0.4671 | -657.0 | -521.4 | |
| 0.00 | 1.05 | 0.00 | 0.59 | -9.97 | 311.23 | -22.96 | 124.42 | 0.4676 | -699.0 | -575.6 | |
| 0.44 | 2.36 | 0.25 | 1.34 | -10.53 | 309.66 | -24.53 | 123.64 | 0.4922 | -844.4 | -570.6 | |
| 0.00 | 1.40 | 0.00 | 0.80 | -8.95 | 308.14 | -26.04 | 119.35 | 0.4996 | -724.0 | -670.8 | |
| 0.00 | 0.52 | 0.00 | 0.30 | -8.81 | 308.02 | -26.17 | 118.97 | 0.5001 | -414.0 | -474.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
