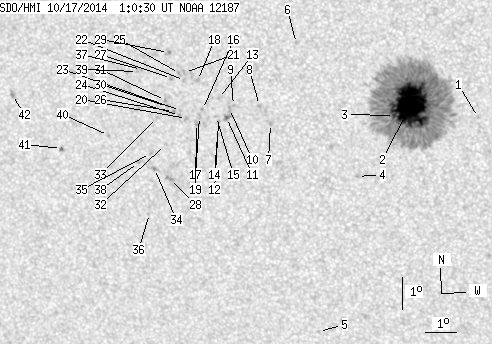

SDO HMI 2014-10-17 01:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 95.26 | 615.52 | 49.94 | 323.72 | -8.90 | 320.13 | -12.95 | 138.83 | 0.3363 | 443.0 | 299.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-17 01:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.40 | 0.00 | 0.73 | -9.18 | 322.96 | -10.12 | 145.90 | 0.3107 | -682.0 | -388.1 | |
| 92.29 | 552.33 | 48.34 | 289.33 | -8.82 | 320.88 | -12.20 | 140.04 | 0.3267 | 1429.8 | 432.0 | |
| 1.75 | -2.00 | 0.92 | -2.00 | -9.17 | 320.37 | -12.71 | 139.58 | 0.3365 | 946.2 | 999999 | |
| 0.00 | 1.66 | 0.00 | 0.89 | -11.10 | 319.13 | -13.95 | 140.49 | 0.3734 | 697.0 | 478.5 | |
| 0.00 | 1.05 | 0.00 | 0.58 | -16.04 | 317.57 | -15.51 | 145.04 | 0.4505 | -811.0 | -588.2 | |
| 0.00 | 0.96 | 0.00 | 0.51 | -7.03 | 317.40 | -15.68 | 129.02 | 0.3468 | 848.0 | 647.0 | |
| 0.00 | 1.57 | 0.00 | 0.84 | -9.52 | 316.47 | -16.61 | 132.59 | 0.3846 | -888.0 | -712.8 | |
| 0.00 | 1.40 | 0.00 | 0.75 | -8.97 | 316.15 | -16.93 | 130.97 | 0.3826 | -904.0 | -701.7 | |
| 0.00 | 0.87 | 0.00 | 0.47 | -8.99 | 315.33 | -17.75 | 129.66 | 0.3929 | -935.0 | -713.8 | |
| 0.00 | 2.44 | 0.00 | 1.32 | -9.09 | 315.19 | -17.89 | 129.65 | 0.3956 | -927.0 | -817.0 | |
| 0.70 | 3.75 | 0.38 | 2.03 | -9.37 | 315.08 | -18.00 | 130.02 | 0.3998 | -1033.0 | -841.8 | |
| 0.00 | 0.96 | 0.00 | 0.52 | -9.50 | 314.82 | -18.26 | 129.87 | 0.4043 | -890.0 | -757.8 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -8.79 | 314.86 | -18.22 | 128.53 | 0.3967 | -915.0 | -742.2 | |
| 0.00 | 0.87 | 0.00 | 0.47 | -9.91 | 314.77 | -18.32 | 130.55 | 0.4092 | -645.0 | -492.3 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -9.35 | 314.77 | -18.32 | 129.49 | 0.4035 | -907.0 | -772.5 | |
| 0.00 | 0.87 | 0.00 | 0.47 | -9.15 | 314.33 | -18.75 | 128.43 | 0.4069 | -916.0 | -795.4 | |
| 0.00 | 2.27 | 0.00 | 1.23 | -9.37 | 314.22 | -18.86 | 128.69 | 0.4104 | -778.0 | -727.0 | |
| 0.00 | 2.01 | 0.00 | 1.08 | -8.26 | 314.22 | -18.86 | 126.49 | 0.3997 | -859.0 | -687.1 | |
| 0.00 | 3.41 | 0.00 | 1.85 | -9.59 | 314.11 | -18.97 | 128.95 | 0.4139 | -696.0 | -611.8 | |
| 0.00 | 2.18 | 0.00 | 1.19 | -9.44 | 313.80 | -19.28 | 128.22 | 0.4164 | -884.0 | -637.0 | |
| 0.00 | 1.83 | 0.00 | 0.99 | -8.03 | 313.82 | -19.27 | 125.44 | 0.4027 | -808.0 | -745.2 | |
| 0.00 | 1.57 | 0.00 | 0.85 | -8.27 | 313.80 | -19.28 | 125.92 | 0.4052 | -780.0 | -779.7 | |
| 0.00 | 0.61 | 0.00 | 0.33 | -9.20 | 313.62 | -19.46 | 127.50 | 0.4163 | -921.0 | -842.3 | |
| 0.00 | 0.96 | 0.00 | 0.52 | -9.36 | 313.58 | -19.50 | 127.74 | 0.4183 | -873.0 | -756.3 | |
| 0.00 | 1.83 | 0.00 | 0.99 | -8.06 | 313.65 | -19.43 | 125.28 | 0.4052 | -711.0 | -740.3 | |
| 0.00 | 1.57 | 0.00 | 0.86 | -9.24 | 313.39 | -19.69 | 127.25 | 0.4195 | -927.0 | -740.3 | |
| 0.00 | 1.66 | 0.00 | 0.90 | -8.22 | 313.39 | -19.69 | 125.24 | 0.4101 | -857.0 | -706.5 | |
| 0.00 | 3.14 | 0.00 | 1.73 | -11.33 | 313.13 | -19.96 | 130.70 | 0.4432 | -831.0 | -780.4 | |
| 0.00 | 2.36 | 0.00 | 1.28 | -7.43 | 313.33 | -19.75 | 123.53 | 0.4037 | -929.0 | -765.1 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -9.09 | 313.21 | -19.87 | 126.71 | 0.4204 | -940.0 | -820.0 | |
| 0.00 | 1.31 | 0.00 | 0.71 | -8.91 | 313.16 | -19.92 | 126.28 | 0.4194 | -910.0 | -769.0 | |
| 0.00 | 1.66 | 0.00 | 0.91 | -10.28 | 313.07 | -20.01 | 128.73 | 0.4335 | -619.0 | -437.3 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -9.45 | 312.87 | -20.21 | 126.90 | 0.4281 | -624.0 | -534.4 | |
| 0.00 | 2.79 | 0.00 | 1.54 | -11.04 | 312.66 | -20.42 | 129.53 | 0.4459 | -926.0 | -705.8 | |
| 0.00 | 1.22 | 0.00 | 0.67 | -10.57 | 312.56 | -20.52 | 128.57 | 0.4425 | -745.0 | -678.8 | |
| 0.00 | 0.52 | 0.00 | 0.29 | -12.45 | 312.38 | -20.70 | 131.57 | 0.4632 | -395.0 | -344.5 | |
| 0.00 | 0.96 | 0.00 | 0.52 | -7.98 | 312.44 | -20.65 | 123.48 | 0.4204 | -758.0 | -688.9 | |
| 0.00 | 1.40 | 0.00 | 0.77 | -10.87 | 312.15 | -20.93 | 128.54 | 0.4504 | -660.0 | -555.7 | |
| 0.00 | 0.70 | 0.00 | 0.38 | -8.05 | 312.30 | -20.78 | 123.44 | 0.4227 | -822.0 | -749.6 | |
| 0.00 | 1.31 | 0.00 | 0.73 | -10.06 | 311.23 | -21.85 | 125.91 | 0.4543 | -725.0 | -538.6 | |
| 0.52 | 1.57 | 0.30 | 0.89 | -10.53 | 309.65 | -23.43 | 124.84 | 0.4783 | -790.8 | -670.7 | |
| 0.00 | 2.44 | 0.00 | 1.38 | -8.92 | 308.15 | -24.94 | 120.35 | 0.4847 | -837.0 | -665.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
