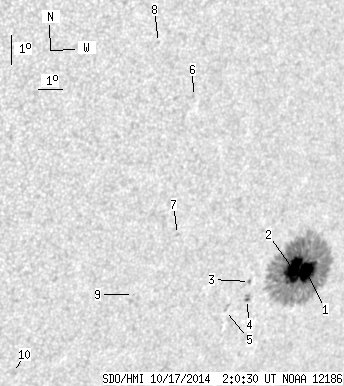

SDO HMI 2014-10-17 02:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.43 | 324.21 | 40.39 | 253.94 | -21.15 | 16.42 | 43.89 | 236.60 | 0.7767 | 817.7 | 274.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-17 02:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.84 | 311.47 | 18.85 | 244.71 | -21.22 | 16.94 | 44.41 | 236.81 | 0.7818 | 858.5 | 287.9 | |
| 26.37 | -1.00 | 20.60 | -1.00 | -21.11 | 16.31 | 43.78 | 236.60 | 0.7755 | 1170.3 | 999999 | |
| 0.35 | 1.48 | 0.27 | 1.13 | -21.37 | 14.48 | 41.94 | 235.25 | 0.7599 | 536.5 | 537.1 | |
| 0.87 | 3.75 | 0.67 | 2.87 | -21.98 | 14.56 | 42.03 | 234.60 | 0.7640 | 439.1 | 462.8 | |
| 0.00 | 1.22 | 0.00 | 0.93 | -22.29 | 13.77 | 41.23 | 233.76 | 0.7585 | -103.0 | -215.3 | |
| 0.00 | 1.14 | 0.00 | 0.77 | -15.08 | 10.43 | 37.90 | 240.53 | 0.6836 | -616.0 | -490.0 | |
| 0.00 | 0.96 | 0.00 | 0.68 | -19.57 | 10.89 | 38.36 | 235.15 | 0.7149 | -348.0 | -392.0 | |
| 0.00 | 1.14 | 0.00 | 0.74 | -13.26 | 8.73 | 36.20 | 241.90 | 0.6539 | -717.0 | -564.7 | |
| 0.00 | 0.26 | 0.00 | 0.19 | -21.48 | 9.66 | 37.13 | 232.02 | 0.7150 | -513.0 | -476.7 | |
| 0.00 | 2.79 | 0.00 | 1.92 | -23.86 | 5.60 | 33.07 | 226.17 | 0.6941 | -220.0 | -282.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
