SDO HMI 2014-10-17 02:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 92.65 | 582.16 | 48.47 | 305.48 | -8.89 | 320.14 | -12.40 | 140.10 | 0.3303 | 517.8 | 326.2 | |
|
previous
or next observation for the same group /

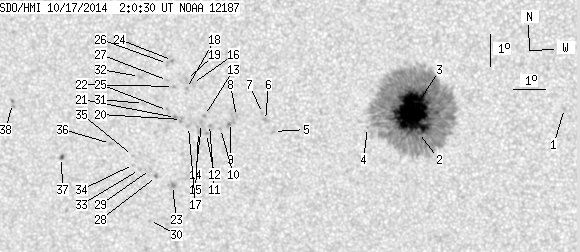

back to the solar disc SDO HMI 2014-10-17 02:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.57 | 0.00 | 0.81 | -8.65 | 325.55 | -6.98 | 154.13 | 0.2767 | 468.0 | 485.4 | |
| 0.26 | 523.57 | 0.14 | 273.65 | -9.46 | 321.05 | -11.48 | 142.97 | 0.3275 | 966.3 | 461.8 | |
| 91.34 | -2.00 | 47.74 | -2.00 | -8.82 | 320.89 | -11.65 | 141.34 | 0.3207 | 1435.1 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.32 | -9.34 | 319.47 | -13.06 | 139.13 | 0.3422 | 640.0 | 462.1 | |
| 0.00 | 1.57 | 0.00 | 0.84 | -9.54 | 316.52 | -16.01 | 133.68 | 0.3777 | -741.0 | -640.4 | |
| 0.00 | 2.18 | 0.00 | 1.17 | -9.20 | 316.29 | -16.25 | 132.60 | 0.3768 | -824.0 | -765.5 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -8.99 | 316.20 | -16.33 | 132.03 | 0.3755 | -882.0 | -745.4 | |
| 0.00 | 0.87 | 0.00 | 0.47 | -9.11 | 315.37 | -17.16 | 130.85 | 0.3867 | -874.0 | -754.8 | |
| 0.00 | 4.19 | 0.00 | 2.25 | -9.30 | 315.17 | -17.36 | 130.89 | 0.3912 | -802.0 | -854.2 | |
| 0.00 | 1.22 | 0.00 | 0.66 | -9.49 | 314.85 | -17.69 | 130.74 | 0.3972 | -937.0 | -744.4 | |
| 0.00 | 0.52 | 0.00 | 0.28 | -9.38 | 314.50 | -18.03 | 129.98 | 0.4002 | -823.0 | -752.2 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -9.66 | 314.39 | -18.14 | 130.34 | 0.4045 | -711.0 | -629.8 | |
| 0.00 | 1.48 | 0.00 | 0.80 | -9.11 | 314.36 | -18.17 | 129.22 | 0.3992 | -891.0 | -755.9 | |
| 0.00 | 2.79 | 0.00 | 1.51 | -9.36 | 314.25 | -18.28 | 129.54 | 0.4031 | -838.0 | -746.8 | |
| 0.00 | 2.10 | 0.00 | 1.14 | -9.61 | 314.14 | -18.39 | 129.85 | 0.4070 | -602.0 | -547.3 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -8.13 | 314.03 | -18.51 | 126.75 | 0.3938 | -835.0 | -720.4 | |
| 0.00 | 1.75 | 0.00 | 0.95 | -9.46 | 313.83 | -18.71 | 129.10 | 0.4094 | -809.0 | -682.7 | |
| 0.00 | 1.40 | 0.00 | 0.75 | -8.29 | 313.83 | -18.71 | 126.78 | 0.3979 | -929.0 | -822.3 | |
| 0.00 | 2.44 | 0.00 | 1.32 | -8.01 | 313.84 | -18.69 | 126.23 | 0.3951 | -913.0 | -687.7 | |
| 0.00 | 2.53 | 0.00 | 1.37 | -9.25 | 313.61 | -18.92 | 128.38 | 0.4099 | -900.0 | -725.8 | |
| 0.00 | 1.66 | 0.00 | 0.90 | -9.20 | 313.43 | -19.11 | 127.99 | 0.4117 | -991.0 | -776.5 | |
| 0.00 | 1.22 | 0.00 | 0.66 | -8.24 | 313.41 | -19.12 | 126.08 | 0.4028 | -973.0 | -792.7 | |
| 0.00 | 2.79 | 0.00 | 1.54 | -11.32 | 313.19 | -19.34 | 131.55 | 0.4358 | -969.0 | -819.2 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -7.44 | 313.42 | -19.11 | 124.44 | 0.3953 | -968.0 | -840.8 | |
| 0.00 | 2.27 | 0.00 | 1.23 | -8.99 | 313.18 | -19.35 | 127.23 | 0.4128 | -799.0 | -731.7 | |
| 0.00 | 1.75 | 0.00 | 0.94 | -7.54 | 313.26 | -19.27 | 124.41 | 0.3984 | -728.0 | -603.7 | |
| 0.00 | 0.61 | 0.00 | 0.33 | -8.06 | 313.23 | -19.30 | 125.46 | 0.4035 | -769.0 | -547.0 | |
| 0.00 | 1.75 | 0.00 | 0.96 | -11.05 | 312.69 | -19.84 | 130.37 | 0.4390 | -939.0 | -753.5 | |
| 0.00 | 1.57 | 0.00 | 0.87 | -10.84 | 312.51 | -20.02 | 129.74 | 0.4390 | -755.0 | -557.1 | |
| 0.00 | 1.05 | 0.00 | 0.58 | -12.44 | 312.36 | -20.17 | 132.27 | 0.4570 | -692.0 | -527.5 | |
| 0.00 | 1.40 | 0.00 | 0.76 | -8.80 | 312.42 | -20.11 | 125.80 | 0.4207 | -639.0 | -515.5 | |
| 0.00 | 1.40 | 0.00 | 0.76 | -7.97 | 312.34 | -20.19 | 124.04 | 0.4143 | -837.0 | -746.8 | |
| 0.00 | 1.31 | 0.00 | 0.72 | -10.85 | 312.16 | -20.38 | 129.26 | 0.4435 | -673.0 | -538.6 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -10.71 | 311.97 | -20.56 | 128.74 | 0.4443 | -541.0 | -487.2 | |
| 0.00 | 1.05 | 0.00 | 0.58 | -10.43 | 311.96 | -20.57 | 128.22 | 0.4417 | -525.0 | -420.1 | |
| 0.00 | 1.48 | 0.00 | 0.82 | -10.08 | 311.27 | -21.26 | 126.67 | 0.4471 | -685.0 | -536.1 | |
| 1.05 | 2.10 | 0.59 | 1.18 | -10.57 | 309.62 | -22.91 | 125.52 | 0.4721 | -769.4 | -586.9 | |
| 0.00 | 2.97 | 0.00 | 1.67 | -8.96 | 308.12 | -24.41 | 120.97 | 0.4780 | -735.0 | -668.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
