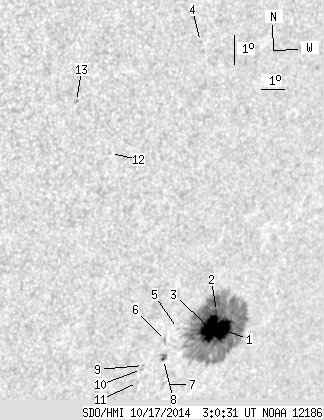

SDO HMI 2014-10-17 03:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.47 | 310.80 | 40.02 | 246.00 | -21.10 | 16.46 | 44.48 | 236.99 | 0.7817 | 833.7 | 280.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-17 03:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.49 | 297.70 | 18.75 | 236.23 | -21.20 | 16.88 | 44.90 | 237.10 | 0.7861 | 872.0 | 287.9 | |
| 0.26 | -1.00 | 0.21 | -1.00 | -20.57 | 16.42 | 44.43 | 237.58 | 0.7788 | 1145.0 | 999999 | |
| 25.85 | -1.00 | 20.39 | -1.00 | -21.12 | 16.31 | 44.33 | 236.88 | 0.7805 | 1193.4 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.79 | -11.70 | 13.34 | 41.36 | 246.96 | 0.7055 | -163.0 | -241.5 | |
| 0.00 | 0.79 | 0.00 | 0.60 | -21.01 | 14.85 | 42.87 | 236.20 | 0.7665 | 321.0 | 440.7 | |
| 0.00 | 0.96 | 0.00 | 0.74 | -21.38 | 14.46 | 42.47 | 235.54 | 0.7648 | 617.0 | 528.9 | |
| 0.00 | 1.57 | 0.00 | 1.23 | -22.90 | 14.98 | 43.00 | 234.12 | 0.7777 | 489.0 | 378.6 | |
| 0.87 | 4.10 | 0.67 | 3.17 | -22.03 | 14.61 | 42.62 | 234.89 | 0.7697 | 497.5 | 543.9 | |
| 0.00 | 1.05 | 0.00 | 0.80 | -22.17 | 13.78 | 41.80 | 234.24 | 0.7629 | -354.0 | -276.1 | |
| 0.00 | 0.96 | 0.00 | 0.73 | -22.30 | 13.74 | 41.76 | 234.07 | 0.7633 | -139.0 | -234.8 | |
| 0.00 | 0.26 | 0.00 | 0.20 | -22.74 | 13.73 | 41.75 | 233.57 | 0.7656 | -236.0 | -306.0 | |
| 0.00 | 0.70 | 0.00 | 0.48 | -15.03 | 10.39 | 38.40 | 240.92 | 0.6888 | -537.0 | -523.4 | |
| 0.00 | 1.57 | 0.00 | 1.03 | -13.27 | 8.72 | 36.74 | 242.24 | 0.6602 | -696.0 | -564.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
