SDO HMI 2014-10-17 04:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.60 | 306.64 | 38.11 | 245.14 | -21.15 | 16.45 | 45.02 | 237.22 | 0.7868 | 884.5 | 278.3 | |
|
previous
or next observation for the same group /

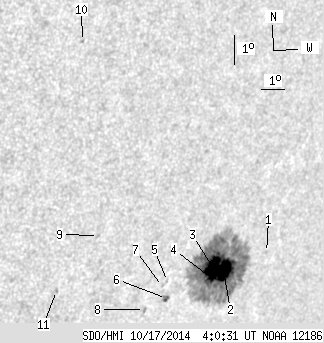

back to the solar disc SDO HMI 2014-10-17 04:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.80 | -20.76 | 18.66 | 47.23 | 238.78 | 0.8049 | -96.0 | -102.6 | |
| 23.23 | 294.67 | 18.72 | 236.10 | -21.21 | 16.84 | 45.41 | 237.35 | 0.7907 | 919.0 | 289.3 | |
| 19.39 | -2.00 | 15.43 | -2.00 | -21.04 | 16.27 | 44.84 | 237.25 | 0.7847 | 1288.4 | 999999 | |
| 3.67 | -2.00 | 2.94 | -2.00 | -21.44 | 16.39 | 44.95 | 236.85 | 0.7877 | 906.6 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.61 | -21.40 | 14.40 | 42.96 | 235.81 | 0.7694 | 421.0 | 478.8 | |
| 1.31 | 3.84 | 1.02 | 2.99 | -21.98 | 14.57 | 43.13 | 235.25 | 0.7740 | 662.9 | 522.2 | |
| 0.00 | 0.79 | 0.00 | 0.61 | -21.55 | 14.23 | 42.80 | 235.54 | 0.7687 | 361.0 | 423.3 | |
| 0.00 | 1.66 | 0.00 | 1.28 | -22.28 | 13.71 | 42.28 | 234.40 | 0.7679 | -251.0 | -315.3 | |
| 0.00 | 1.40 | 0.00 | 1.00 | -19.63 | 10.88 | 39.44 | 235.79 | 0.7259 | -245.0 | -355.9 | |
| 0.00 | 1.05 | 0.00 | 0.69 | -13.26 | 8.75 | 37.31 | 242.63 | 0.6667 | -479.0 | -422.6 | |
| 0.00 | 1.48 | 0.00 | 1.06 | -21.37 | 9.68 | 38.24 | 232.93 | 0.7248 | -238.0 | -369.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
