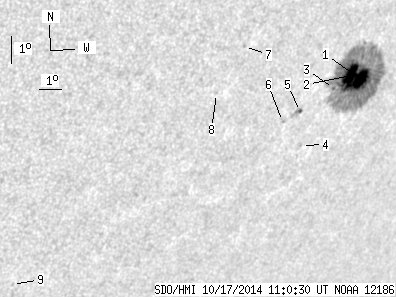

SDO HMI 2014-10-17 11:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.60 | 265.11 | 36.66 | 228.26 | -21.19 | 16.30 | 48.69 | 239.00 | 0.8192 | 841.0 | 196.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-17 11:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.90 | 253.68 | 17.26 | 219.00 | -21.22 | 16.76 | 49.15 | 239.18 | 0.8233 | 829.2 | 205.7 | |
| 21.04 | -1.00 | 18.00 | -1.00 | -21.05 | 16.19 | 48.58 | 239.12 | 0.8177 | 1176.4 | 999999 | |
| 0.79 | -1.00 | 0.67 | -1.00 | -21.43 | 15.53 | 47.92 | 238.38 | 0.8136 | 597.0 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.59 | -23.28 | 14.83 | 47.22 | 235.98 | 0.8157 | 403.0 | 363.8 | |
| 0.87 | 6.11 | 0.73 | 5.07 | -22.09 | 14.25 | 46.64 | 237.01 | 0.8054 | 499.6 | 303.2 | |
| 0.00 | 1.57 | 0.00 | 1.29 | -22.37 | 13.52 | 45.92 | 236.33 | 0.8004 | -345.0 | -357.5 | |
| 0.00 | 1.13 | 0.00 | 0.86 | -19.68 | 10.79 | 43.18 | 237.96 | 0.7624 | -465.0 | -445.2 | |
| 0.00 | 0.87 | 0.00 | 0.67 | -21.18 | 10.08 | 42.48 | 235.81 | 0.7635 | -533.0 | -491.0 | |
| 0.00 | 1.05 | 0.00 | 0.78 | -27.28 | 3.65 | 36.04 | 224.77 | 0.7450 | -277.0 | -366.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
