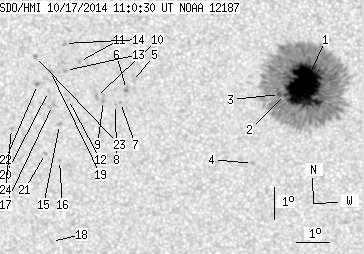

SDO HMI 2014-10-17 11:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 97.85 | 575.97 | 50.42 | 297.18 | -8.81 | 320.52 | -7.09 | 154.24 | 0.2799 | 736.3 | 344.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-17 11:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 96.11 | 543.15 | 49.51 | 279.82 | -8.76 | 320.96 | -6.65 | 155.31 | 0.2752 | 1343.7 | 417.3 | |
| 0.26 | -1.00 | 0.14 | -1.00 | -9.05 | 320.37 | -7.24 | 153.88 | 0.2838 | 962.7 | 999999 | |
| 1.48 | -1.00 | 0.77 | -1.00 | -9.05 | 320.19 | -7.42 | 153.31 | 0.2852 | 800.1 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.73 | -11.20 | 319.30 | -8.30 | 153.94 | 0.3238 | 823.0 | 671.0 | |
| 0.00 | 0.79 | 0.00 | 0.41 | -8.72 | 315.69 | -11.92 | 140.40 | 0.3217 | -370.0 | -367.8 | |
| 0.00 | 1.83 | 0.00 | 0.96 | -8.97 | 315.49 | -12.11 | 140.44 | 0.3269 | -962.0 | -872.0 | |
| 0.00 | 0.96 | 0.00 | 0.50 | -9.38 | 315.29 | -12.31 | 140.77 | 0.3342 | -801.0 | -676.5 | |
| 0.00 | 0.87 | 0.00 | 0.46 | -9.44 | 315.14 | -12.47 | 140.54 | 0.3367 | -801.0 | -605.2 | |
| 0.00 | 1.40 | 0.00 | 0.74 | -9.33 | 314.77 | -12.84 | 139.49 | 0.3391 | -924.0 | -812.4 | |
| 0.00 | 2.36 | 0.00 | 1.24 | -9.21 | 314.55 | -13.05 | 138.79 | 0.3399 | -856.0 | -706.1 | |
| 0.00 | 1.05 | 0.00 | 0.55 | -8.14 | 314.07 | -13.54 | 135.56 | 0.3325 | -745.0 | -612.0 | |
| 0.00 | 1.13 | 0.00 | 0.60 | -9.32 | 313.68 | -13.93 | 137.16 | 0.3509 | -733.0 | -587.3 | |
| 0.00 | 1.92 | 0.00 | 1.01 | -8.43 | 313.62 | -13.99 | 135.23 | 0.3410 | -989.0 | -803.3 | |
| 0.00 | 2.18 | 0.00 | 1.15 | -7.60 | 313.62 | -13.99 | 133.45 | 0.3314 | -859.0 | -710.5 | |
| 0.00 | 1.75 | 0.00 | 0.93 | -10.10 | 313.36 | -14.24 | 138.01 | 0.3637 | -719.0 | -641.2 | |
| 0.00 | 0.96 | 0.00 | 0.51 | -11.22 | 313.31 | -14.30 | 139.92 | 0.3779 | -779.0 | -601.1 | |
| 0.00 | 3.84 | 0.00 | 2.04 | -9.52 | 313.17 | -14.44 | 136.52 | 0.3589 | -748.0 | -641.5 | |
| 0.00 | 1.57 | 0.00 | 0.85 | -13.78 | 312.90 | -14.70 | 143.26 | 0.4138 | -635.0 | -435.2 | |
| 0.00 | 1.75 | 0.00 | 0.92 | -8.47 | 313.15 | -14.46 | 134.37 | 0.3469 | -805.0 | -690.3 | |
| 0.00 | 0.87 | 0.00 | 0.46 | -9.09 | 313.06 | -14.54 | 135.46 | 0.3551 | -764.0 | -553.9 | |
| 0.00 | 1.13 | 0.00 | 0.61 | -11.02 | 312.88 | -14.73 | 138.72 | 0.3799 | -748.0 | -613.8 | |
| 0.00 | 1.92 | 0.00 | 1.02 | -8.88 | 312.73 | -14.88 | 134.38 | 0.3565 | -878.0 | -762.8 | |
| 0.00 | 1.83 | 0.00 | 0.97 | -8.02 | 312.70 | -14.91 | 132.54 | 0.3472 | -920.0 | -742.4 | |
| 0.00 | 1.31 | 0.00 | 0.70 | -10.27 | 311.84 | -15.76 | 135.42 | 0.3825 | -701.0 | -556.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
