SDO HMI 2014-10-17 12:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 92.78 | 598.49 | 47.72 | 308.25 | -8.78 | 320.64 | -6.42 | 156.27 | 0.2746 | 686.9 | 350.6 | |
|
previous
or next observation for the same group /

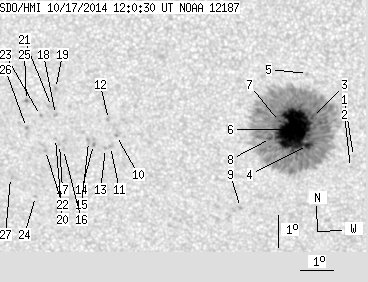

back to the solar disc SDO HMI 2014-10-17 12:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 0.54 | -9.58 | 322.73 | -4.32 | 164.22 | 0.2746 | -801.0 | -619.8 | |
| 0.00 | 0.87 | 0.00 | 0.45 | -9.92 | 322.64 | -4.42 | 164.23 | 0.2806 | -697.0 | -499.7 | |
| 2.79 | 568.55 | 1.43 | 292.54 | -8.39 | 321.51 | -5.55 | 158.49 | 0.2621 | 1139.2 | 412.1 | |
| 3.58 | -3.00 | 1.84 | -3.00 | -9.25 | 321.34 | -5.72 | 159.09 | 0.2767 | 1086.1 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.71 | -7.04 | 321.38 | -5.68 | 155.91 | 0.2419 | -523.0 | -357.4 | |
| 84.40 | -3.00 | 43.42 | -3.00 | -8.76 | 320.93 | -6.13 | 157.02 | 0.2717 | 1361.1 | 999999 | |
| 0.26 | -3.00 | 0.13 | -3.00 | -8.52 | 320.50 | -6.55 | 155.24 | 0.2708 | 976.7 | 999999 | |
| 1.75 | -3.00 | 0.90 | -3.00 | -9.05 | 320.22 | -6.84 | 155.13 | 0.2809 | 795.8 | 999999 | |
| 0.00 | 1.57 | 0.00 | 0.82 | -11.20 | 319.25 | -7.81 | 155.29 | 0.3203 | 790.0 | 651.2 | |
| 0.00 | 1.05 | 0.00 | 0.55 | -9.03 | 315.50 | -11.56 | 141.86 | 0.3219 | -932.0 | -824.8 | |
| 0.00 | 1.83 | 0.00 | 0.96 | -9.37 | 315.30 | -11.76 | 142.05 | 0.3283 | -855.0 | -562.0 | |
| 0.00 | 1.48 | 0.00 | 0.77 | -8.54 | 315.27 | -11.79 | 140.34 | 0.3180 | -831.0 | -717.1 | |
| 0.00 | 0.87 | 0.00 | 0.46 | -9.44 | 315.15 | -11.91 | 141.80 | 0.3308 | -779.0 | -612.4 | |
| 0.00 | 1.48 | 0.00 | 0.78 | -9.32 | 314.78 | -12.28 | 140.73 | 0.3331 | -935.0 | -848.8 | |
| 0.00 | 2.62 | 0.00 | 1.38 | -9.23 | 314.63 | -12.43 | 140.21 | 0.3335 | -882.0 | -713.3 | |
| 0.00 | 1.31 | 0.00 | 0.69 | -9.49 | 313.84 | -13.22 | 138.98 | 0.3452 | -782.0 | -530.4 | |
| 0.00 | 0.96 | 0.00 | 0.51 | -9.34 | 313.72 | -13.34 | 138.44 | 0.3446 | -744.0 | -573.0 | |
| 0.00 | 1.75 | 0.00 | 0.92 | -8.42 | 313.63 | -13.43 | 136.38 | 0.3344 | -1001.0 | -843.5 | |
| 0.00 | 1.05 | 0.00 | 0.55 | -7.62 | 313.66 | -13.40 | 134.73 | 0.3247 | -855.0 | -778.8 | |
| 0.00 | 0.70 | 0.00 | 0.37 | -9.16 | 313.60 | -13.45 | 137.83 | 0.3436 | -855.0 | -613.8 | |
| 0.00 | 3.40 | 0.00 | 1.79 | -8.17 | 313.52 | -13.54 | 135.62 | 0.3329 | -710.0 | -712.6 | |
| 0.00 | 1.22 | 0.00 | 0.65 | -9.54 | 313.28 | -13.78 | 137.88 | 0.3518 | -841.0 | -696.1 | |
| 0.00 | 1.22 | 0.00 | 0.64 | -8.46 | 313.17 | -13.89 | 135.48 | 0.3402 | -828.0 | -703.1 | |
| 0.00 | 0.52 | 0.00 | 0.28 | -10.98 | 312.90 | -14.16 | 139.76 | 0.3734 | -728.0 | -564.8 | |
| 0.00 | 1.75 | 0.00 | 0.92 | -8.01 | 312.75 | -14.31 | 133.68 | 0.3399 | -860.0 | -747.3 | |
| 0.00 | 1.40 | 0.00 | 0.74 | -8.84 | 312.71 | -14.34 | 135.35 | 0.3499 | -850.0 | -760.0 | |
| 0.00 | 0.44 | 0.00 | 0.23 | -10.40 | 312.14 | -14.92 | 137.25 | 0.3746 | -467.0 | -545.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
