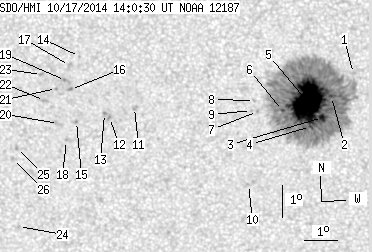

SDO HMI 2014-10-17 14:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 89.00 | 578.31 | 45.70 | 297.33 | -8.84 | 320.55 | -5.41 | 159.85 | 0.2695 | 754.4 | 378.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-17 14:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.92 | 0.00 | 0.98 | -7.88 | 322.33 | -3.63 | 165.01 | 0.2437 | -454.0 | -188.8 | |
| 1.31 | 541.15 | 0.67 | 277.88 | -8.59 | 321.65 | -4.31 | 163.23 | 0.2585 | 1010.8 | 454.6 | |
| 3.84 | -2.00 | 1.97 | -2.00 | -9.24 | 321.37 | -4.59 | 162.94 | 0.2704 | 1065.4 | 999999 | |
| 2.53 | -2.00 | 1.30 | -2.00 | -9.52 | 321.00 | -4.96 | 161.98 | 0.2767 | 814.0 | 999999 | |
| 80.36 | -2.00 | 41.27 | -2.00 | -8.78 | 320.95 | -5.01 | 160.93 | 0.2652 | 1392.6 | 999999 | |
| 0.96 | -2.00 | 0.49 | -2.00 | -9.04 | 320.16 | -5.80 | 158.52 | 0.2738 | 713.9 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.45 | -9.07 | 319.40 | -6.56 | 156.06 | 0.2793 | 761.0 | 606.1 | |
| 0.00 | 1.48 | 0.00 | 0.76 | -8.74 | 319.31 | -6.65 | 155.27 | 0.2747 | 634.0 | 514.9 | |
| 0.00 | 0.79 | 0.00 | 0.41 | -9.05 | 319.22 | -6.74 | 155.43 | 0.2801 | 608.0 | 470.6 | |
| 0.00 | 1.13 | 0.00 | 0.59 | -11.35 | 319.07 | -6.89 | 158.08 | 0.3164 | 585.0 | 514.6 | |
| 0.00 | 2.70 | 0.00 | 1.41 | -9.00 | 315.64 | -10.32 | 144.92 | 0.3093 | -878.0 | -814.2 | |
| 0.00 | 2.18 | 0.00 | 1.14 | -9.33 | 314.86 | -11.10 | 143.54 | 0.3212 | -998.0 | -759.8 | |
| 0.00 | 1.48 | 0.00 | 0.78 | -9.20 | 314.71 | -11.25 | 142.95 | 0.3211 | -927.0 | -703.1 | |
| 0.00 | 0.79 | 0.00 | 0.41 | -7.46 | 313.99 | -11.97 | 137.63 | 0.3064 | -772.0 | -669.6 | |
| 0.00 | 1.13 | 0.00 | 0.60 | -9.47 | 313.83 | -12.13 | 141.37 | 0.3334 | -812.0 | -656.1 | |
| 0.00 | 1.66 | 0.00 | 0.87 | -8.48 | 313.68 | -12.28 | 139.07 | 0.3225 | -1071.0 | -909.3 | |
| 0.00 | 3.40 | 0.00 | 1.77 | -7.75 | 313.68 | -12.28 | 137.50 | 0.3134 | -738.0 | -657.6 | |
| 0.00 | 0.61 | 0.00 | 0.32 | -10.06 | 313.50 | -12.46 | 141.72 | 0.3444 | -860.0 | -694.0 | |
| 0.00 | 3.93 | 0.00 | 2.05 | -8.21 | 313.54 | -12.42 | 138.17 | 0.3207 | -949.0 | -787.0 | |
| 0.00 | 3.40 | 0.00 | 1.79 | -9.54 | 313.27 | -12.69 | 140.24 | 0.3401 | -683.0 | -640.7 | |
| 0.00 | 1.13 | 0.00 | 0.59 | -8.46 | 313.25 | -12.71 | 138.04 | 0.3269 | -803.0 | -678.1 | |
| 0.00 | 2.36 | 0.00 | 1.24 | -8.84 | 312.87 | -13.09 | 137.96 | 0.3358 | -893.0 | -698.5 | |
| 0.00 | 1.75 | 0.00 | 0.91 | -8.04 | 312.80 | -13.16 | 136.16 | 0.3269 | -921.0 | -683.0 | |
| 0.00 | 1.22 | 0.00 | 0.66 | -12.79 | 311.86 | -14.10 | 142.89 | 0.3954 | -685.0 | -475.2 | |
| 0.00 | 1.48 | 0.00 | 0.79 | -10.35 | 311.93 | -14.03 | 138.89 | 0.3643 | -796.0 | -664.3 | |
| 0.00 | 1.75 | 0.00 | 0.93 | -10.66 | 311.79 | -14.17 | 139.18 | 0.3697 | -643.0 | -479.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
