SDO HMI 2014-10-17 15:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.18 | 0.00 | 7.56 | 16.42 | 353.18 | 27.77 | 295.36 | 0.4900 | 28.0 | -110.6 | |
|
previous
or next observation for the same group /

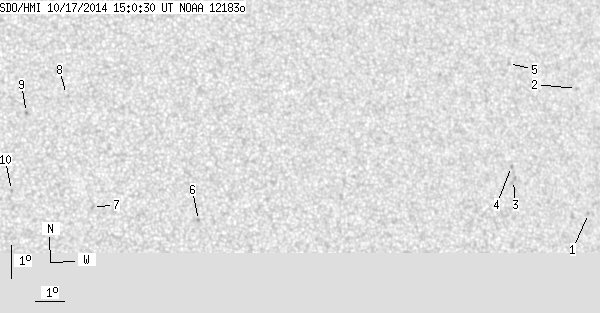

back to the solar disc SDO HMI 2014-10-17 15:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.87 | 0.00 | 0.53 | 14.27 | 0.55 | 35.14 | 286.65 | 0.5844 | -831.0 | -683.1 | |
| 0.00 | 1.31 | 0.00 | 0.81 | 18.07 | 0.88 | 35.47 | 292.81 | 0.6007 | -661.0 | -522.9 | |
| 0.00 | 2.88 | 0.00 | 1.71 | 15.42 | 357.96 | 32.55 | 289.54 | 0.5525 | -736.0 | -649.2 | |
| 0.00 | 1.40 | 0.00 | 0.83 | 15.84 | 357.96 | 32.55 | 290.29 | 0.5540 | -692.0 | -594.1 | |
| 0.00 | 1.57 | 0.00 | 0.95 | 18.98 | 358.49 | 33.08 | 295.40 | 0.5736 | -26.0 | -85.5 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 14.70 | 346.89 | 21.48 | 294.75 | 0.3917 | 774.0 | 669.5 | |
| 0.00 | 1.22 | 0.00 | 0.64 | 15.21 | 343.46 | 18.05 | 299.65 | 0.3455 | 855.0 | 699.4 | |
| 0.00 | 0.35 | 0.00 | 0.19 | 18.67 | 342.95 | 17.54 | 308.75 | 0.3676 | -77.0 | -234.5 | |
| 0.00 | 1.40 | 0.00 | 0.74 | 18.16 | 341.58 | 16.17 | 309.70 | 0.3454 | 857.0 | 666.3 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 15.80 | 340.88 | 15.47 | 304.90 | 0.3144 | 817.0 | 600.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
