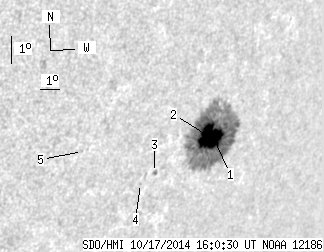

SDO HMI 2014-10-17 16:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.16 | 241.89 | 35.82 | 221.38 | -21.18 | 16.34 | 51.48 | 240.24 | 0.8425 | 847.8 | 201.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-17 16:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.67 | 238.32 | 19.04 | 218.29 | -21.27 | 16.65 | 51.79 | 240.28 | 0.8453 | 723.5 | 203.6 | |
| 18.14 | -1.00 | 16.47 | -1.00 | -21.05 | 16.08 | 51.22 | 240.27 | 0.8399 | 1175.6 | 999999 | |
| 0.35 | 2.18 | 0.31 | 1.91 | -22.15 | 14.03 | 49.17 | 238.16 | 0.8271 | 576.5 | 442.0 | |
| 0.00 | 0.87 | 0.00 | 0.76 | -22.47 | 13.49 | 48.63 | 237.55 | 0.8239 | -528.0 | -452.9 | |
| 0.00 | 0.52 | 0.00 | 0.42 | -21.15 | 10.17 | 45.31 | 237.40 | 0.7893 | -453.0 | -372.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
