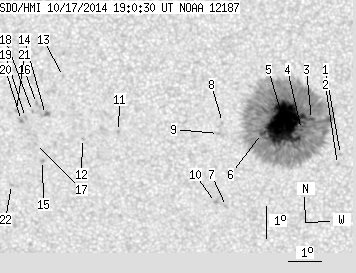

SDO HMI 2014-10-17 19:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 98.56 | 575.04 | 50.45 | 294.54 | -8.80 | 320.73 | -2.47 | 170.45 | 0.2556 | 903.2 | 395.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-17 19:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.49 | -9.72 | 322.67 | -0.53 | 178.03 | 0.2671 | -921.0 | -752.5 | |
| 0.00 | 1.40 | 0.00 | 0.72 | -10.03 | 322.58 | -0.62 | 177.74 | 0.2723 | -844.0 | -712.1 | |
| 1.22 | 548.53 | 0.62 | 280.80 | -8.64 | 321.80 | -1.40 | 174.41 | 0.2497 | 899.4 | 449.6 | |
| 0.61 | -3.00 | 0.31 | -3.00 | -8.95 | 321.50 | -1.71 | 173.35 | 0.2555 | 1038.7 | 999999 | |
| 95.07 | -3.00 | 48.67 | -3.00 | -8.77 | 320.98 | -2.22 | 171.27 | 0.2536 | 1434.0 | 999999 | |
| 1.66 | -3.00 | 0.85 | -3.00 | -9.08 | 320.28 | -2.92 | 168.83 | 0.2608 | 940.7 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.68 | -11.35 | 319.19 | -4.01 | 166.82 | 0.3020 | 722.0 | 564.7 | |
| 0.00 | 0.96 | 0.00 | 0.49 | -8.74 | 319.11 | -4.10 | 164.17 | 0.2599 | 551.0 | 464.9 | |
| 0.00 | 1.13 | 0.00 | 0.58 | -9.08 | 318.98 | -4.22 | 164.07 | 0.2660 | 861.0 | 649.8 | |
| 0.00 | 1.57 | 0.00 | 0.82 | -11.23 | 318.86 | -4.34 | 165.66 | 0.3013 | 799.0 | 753.9 | |
| 0.00 | 0.96 | 0.00 | 0.50 | -9.05 | 315.94 | -7.26 | 153.79 | 0.2839 | -938.0 | -822.7 | |
| 0.00 | 1.22 | 0.00 | 0.63 | -9.28 | 314.84 | -8.36 | 150.83 | 0.2959 | -840.0 | -747.9 | |
| 0.00 | 1.13 | 0.00 | 0.58 | -7.38 | 314.30 | -8.90 | 145.69 | 0.2735 | -817.0 | -693.8 | |
| 0.00 | 4.97 | 0.00 | 2.58 | -8.56 | 313.73 | -9.48 | 146.35 | 0.2952 | -1098.0 | -856.1 | |
| 0.00 | 1.48 | 0.00 | 0.77 | -9.98 | 313.59 | -9.61 | 148.53 | 0.3164 | -874.0 | -787.4 | |
| 0.00 | 1.31 | 0.00 | 0.68 | -8.22 | 313.46 | -9.74 | 144.96 | 0.2931 | -965.0 | -834.3 | |
| 0.00 | 0.96 | 0.00 | 0.50 | -9.46 | 313.39 | -9.81 | 147.10 | 0.3108 | -876.0 | -735.3 | |
| 0.00 | 1.13 | 0.00 | 0.59 | -8.47 | 313.33 | -9.87 | 145.10 | 0.2977 | -960.0 | -779.5 | |
| 0.00 | 1.57 | 0.00 | 0.82 | -8.66 | 313.11 | -10.09 | 144.87 | 0.3024 | -979.0 | -730.8 | |
| 0.00 | 2.01 | 0.00 | 1.04 | -8.75 | 312.98 | -10.22 | 144.71 | 0.3049 | -1072.0 | -906.1 | |
| 0.00 | 1.22 | 0.00 | 0.63 | -8.45 | 312.84 | -10.36 | 143.74 | 0.3022 | -886.0 | -705.1 | |
| 0.00 | 1.22 | 0.00 | 0.64 | -10.74 | 312.61 | -10.59 | 147.28 | 0.3356 | -644.0 | -561.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
