SDO HMI 2014-10-17 20:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 109.20 | 589.12 | 55.89 | 301.70 | -8.81 | 320.65 | -2.01 | 172.30 | 0.2551 | 789.1 | 356.1 | |
|
previous
or next observation for the same group /

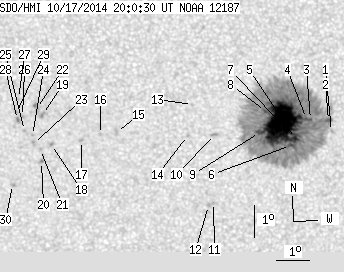

back to the solar disc SDO HMI 2014-10-17 20:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.57 | 0.00 | 0.80 | -9.01 | 322.49 | -0.16 | 179.36 | 0.2548 | -580.0 | -443.1 | |
| 1.92 | 551.43 | 0.98 | 282.21 | -8.67 | 322.40 | -0.25 | 178.98 | 0.2491 | -168.4 | 433.1 | |
| 0.26 | -2.00 | 0.13 | -2.00 | -8.64 | 321.85 | -0.80 | 176.81 | 0.2489 | 1018.7 | 999999 | |
| 0.26 | -2.00 | 0.13 | -2.00 | -8.61 | 321.73 | -0.92 | 176.32 | 0.2485 | 978.7 | 999999 | |
| 3.31 | -2.00 | 1.70 | -2.00 | -9.22 | 321.40 | -1.25 | 175.20 | 0.2593 | 1042.3 | 999999 | |
| 1.40 | -2.00 | 0.72 | -2.00 | -9.44 | 321.24 | -1.41 | 174.70 | 0.2632 | 789.1 | 999999 | |
| 97.69 | -2.00 | 49.99 | -2.00 | -8.76 | 320.98 | -1.68 | 173.39 | 0.2523 | 1416.1 | 999999 | |
| 1.48 | -2.00 | 0.76 | -2.00 | -8.39 | 320.49 | -2.16 | 171.30 | 0.2471 | 956.9 | 999999 | |
| 2.88 | -2.00 | 1.48 | -2.00 | -9.04 | 320.31 | -2.34 | 170.97 | 0.2585 | 943.3 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.21 | -9.11 | 318.95 | -3.71 | 165.96 | 0.2642 | 816.0 | 590.1 | |
| 0.00 | 1.22 | 0.00 | 0.63 | -11.22 | 318.89 | -3.76 | 167.51 | 0.2990 | 843.0 | 710.4 | |
| 0.00 | 2.18 | 0.00 | 1.13 | -11.32 | 318.73 | -3.92 | 167.09 | 0.3011 | 673.0 | 554.9 | |
| 0.00 | 0.96 | 0.00 | 0.49 | -8.19 | 318.29 | -4.36 | 162.55 | 0.2522 | -871.0 | -679.8 | |
| 0.00 | 1.13 | 0.00 | 0.58 | -9.14 | 318.13 | -4.52 | 163.06 | 0.2685 | -894.0 | -656.7 | |
| 0.00 | 2.88 | 0.00 | 1.48 | -9.07 | 315.97 | -6.68 | 155.67 | 0.2801 | -896.0 | -701.7 | |
| 0.00 | 1.05 | 0.00 | 0.54 | -9.14 | 315.48 | -7.17 | 154.21 | 0.2845 | -846.0 | -627.6 | |
| 0.00 | 1.40 | 0.00 | 0.72 | -9.33 | 314.90 | -7.75 | 152.72 | 0.2918 | -946.0 | -721.4 | |
| 0.00 | 1.48 | 0.00 | 0.77 | -9.47 | 313.98 | -8.67 | 150.25 | 0.3011 | -891.0 | -733.8 | |
| 0.00 | 2.97 | 0.00 | 1.53 | -8.54 | 313.72 | -8.93 | 147.90 | 0.2901 | -1106.0 | -914.6 | |
| 0.00 | 1.83 | 0.00 | 0.95 | -10.00 | 313.65 | -9.00 | 150.22 | 0.3114 | -1018.0 | -818.9 | |
| 0.00 | 1.31 | 0.00 | 0.68 | -9.63 | 313.63 | -9.02 | 149.55 | 0.3063 | -904.0 | -672.5 | |
| 0.00 | 4.27 | 0.00 | 2.21 | -8.36 | 313.55 | -9.10 | 147.04 | 0.2891 | -925.0 | -841.6 | |
| 0.00 | 2.09 | 0.00 | 1.09 | -9.44 | 313.43 | -9.23 | 148.66 | 0.3054 | -883.0 | -791.3 | |
| 0.00 | 0.96 | 0.00 | 0.50 | -9.20 | 313.40 | -9.25 | 148.17 | 0.3021 | -957.0 | -703.2 | |
| 0.00 | 1.31 | 0.00 | 0.68 | -9.05 | 313.16 | -9.49 | 147.23 | 0.3022 | -801.0 | -645.5 | |
| 0.00 | 1.40 | 0.00 | 0.72 | -8.62 | 313.11 | -9.54 | 146.29 | 0.2966 | -907.0 | -783.8 | |
| 0.00 | 0.87 | 0.00 | 0.45 | -8.06 | 313.00 | -9.65 | 144.92 | 0.2900 | -555.0 | -531.0 | |
| 0.00 | 1.92 | 0.00 | 1.00 | -8.71 | 312.96 | -9.70 | 146.04 | 0.2994 | -1034.0 | -884.3 | |
| 0.00 | 0.61 | 0.00 | 0.32 | -8.49 | 312.93 | -9.72 | 145.56 | 0.2966 | -906.0 | -712.9 | |
| 0.00 | 1.92 | 0.00 | 1.01 | -10.73 | 312.74 | -9.91 | 148.97 | 0.3295 | -715.0 | -647.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
