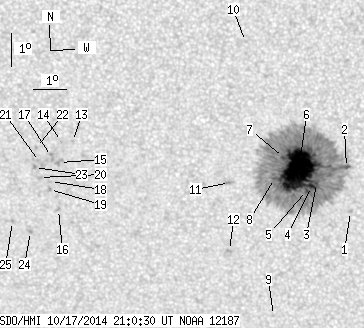

SDO HMI 2014-10-17 21:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 95.08 | 609.88 | 48.65 | 312.28 | -8.81 | 320.66 | -1.44 | 174.49 | 0.2540 | 868.8 | 370.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-17 21:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.74 | 0.00 | 0.90 | -10.03 | 322.57 | 0.47 | 181.70 | 0.2722 | -926.0 | -707.3 | |
| 1.48 | 574.75 | 0.76 | 294.08 | -8.67 | 322.45 | 0.35 | 181.39 | 0.2492 | -300.4 | 433.4 | |
| 1.66 | -2.00 | 0.85 | -2.00 | -9.17 | 321.54 | -0.56 | 177.84 | 0.2576 | 898.2 | 999999 | |
| 3.14 | -2.00 | 1.61 | -2.00 | -9.26 | 321.39 | -0.71 | 177.28 | 0.2593 | 1035.1 | 999999 | |
| 1.57 | -2.00 | 0.81 | -2.00 | -9.38 | 321.23 | -0.86 | 176.73 | 0.2615 | 852.9 | 999999 | |
| 86.71 | -2.00 | 44.36 | -2.00 | -8.77 | 321.00 | -1.10 | 175.64 | 0.2514 | 1434.8 | 999999 | |
| 0.26 | -2.00 | 0.13 | -2.00 | -8.37 | 320.54 | -1.55 | 173.69 | 0.2453 | 1014.7 | 999999 | |
| 0.26 | -2.00 | 0.13 | -2.00 | -9.01 | 320.27 | -1.83 | 172.91 | 0.2568 | 851.0 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.32 | -13.29 | 320.21 | -1.89 | 174.35 | 0.3281 | 627.0 | 358.4 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -4.82 | 319.42 | -2.68 | 165.67 | 0.1889 | 741.0 | 598.7 | |
| 0.00 | 2.88 | 0.00 | 1.48 | -9.14 | 318.91 | -3.19 | 167.86 | 0.2627 | 828.0 | 629.7 | |
| 0.00 | 2.09 | 0.00 | 1.09 | -11.25 | 318.88 | -3.22 | 169.30 | 0.2976 | 803.0 | 732.4 | |
| 0.00 | 1.31 | 0.00 | 0.67 | -7.92 | 314.16 | -7.94 | 149.72 | 0.2725 | -953.0 | -643.9 | |
| 0.00 | 0.87 | 0.00 | 0.45 | -7.92 | 313.83 | -8.27 | 148.68 | 0.2754 | -707.0 | -597.9 | |
| 0.00 | 4.71 | 0.00 | 2.43 | -8.57 | 313.75 | -8.35 | 149.65 | 0.2854 | -874.0 | -866.4 | |
| 0.00 | 1.48 | 0.00 | 0.77 | -10.02 | 313.68 | -8.42 | 151.88 | 0.3071 | -983.0 | -738.1 | |
| 0.00 | 3.05 | 0.00 | 1.58 | -8.39 | 313.51 | -8.59 | 148.60 | 0.2848 | -843.0 | -886.9 | |
| 0.00 | 0.87 | 0.00 | 0.45 | -9.16 | 313.46 | -8.64 | 149.83 | 0.2964 | -922.0 | -759.9 | |
| 0.00 | 1.92 | 0.00 | 1.00 | -9.41 | 313.42 | -8.68 | 150.15 | 0.3003 | -913.0 | -762.1 | |
| 0.00 | 2.36 | 0.00 | 1.22 | -9.04 | 313.13 | -8.97 | 148.67 | 0.2975 | -606.0 | -559.3 | |
| 0.00 | 4.88 | 0.00 | 2.53 | -8.55 | 313.14 | -8.96 | 147.81 | 0.2904 | -768.0 | -594.6 | |
| 0.00 | 1.13 | 0.00 | 0.59 | -8.12 | 313.06 | -9.04 | 146.76 | 0.2851 | -831.0 | -587.9 | |
| 0.00 | 1.48 | 0.00 | 0.77 | -8.74 | 312.98 | -9.12 | 147.71 | 0.2944 | -1078.0 | -939.4 | |
| 0.00 | 1.66 | 0.00 | 0.87 | -10.72 | 312.80 | -9.30 | 150.55 | 0.3243 | -835.0 | -715.7 | |
| 0.00 | 1.22 | 0.00 | 0.64 | -10.42 | 312.26 | -9.84 | 148.65 | 0.3245 | -766.0 | -593.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
