SDO HMI 2014-10-17 23:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.58 | 0.00 | 3.21 | 16.14 | 348.97 | 27.98 | 295.50 | 0.4920 | 78.8 | -82.0 | |
|
previous
or next observation for the same group /

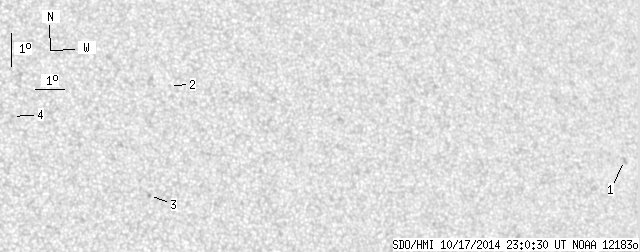

back to the solar disc SDO HMI 2014-10-17 23:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.53 | 0.00 | 1.59 | 15.43 | 358.24 | 37.25 | 287.93 | 0.6155 | -745.0 | -622.1 | |
| 0.00 | 0.61 | 0.00 | 0.33 | 18.48 | 342.39 | 21.39 | 303.39 | 0.4161 | -547.0 | -406.4 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 15.16 | 341.33 | 20.34 | 296.97 | 0.3780 | 860.0 | 736.5 | |
| 0.00 | 1.22 | 0.00 | 0.64 | 17.70 | 337.09 | 16.09 | 308.75 | 0.3401 | 747.0 | 587.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
