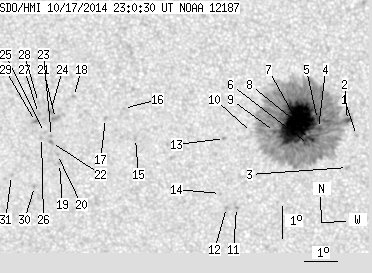

SDO HMI 2014-10-17 23:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 102.95 | 607.41 | 52.67 | 310.88 | -8.82 | 320.69 | -0.31 | 178.91 | 0.2529 | 736.5 | 350.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-17 23:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 0.54 | -9.11 | 322.76 | 1.77 | 186.81 | 0.2582 | -845.0 | -728.8 | |
| 2.27 | 569.45 | 1.16 | 291.27 | -8.65 | 322.49 | 1.50 | 185.95 | 0.2499 | -181.2 | 422.6 | |
| 0.00 | 1.92 | 0.00 | 0.99 | -10.10 | 322.49 | 1.50 | 185.42 | 0.2744 | -938.0 | -697.3 | |
| 2.44 | -2.00 | 1.25 | -2.00 | -8.89 | 321.61 | 0.62 | 182.43 | 0.2530 | 856.8 | 999999 | |
| 2.01 | -2.00 | 1.03 | -2.00 | -8.62 | 321.58 | 0.59 | 182.36 | 0.2482 | 1075.5 | 999999 | |
| 0.26 | -2.00 | 0.13 | -2.00 | -9.39 | 321.31 | 0.32 | 181.21 | 0.2612 | 857.7 | 999999 | |
| 6.63 | -2.00 | 3.40 | -2.00 | -9.23 | 321.28 | 0.29 | 181.10 | 0.2585 | 994.1 | 999999 | |
| 88.12 | -2.00 | 45.07 | -2.00 | -8.74 | 320.98 | -0.02 | 179.93 | 0.2501 | 1416.2 | 999999 | |
| 1.22 | -2.00 | 0.63 | -2.00 | -8.99 | 320.28 | -0.71 | 177.23 | 0.2546 | 849.9 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.67 | -9.02 | 319.59 | -1.41 | 174.54 | 0.2559 | 74.0 | 204.9 | |
| 0.00 | 1.05 | 0.00 | 0.54 | -11.35 | 319.12 | -1.88 | 173.74 | 0.2958 | 960.0 | 824.4 | |
| 0.00 | 1.31 | 0.00 | 0.68 | -11.35 | 318.81 | -2.18 | 172.74 | 0.2964 | 928.0 | 742.7 | |
| 0.00 | 1.40 | 0.00 | 0.72 | -9.20 | 318.77 | -2.22 | 171.51 | 0.2608 | 894.0 | 672.3 | |
| 0.00 | 1.22 | 0.00 | 0.63 | -10.91 | 318.63 | -2.36 | 171.94 | 0.2896 | 747.0 | 608.1 | |
| 0.00 | 1.22 | 0.00 | 0.63 | -9.22 | 316.07 | -4.92 | 161.74 | 0.2715 | -911.0 | -778.1 | |
| 0.00 | 0.96 | 0.00 | 0.49 | -8.29 | 315.72 | -5.27 | 159.33 | 0.2588 | -816.0 | -629.0 | |
| 0.00 | 1.57 | 0.00 | 0.81 | -8.61 | 315.17 | -5.82 | 157.84 | 0.2671 | -889.0 | -698.7 | |
| 0.00 | 1.57 | 0.00 | 0.81 | -7.94 | 314.21 | -6.78 | 153.51 | 0.2635 | -923.0 | -713.0 | |
| 0.00 | 1.13 | 0.00 | 0.59 | -10.01 | 313.74 | -7.25 | 155.25 | 0.2983 | -905.0 | -715.2 | |
| 0.00 | 1.13 | 0.00 | 0.59 | -9.74 | 313.69 | -7.31 | 154.68 | 0.2945 | -855.0 | -657.5 | |
| 0.00 | 3.84 | 0.00 | 1.98 | -8.62 | 313.65 | -7.34 | 152.83 | 0.2780 | -982.0 | -895.3 | |
| 0.00 | 2.01 | 0.00 | 1.04 | -9.37 | 313.51 | -7.48 | 153.59 | 0.2902 | -1031.0 | -826.7 | |
| 0.00 | 0.96 | 0.00 | 0.50 | -9.18 | 313.52 | -7.48 | 153.31 | 0.2874 | -1059.0 | -742.1 | |
| 0.00 | 2.79 | 0.00 | 1.44 | -8.41 | 313.50 | -7.49 | 152.00 | 0.2760 | -1105.0 | -907.6 | |
| 0.00 | 1.57 | 0.00 | 0.81 | -9.06 | 313.31 | -7.69 | 152.47 | 0.2872 | -807.0 | -664.8 | |
| 0.00 | 1.22 | 0.00 | 0.63 | -9.22 | 313.21 | -7.78 | 152.44 | 0.2902 | -636.0 | -550.1 | |
| 0.00 | 1.66 | 0.00 | 0.85 | -8.48 | 313.14 | -7.86 | 150.96 | 0.2799 | -836.0 | -727.3 | |
| 0.00 | 1.05 | 0.00 | 0.54 | -8.14 | 313.14 | -7.85 | 150.38 | 0.2749 | -889.0 | -587.2 | |
| 0.00 | 3.14 | 0.00 | 1.62 | -8.72 | 313.04 | -7.96 | 151.10 | 0.2843 | -1007.0 | -802.7 | |
| 0.00 | 1.83 | 0.00 | 0.96 | -10.74 | 312.96 | -8.04 | 154.00 | 0.3148 | -874.0 | -642.3 | |
| 0.00 | 1.05 | 0.00 | 0.55 | -10.41 | 312.26 | -8.73 | 151.57 | 0.3151 | -768.0 | -613.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
