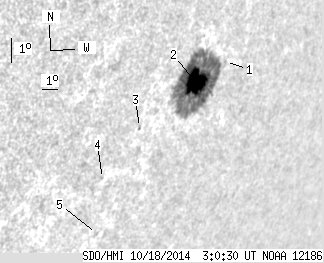

SDO HMI 2014-10-18 03:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.90 | 195.94 | 32.92 | 209.16 | -21.14 | 16.10 | 57.31 | 242.50 | 0.8869 | 710.6 | 191.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-18 03:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 1.16 | -20.58 | 17.64 | 58.85 | 243.61 | 0.8962 | -219.0 | -189.9 | |
| 30.90 | 191.84 | 32.92 | 204.88 | -21.10 | 16.13 | 57.34 | 242.56 | 0.8870 | 799.3 | 196.2 | |
| 0.00 | 1.31 | 0.00 | 1.32 | -22.41 | 13.66 | 54.87 | 240.27 | 0.8727 | 401.0 | 286.1 | |
| 0.00 | 0.61 | 0.00 | 0.61 | -24.03 | 12.55 | 53.76 | 238.10 | 0.8697 | -303.0 | -338.7 | |
| 0.00 | 1.13 | 0.00 | 1.19 | -25.99 | 13.49 | 54.70 | 236.41 | 0.8826 | 44.0 | 89.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
