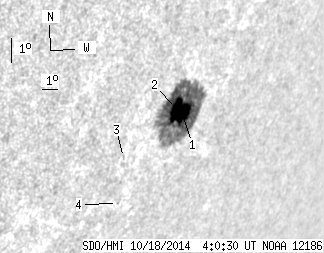

SDO HMI 2014-10-18 04:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.56 | 186.61 | 35.26 | 202.24 | -21.13 | 16.14 | 57.90 | 242.71 | 0.8910 | 755.2 | 192.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-18 04:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.16 | 185.04 | 19.82 | 200.61 | -21.21 | 16.38 | 58.13 | 242.71 | 0.8928 | 535.4 | 190.7 | |
| 14.40 | -1.00 | 15.44 | -1.00 | -21.00 | 15.88 | 57.64 | 242.77 | 0.8888 | 1091.0 | 999999 | |
| 0.00 | 1.05 | 0.00 | 1.07 | -22.43 | 13.63 | 55.39 | 240.45 | 0.8765 | 374.0 | 320.3 | |
| 0.00 | 0.52 | 0.00 | 0.56 | -24.03 | 14.30 | 56.05 | 238.99 | 0.8859 | 307.0 | 310.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
