SDO HMI 2014-10-18 07:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.45 | 0.00 | 4.54 | 13.33 | 1.41 | 44.81 | 283.48 | 0.7074 | -558.7 | -452.0 | |
|
previous
or next observation for the same group /

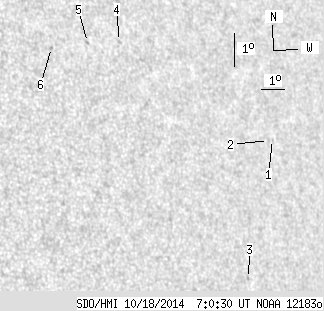

back to the solar disc SDO HMI 2014-10-18 07:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.52 | 0.00 | 0.40 | 12.12 | 5.93 | 49.33 | 281.17 | 0.7582 | -396.0 | -348.2 | |
| 0.00 | 0.96 | 0.00 | 0.72 | 12.10 | 5.74 | 49.13 | 281.16 | 0.7560 | -538.0 | -444.4 | |
| 0.00 | 1.13 | 0.00 | 0.83 | 8.06 | 4.00 | 47.40 | 275.78 | 0.7349 | -601.0 | -435.6 | |
| 0.00 | 1.31 | 0.00 | 0.90 | 15.52 | 359.96 | 43.36 | 286.63 | 0.6927 | -565.0 | -428.5 | |
| 0.00 | 1.48 | 0.00 | 1.00 | 15.58 | 358.62 | 42.02 | 287.00 | 0.6765 | -646.0 | -484.1 | |
| 0.00 | 1.05 | 0.00 | 0.69 | 15.52 | 357.12 | 40.51 | 287.26 | 0.6578 | -606.0 | -524.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
