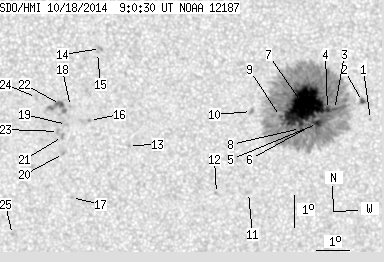

SDO HMI 2014-10-18 09:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 105.67 | 595.79 | 54.29 | 306.16 | -8.79 | 320.75 | 5.24 | 199.91 | 0.2669 | 862.2 | 343.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-18 09:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.50 | -9.14 | 323.08 | 7.57 | 207.13 | 0.2866 | -779.0 | -614.2 | |
| 1.48 | 3.23 | 0.76 | 1.66 | -8.58 | 322.83 | 7.32 | 207.25 | 0.2763 | -630.4 | -315.0 | |
| 1.40 | 558.00 | 0.72 | 286.75 | -8.82 | 321.98 | 6.47 | 204.11 | 0.2737 | 688.8 | 407.5 | |
| 2.36 | -3.00 | 1.21 | -3.00 | -8.81 | 321.76 | 6.25 | 203.41 | 0.2722 | 984.4 | 999999 | |
| 4.71 | -3.00 | 2.43 | -3.00 | -9.24 | 321.47 | 5.96 | 201.81 | 0.2769 | 956.6 | 999999 | |
| 1.31 | -3.00 | 0.67 | -3.00 | -9.33 | 321.23 | 5.72 | 200.89 | 0.2769 | 825.5 | 999999 | |
| 89.97 | -3.00 | 46.22 | -3.00 | -8.71 | 321.06 | 5.55 | 201.17 | 0.2662 | 1410.7 | 999999 | |
| 1.22 | -3.00 | 0.63 | -3.00 | -9.39 | 320.95 | 5.44 | 199.90 | 0.2762 | 865.1 | 999999 | |
| 1.13 | -3.00 | 0.58 | -3.00 | -9.01 | 320.34 | 4.83 | 198.24 | 0.2668 | 911.7 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.21 | -8.85 | 319.46 | 3.95 | 195.25 | 0.2599 | 867.0 | 716.3 | |
| 0.00 | 1.92 | 0.00 | 1.00 | -11.36 | 319.40 | 3.89 | 192.82 | 0.3007 | 725.0 | 610.9 | |
| 0.00 | 1.57 | 0.00 | 0.81 | -11.39 | 318.42 | 2.91 | 189.66 | 0.2979 | 772.0 | 631.8 | |
| 0.00 | 0.96 | 0.00 | 0.49 | -9.88 | 315.74 | 0.23 | 180.84 | 0.2685 | -654.0 | -537.8 | |
| 0.00 | 1.75 | 0.00 | 0.89 | -6.90 | 314.90 | -0.61 | 177.19 | 0.2180 | -987.0 | -885.2 | |
| 0.00 | 0.52 | 0.00 | 0.27 | -7.02 | 314.81 | -0.70 | 176.81 | 0.2201 | -772.0 | -588.3 | |
| 0.00 | 0.87 | 0.00 | 0.45 | -9.11 | 314.56 | -0.95 | 176.31 | 0.2559 | -906.0 | -765.5 | |
| 0.00 | 0.96 | 0.00 | 0.50 | -11.50 | 314.00 | -1.51 | 174.98 | 0.2968 | -866.0 | -783.5 | |
| 0.00 | 1.13 | 0.00 | 0.58 | -8.68 | 313.99 | -1.52 | 173.92 | 0.2494 | -1007.0 | -816.1 | |
| 0.00 | 1.40 | 0.00 | 0.72 | -9.23 | 313.86 | -1.65 | 173.68 | 0.2590 | -1040.0 | -765.5 | |
| 0.00 | 1.66 | 0.00 | 0.85 | -10.13 | 313.76 | -1.75 | 173.70 | 0.2743 | -899.0 | -778.5 | |
| 0.00 | 2.18 | 0.00 | 1.12 | -9.60 | 313.74 | -1.77 | 173.38 | 0.2655 | -864.0 | -782.5 | |
| 2.09 | 11.26 | 1.07 | 5.76 | -8.62 | 313.68 | -1.83 | 172.70 | 0.2490 | -1153.3 | -930.0 | |
| 0.00 | 2.01 | 0.00 | 1.03 | -9.45 | 313.62 | -1.89 | 172.86 | 0.2632 | -798.0 | -729.3 | |
| 0.00 | 1.92 | 0.00 | 0.98 | -8.40 | 312.96 | -2.55 | 169.70 | 0.2473 | -560.0 | -418.7 | |
| 0.00 | 1.13 | 0.00 | 0.59 | -12.67 | 312.18 | -3.33 | 169.77 | 0.3201 | -752.0 | -608.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
