SDO HMI 2014-10-18 13:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 98.03 | 590.04 | 50.61 | 304.50 | -8.80 | 320.67 | 7.35 | 206.84 | 0.2811 | 874.6 | 318.7 | |
|
previous
or next observation for the same group /

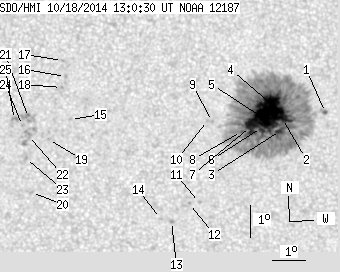

back to the solar disc SDO HMI 2014-10-18 13:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.78 | 3.31 | 0.41 | 1.72 | -8.66 | 322.89 | 9.57 | 213.86 | 0.2965 | -602.9 | -162.1 | |
| 10.20 | 543.64 | 5.28 | 280.68 | -8.82 | 321.58 | 8.26 | 209.78 | 0.2873 | 1108.9 | 404.6 | |
| 4.36 | -2.00 | 2.26 | -2.00 | -9.19 | 321.53 | 8.21 | 208.99 | 0.2922 | 756.9 | 999999 | |
| 31.75 | -2.00 | 16.37 | -2.00 | -8.42 | 321.27 | 7.95 | 209.54 | 0.2787 | 1533.4 | 999999 | |
| 33.23 | -2.00 | 17.15 | -2.00 | -8.81 | 321.00 | 7.68 | 208.03 | 0.2824 | 1374.9 | 999999 | |
| 6.54 | -2.00 | 3.38 | -2.00 | -9.09 | 320.95 | 7.63 | 207.40 | 0.2861 | 996.7 | 999999 | |
| 10.47 | -2.00 | 5.40 | -2.00 | -9.05 | 320.61 | 7.29 | 206.41 | 0.2830 | 1083.5 | 999999 | |
| 0.70 | -2.00 | 0.36 | -2.00 | -9.21 | 320.34 | 7.02 | 205.32 | 0.2833 | 845.5 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.63 | -8.89 | 319.45 | 6.13 | 202.91 | 0.2723 | 803.0 | 631.4 | |
| 0.00 | 1.05 | 0.00 | 0.54 | -8.85 | 319.30 | 5.98 | 202.44 | 0.2708 | 498.0 | 386.1 | |
| 0.00 | 1.31 | 0.00 | 0.68 | -11.40 | 319.10 | 5.78 | 198.68 | 0.3096 | 921.0 | 700.7 | |
| 0.00 | 0.96 | 0.00 | 0.50 | -11.42 | 318.79 | 5.47 | 197.73 | 0.3084 | 858.0 | 710.0 | |
| 0.00 | 1.83 | 0.00 | 0.96 | -11.98 | 318.25 | 4.93 | 195.57 | 0.3147 | 813.0 | 625.2 | |
| 0.00 | 1.31 | 0.00 | 0.68 | -11.88 | 317.91 | 4.59 | 194.63 | 0.3117 | 578.0 | 528.3 | |
| 0.00 | 1.22 | 0.00 | 0.62 | -8.79 | 315.15 | 1.83 | 187.23 | 0.2517 | -813.0 | -592.3 | |
| 0.00 | 1.40 | 0.00 | 0.71 | -7.47 | 314.99 | 1.67 | 187.30 | 0.2291 | -985.0 | -848.2 | |
| 0.00 | 1.31 | 0.00 | 0.66 | -6.98 | 314.90 | 1.58 | 187.17 | 0.2206 | -893.0 | -734.3 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -7.80 | 314.87 | 1.55 | 186.61 | 0.2345 | -896.0 | -791.3 | |
| 0.00 | 1.13 | 0.00 | 0.58 | -9.40 | 314.49 | 1.17 | 184.43 | 0.2609 | -746.0 | -555.8 | |
| 0.00 | 1.66 | 0.00 | 0.86 | -11.05 | 313.97 | 0.65 | 182.23 | 0.2881 | -788.0 | -647.7 | |
| 0.00 | 9.94 | 0.00 | 5.08 | -8.72 | 313.88 | 0.56 | 182.23 | 0.2488 | -837.0 | -909.8 | |
| 0.00 | 11.69 | 0.00 | 5.99 | -9.28 | 313.88 | 0.56 | 182.15 | 0.2582 | -866.0 | -796.7 | |
| 0.00 | 1.92 | 0.00 | 0.99 | -9.99 | 313.79 | 0.47 | 181.72 | 0.2702 | -846.0 | -716.9 | |
| 0.00 | 1.22 | 0.00 | 0.62 | -8.97 | 313.70 | 0.38 | 181.49 | 0.2529 | -783.0 | -645.2 | |
| 0.00 | 3.05 | 0.00 | 1.56 | -8.78 | 313.46 | 0.14 | 180.54 | 0.2497 | -905.0 | -840.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
