SDO HMI 2014-10-18 16:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 91.98 | 582.22 | 47.70 | 301.70 | -8.80 | 320.54 | 8.87 | 211.30 | 0.2939 | 672.7 | 314.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-18 16:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

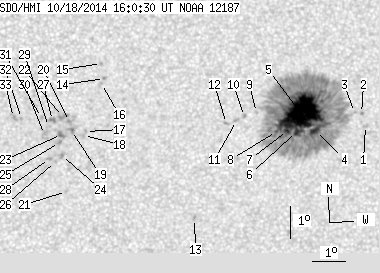

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.35 | 0.00 | 1.23 | -9.10 | 323.10 | 11.43 | 217.85 | 0.3204 | -541.0 | -576.6 | |
| 0.00 | 1.13 | 0.00 | 0.59 | -8.72 | 322.97 | 11.30 | 218.25 | 0.3142 | -640.0 | -580.6 | |
| 0.00 | 0.96 | 0.00 | 0.50 | -8.69 | 322.75 | 11.08 | 217.78 | 0.3115 | 685.0 | 509.5 | |
| 6.19 | 523.90 | 3.22 | 271.71 | -9.22 | 321.57 | 9.90 | 213.69 | 0.3072 | 815.1 | 428.3 | |
| 77.86 | -4.00 | 40.36 | -4.00 | -8.69 | 321.12 | 9.45 | 213.47 | 0.2958 | 1466.2 | 999999 | |
| 3.57 | -4.00 | 1.86 | -4.00 | -9.24 | 320.99 | 9.32 | 212.07 | 0.3023 | 871.2 | 999999 | |
| 2.79 | -4.00 | 1.45 | -4.00 | -9.21 | 320.71 | 9.04 | 211.36 | 0.2993 | 1030.0 | 999999 | |
| 1.57 | -4.00 | 0.81 | -4.00 | -9.23 | 320.37 | 8.70 | 210.36 | 0.2968 | 925.3 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.59 | -8.63 | 319.75 | 8.08 | 209.55 | 0.2830 | 814.0 | 668.2 | |
| 0.00 | 1.57 | 0.00 | 0.81 | -8.75 | 319.38 | 7.71 | 208.23 | 0.2818 | 782.0 | 669.0 | |
| 0.00 | 2.27 | 0.00 | 1.17 | -8.87 | 319.14 | 7.47 | 207.28 | 0.2817 | 707.0 | 417.2 | |
| 0.00 | 2.18 | 0.00 | 1.12 | -8.96 | 318.84 | 7.17 | 206.18 | 0.2807 | 966.0 | 650.7 | |
| 0.00 | 1.57 | 0.00 | 0.82 | -11.90 | 317.92 | 6.25 | 199.54 | 0.3200 | 889.0 | 705.0 | |
| 0.00 | 1.48 | 0.00 | 0.76 | -7.54 | 315.13 | 3.46 | 194.73 | 0.2360 | -1106.0 | -841.6 | |
| 0.00 | 1.31 | 0.00 | 0.67 | -7.08 | 315.03 | 3.36 | 194.86 | 0.2280 | -958.0 | -758.5 | |
| 0.00 | 0.78 | 0.00 | 0.40 | -7.69 | 315.04 | 3.37 | 194.21 | 0.2382 | -857.0 | -638.3 | |
| 0.00 | 0.96 | 0.00 | 0.49 | -9.16 | 314.56 | 2.89 | 191.06 | 0.2608 | -921.0 | -801.5 | |
| 0.00 | 1.39 | 0.00 | 0.72 | -9.29 | 314.50 | 2.83 | 190.75 | 0.2627 | -837.0 | -612.6 | |
| 0.00 | 2.88 | 0.00 | 1.48 | -9.13 | 314.14 | 2.47 | 189.50 | 0.2590 | -1010.0 | -868.4 | |
| 0.00 | 2.53 | 0.00 | 1.29 | -8.85 | 314.08 | 2.41 | 189.44 | 0.2542 | -940.0 | -882.3 | |
| 0.00 | 1.31 | 0.00 | 0.68 | -11.02 | 314.00 | 2.33 | 187.94 | 0.2902 | -835.0 | -715.8 | |
| 0.00 | 5.67 | 0.00 | 2.90 | -8.70 | 313.86 | 2.19 | 188.71 | 0.2510 | -1086.0 | -917.4 | |
| 0.00 | 4.10 | 0.00 | 2.10 | -9.25 | 313.84 | 2.17 | 188.28 | 0.2603 | -1198.0 | -933.4 | |
| 0.00 | 1.48 | 0.00 | 0.76 | -9.90 | 313.84 | 2.17 | 187.95 | 0.2711 | -887.0 | -712.2 | |
| 0.00 | 1.92 | 0.00 | 0.98 | -9.50 | 313.78 | 2.11 | 187.93 | 0.2643 | -896.0 | -750.1 | |
| 0.00 | 0.87 | 0.00 | 0.45 | -10.09 | 313.66 | 1.99 | 187.20 | 0.2738 | -834.0 | -653.3 | |
| 0.00 | 3.23 | 0.00 | 1.65 | -8.82 | 313.56 | 1.89 | 187.47 | 0.2524 | -1014.0 | -879.3 | |
| 0.00 | 2.09 | 0.00 | 1.08 | -9.99 | 313.48 | 1.81 | 186.59 | 0.2719 | -864.0 | -696.4 | |
| 0.00 | 1.48 | 0.00 | 0.76 | -9.00 | 313.44 | 1.77 | 186.91 | 0.2552 | -761.0 | -734.4 | |
| 0.00 | 6.28 | 0.00 | 3.22 | -9.25 | 313.32 | 1.65 | 186.34 | 0.2591 | -770.0 | -626.2 | |
| 0.00 | 1.48 | 0.00 | 0.76 | -8.73 | 313.23 | 1.56 | 186.21 | 0.2501 | -765.0 | -601.1 | |
| 0.00 | 0.96 | 0.00 | 0.49 | -8.75 | 312.63 | 0.96 | 183.80 | 0.2497 | -874.0 | -759.1 | |
| 0.00 | 2.96 | 0.00 | 1.52 | -8.72 | 312.38 | 0.71 | 182.85 | 0.2489 | -993.0 | -774.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
