SDO HMI 2014-10-18 18:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 82.03 | 582.30 | 42.68 | 302.80 | -8.76 | 320.69 | 10.13 | 214.93 | 0.3042 | 757.1 | 334.0 | |
|
previous
or next observation for the same group /

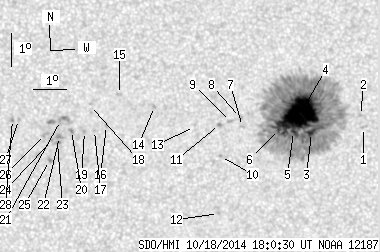

back to the solar disc SDO HMI 2014-10-18 18:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.18 | 0.00 | 1.14 | -9.12 | 323.14 | 12.58 | 220.47 | 0.3326 | -648.0 | -509.9 | |
| 0.00 | 1.66 | 0.00 | 0.87 | -8.75 | 323.04 | 12.47 | 220.98 | 0.3269 | -516.0 | -247.0 | |
| 4.88 | 532.03 | 2.55 | 276.90 | -9.24 | 321.54 | 10.97 | 216.44 | 0.3177 | 844.6 | 427.4 | |
| 74.71 | -3.00 | 38.86 | -3.00 | -8.68 | 321.15 | 10.59 | 216.54 | 0.3064 | 1483.4 | 999999 | |
| 1.48 | -3.00 | 0.77 | -3.00 | -9.20 | 320.98 | 10.42 | 215.10 | 0.3118 | 964.4 | 999999 | |
| 0.96 | -3.00 | 0.50 | -3.00 | -9.13 | 320.52 | 9.95 | 214.01 | 0.3065 | 1019.9 | 999999 | |
| 0.00 | 1.48 | 0.00 | 0.77 | -9.02 | 319.41 | 8.85 | 211.15 | 0.2950 | 733.0 | 536.9 | |
| 0.00 | 1.39 | 0.00 | 0.72 | -8.74 | 319.35 | 8.78 | 211.46 | 0.2904 | 745.0 | 645.0 | |
| 0.00 | 2.35 | 0.00 | 1.22 | -8.86 | 319.04 | 8.48 | 210.36 | 0.2895 | 562.0 | 343.6 | |
| 0.00 | 1.13 | 0.00 | 0.59 | -9.93 | 318.76 | 8.20 | 207.75 | 0.3030 | 737.0 | 562.2 | |
| 0.00 | 1.74 | 0.00 | 0.90 | -8.94 | 318.71 | 8.14 | 209.21 | 0.2880 | 923.0 | 676.8 | |
| 0.00 | 1.13 | 0.00 | 0.59 | -11.71 | 318.75 | 8.18 | 205.17 | 0.3292 | 808.0 | 748.7 | |
| 0.00 | 0.70 | 0.00 | 0.36 | -8.99 | 317.95 | 7.38 | 206.80 | 0.2828 | -521.0 | -369.9 | |
| 0.00 | 1.39 | 0.00 | 0.72 | -8.36 | 316.72 | 6.15 | 203.77 | 0.2643 | -824.0 | -659.7 | |
| 0.00 | 2.09 | 0.00 | 1.07 | -7.98 | 315.66 | 5.09 | 200.53 | 0.2516 | -699.0 | -610.0 | |
| 0.00 | 1.39 | 0.00 | 0.72 | -8.93 | 315.27 | 4.71 | 197.92 | 0.2647 | -955.0 | -748.9 | |
| 0.00 | 0.87 | 0.00 | 0.45 | -9.08 | 314.91 | 4.34 | 196.45 | 0.2653 | -788.0 | -636.5 | |
| 0.00 | 0.44 | 0.00 | 0.22 | -8.31 | 314.78 | 4.22 | 196.84 | 0.2522 | -581.0 | -617.0 | |
| 0.00 | 1.05 | 0.00 | 0.54 | -9.11 | 314.61 | 4.04 | 195.33 | 0.2644 | -1001.0 | -832.9 | |
| 0.00 | 2.09 | 0.00 | 1.07 | -9.08 | 314.21 | 3.65 | 193.93 | 0.2621 | -1048.0 | -864.9 | |
| 0.00 | 12.64 | 0.00 | 6.47 | -8.76 | 313.88 | 3.31 | 192.96 | 0.2557 | -1043.0 | -852.2 | |
| 0.00 | 3.40 | 0.00 | 1.75 | -9.26 | 313.85 | 3.29 | 192.44 | 0.2637 | -1232.0 | -984.6 | |
| 0.00 | 2.09 | 0.00 | 1.07 | -9.44 | 313.79 | 3.23 | 192.08 | 0.2666 | -912.0 | -715.0 | |
| 0.00 | 1.22 | 0.00 | 0.63 | -9.38 | 313.61 | 3.04 | 191.46 | 0.2649 | -832.0 | -679.5 | |
| 0.00 | 1.74 | 0.00 | 0.90 | -10.00 | 313.55 | 2.99 | 190.81 | 0.2750 | -948.0 | -832.4 | |
| 0.00 | 2.96 | 0.00 | 1.52 | -9.19 | 313.43 | 2.86 | 190.92 | 0.2612 | -876.0 | -729.7 | |
| 0.00 | 1.48 | 0.00 | 0.76 | -8.73 | 312.61 | 2.04 | 188.10 | 0.2511 | -792.0 | -652.3 | |
| 0.00 | 1.66 | 0.00 | 0.85 | -8.73 | 312.43 | 1.86 | 187.39 | 0.2507 | -1125.0 | -861.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
