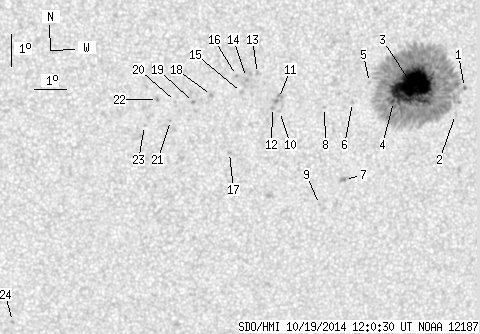

SDO HMI 2014-10-19 12:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 96.60 | 558.06 | 52.84 | 304.97 | -8.83 | 321.05 | 20.37 | 234.78 | 0.4227 | 775.0 | 273.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-19 12:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.35 | 515.69 | 0.19 | 282.31 | -8.85 | 323.05 | 22.37 | 237.33 | 0.4487 | -812.2 | 344.2 | |
| 0.00 | 1.92 | 0.00 | 1.06 | -9.67 | 322.81 | 22.13 | 235.50 | 0.4525 | -257.0 | -388.0 | |
| 94.42 | -1.00 | 51.65 | -1.00 | -8.76 | 321.39 | 20.71 | 235.45 | 0.4261 | 1293.3 | 999999 | |
| 1.83 | -1.00 | 1.00 | -1.00 | -9.20 | 320.77 | 20.09 | 233.77 | 0.4221 | 897.4 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.47 | -8.58 | 319.96 | 19.28 | 233.86 | 0.4061 | 861.0 | 712.1 | |
| 0.00 | 1.39 | 0.00 | 0.76 | -9.18 | 319.45 | 18.77 | 231.92 | 0.4053 | 780.0 | 672.6 | |
| 0.00 | 4.36 | 0.00 | 2.39 | -11.57 | 319.34 | 18.66 | 227.32 | 0.4282 | 925.0 | 694.1 | |
| 0.00 | 1.22 | 0.00 | 0.66 | -9.31 | 318.57 | 17.89 | 230.31 | 0.3955 | 616.0 | 432.9 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -12.33 | 318.59 | 17.91 | 224.85 | 0.4278 | 704.0 | 550.1 | |
| 0.00 | 0.96 | 0.00 | 0.51 | -9.39 | 317.14 | 16.46 | 227.80 | 0.3791 | -774.0 | -589.7 | |
| 0.00 | 5.93 | 0.00 | 3.16 | -8.99 | 317.09 | 16.41 | 228.52 | 0.3742 | -570.0 | -822.7 | |
| 0.00 | 1.39 | 0.00 | 0.74 | -9.26 | 316.92 | 16.24 | 227.66 | 0.3750 | -901.0 | -793.5 | |
| 0.00 | 1.05 | 0.00 | 0.55 | -8.20 | 316.40 | 15.72 | 228.93 | 0.3573 | -759.0 | -564.2 | |
| 0.00 | 9.33 | 0.00 | 4.94 | -8.31 | 316.06 | 15.38 | 228.06 | 0.3544 | -660.0 | -772.6 | |
| 0.00 | 1.92 | 0.00 | 1.02 | -8.77 | 315.92 | 15.24 | 226.85 | 0.3577 | -836.0 | -594.2 | |
| 0.00 | 0.96 | 0.00 | 0.51 | -8.24 | 315.74 | 15.07 | 227.62 | 0.3498 | -970.0 | -810.3 | |
| 0.00 | 1.39 | 0.00 | 0.75 | -10.62 | 315.63 | 14.95 | 222.69 | 0.3756 | -886.0 | -739.6 | |
| 0.00 | 1.57 | 0.00 | 0.83 | -8.84 | 314.99 | 14.31 | 224.89 | 0.3475 | -919.0 | -804.8 | |
| 0.00 | 1.39 | 0.00 | 0.74 | -9.04 | 314.43 | 13.75 | 223.34 | 0.3436 | -905.0 | -816.2 | |
| 0.00 | 1.05 | 0.00 | 0.55 | -8.99 | 313.87 | 13.19 | 222.24 | 0.3368 | -868.0 | -693.3 | |
| 0.00 | 0.96 | 0.00 | 0.51 | -9.58 | 313.74 | 13.06 | 220.80 | 0.3425 | -873.0 | -738.5 | |
| 0.00 | 1.22 | 0.00 | 0.64 | -8.92 | 313.31 | 12.63 | 221.15 | 0.3298 | -941.0 | -781.1 | |
| 0.00 | 0.96 | 0.00 | 0.50 | -9.71 | 312.94 | 12.26 | 218.75 | 0.3358 | -695.0 | -600.5 | |
| 0.00 | 1.57 | 0.00 | 0.84 | -15.80 | 309.07 | 8.39 | 201.15 | 0.3907 | -801.0 | -672.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
