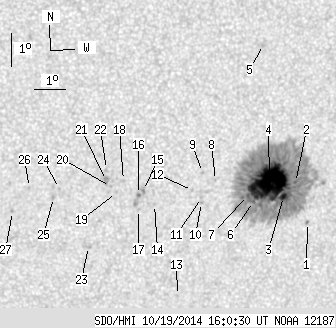

SDO HMI 2014-10-19 16:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 87.40 | 526.49 | 48.58 | 292.34 | -8.81 | 321.14 | 22.66 | 237.70 | 0.4522 | 760.5 | 307.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-19 16:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.22 | 0.00 | 0.69 | -10.04 | 322.75 | 24.27 | 237.28 | 0.4830 | -785.0 | -640.4 | |
| 0.96 | 491.20 | 0.54 | 273.25 | -8.79 | 322.26 | 23.78 | 239.03 | 0.4667 | 487.6 | 372.6 | |
| 3.40 | -2.00 | 1.90 | -2.00 | -9.20 | 321.89 | 23.41 | 237.86 | 0.4652 | 818.6 | 999999 | |
| 81.04 | -2.00 | 45.03 | -2.00 | -8.78 | 321.40 | 22.92 | 238.10 | 0.4553 | 1339.8 | 999999 | |
| 0.00 | 2.53 | 0.00 | 1.38 | -4.52 | 321.00 | 22.52 | 246.35 | 0.4187 | 418.0 | 412.3 | |
| 0.52 | -2.00 | 0.29 | -2.00 | -9.32 | 320.92 | 22.43 | 236.53 | 0.4534 | 839.5 | 999999 | |
| 1.13 | -2.00 | 0.63 | -2.00 | -9.13 | 320.71 | 22.23 | 236.64 | 0.4490 | 956.7 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -8.62 | 319.63 | 21.15 | 236.29 | 0.4307 | 740.0 | 534.9 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -8.36 | 319.20 | 20.72 | 236.25 | 0.4227 | -586.0 | -462.2 | |
| 0.00 | 1.39 | 0.00 | 0.76 | -9.29 | 319.22 | 20.74 | 234.48 | 0.4312 | 711.0 | 573.2 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -9.13 | 319.21 | 20.73 | 234.76 | 0.4297 | 888.0 | 609.5 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -8.90 | 318.91 | 20.43 | 234.80 | 0.4237 | 692.0 | 445.5 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -12.15 | 318.64 | 20.16 | 228.51 | 0.4517 | 411.0 | 368.7 | |
| 0.00 | 0.96 | 0.00 | 0.52 | -9.29 | 317.71 | 19.23 | 232.38 | 0.4121 | -737.0 | -528.7 | |
| 0.00 | 2.27 | 0.00 | 1.23 | -8.85 | 317.33 | 18.85 | 232.70 | 0.4030 | -904.0 | -717.5 | |
| 0.35 | 5.58 | 0.19 | 3.02 | -8.97 | 317.18 | 18.70 | 232.24 | 0.4022 | -1077.5 | -847.8 | |
| 0.00 | 1.13 | 0.00 | 0.61 | -9.43 | 317.20 | 18.72 | 231.36 | 0.4071 | -725.0 | -580.5 | |
| 0.00 | 1.48 | 0.00 | 0.80 | -8.52 | 316.68 | 18.20 | 232.39 | 0.3916 | -812.0 | -680.6 | |
| 0.00 | 0.78 | 0.00 | 0.42 | -8.88 | 316.47 | 17.99 | 231.33 | 0.3925 | -769.0 | -625.0 | |
| 0.00 | 0.96 | 0.00 | 0.51 | -8.69 | 316.27 | 17.79 | 231.41 | 0.3881 | -859.0 | -738.1 | |
| 0.00 | 4.18 | 0.00 | 2.24 | -8.50 | 316.14 | 17.66 | 231.58 | 0.3845 | -921.0 | -889.4 | |
| 0.00 | 1.22 | 0.00 | 0.65 | -8.16 | 316.12 | 17.64 | 232.26 | 0.3810 | -817.0 | -669.9 | |
| 0.00 | 2.00 | 0.00 | 1.08 | -10.53 | 315.67 | 17.19 | 226.86 | 0.3999 | -367.0 | -471.6 | |
| 0.00 | 0.96 | 0.00 | 0.51 | -8.71 | 314.66 | 16.18 | 228.69 | 0.3683 | -880.0 | -687.0 | |
| 0.00 | 1.74 | 0.00 | 0.93 | -8.98 | 314.49 | 16.00 | 227.82 | 0.3691 | -1052.0 | -871.7 | |
| 0.00 | 0.96 | 0.00 | 0.51 | -8.65 | 313.72 | 15.24 | 227.09 | 0.3563 | -844.0 | -679.1 | |
| 0.00 | 1.13 | 0.00 | 0.60 | -9.37 | 313.22 | 14.74 | 224.65 | 0.3587 | -921.0 | -814.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
