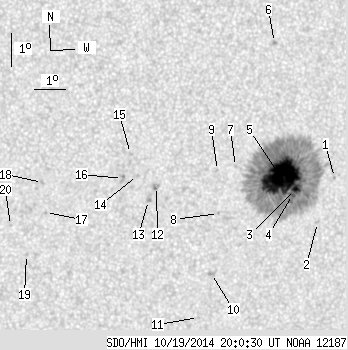

SDO HMI 2014-10-19 20:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 84.95 | 505.49 | 48.09 | 285.93 | -8.85 | 321.33 | 25.05 | 240.20 | 0.4841 | 861.8 | 338.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-19 20:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.55 | -8.86 | 323.27 | 27.00 | 242.03 | 0.5098 | -604.0 | -501.3 | |
| 0.00 | 1.48 | 0.00 | 0.85 | -10.23 | 322.81 | 26.53 | 239.25 | 0.5136 | -733.0 | -583.5 | |
| 3.57 | 477.81 | 2.03 | 270.64 | -9.17 | 321.97 | 25.70 | 240.29 | 0.4950 | 772.9 | 384.6 | |
| 5.23 | -3.00 | 2.97 | -3.00 | -9.32 | 321.89 | 25.61 | 239.93 | 0.4949 | 726.3 | 999999 | |
| 76.15 | -3.00 | 43.09 | -3.00 | -8.78 | 321.48 | 25.20 | 240.50 | 0.4855 | 1330.3 | 999999 | |
| 0.00 | 1.74 | 0.00 | 0.97 | -4.64 | 321.02 | 24.75 | 248.10 | 0.4516 | 929.0 | 795.5 | |
| 0.00 | 1.13 | 0.00 | 0.63 | -8.38 | 319.92 | 23.65 | 239.66 | 0.4618 | 632.0 | 429.6 | |
| 0.00 | 0.78 | 0.00 | 0.44 | -9.81 | 319.46 | 23.19 | 236.50 | 0.4672 | -566.0 | -496.6 | |
| 0.00 | 0.78 | 0.00 | 0.44 | -8.48 | 319.34 | 23.06 | 238.83 | 0.4547 | 673.0 | 409.9 | |
| 0.00 | 3.05 | 0.00 | 1.72 | -11.67 | 319.38 | 23.11 | 233.15 | 0.4823 | 765.0 | 599.7 | |
| 0.00 | 0.87 | 0.00 | 0.49 | -13.03 | 319.07 | 22.80 | 230.52 | 0.4911 | 572.0 | 418.5 | |
| 0.00 | 3.83 | 0.00 | 2.10 | -8.89 | 317.37 | 21.10 | 235.70 | 0.4324 | -838.0 | -770.9 | |
| 0.00 | 2.44 | 0.00 | 1.34 | -9.32 | 317.14 | 20.87 | 234.58 | 0.4331 | -859.0 | -755.5 | |
| 0.00 | 1.13 | 0.00 | 0.62 | -8.53 | 316.74 | 20.47 | 235.58 | 0.4209 | -797.0 | -673.6 | |
| 0.00 | 1.74 | 0.00 | 0.95 | -7.85 | 316.48 | 20.20 | 236.62 | 0.4115 | -644.0 | -540.2 | |
| 0.00 | 3.66 | 0.00 | 1.99 | -8.61 | 316.26 | 19.99 | 234.79 | 0.4154 | -720.0 | -821.0 | |
| 0.00 | 1.13 | 0.00 | 0.61 | -9.58 | 313.85 | 17.58 | 229.31 | 0.3945 | -614.0 | -550.5 | |
| 0.00 | 1.83 | 0.00 | 0.98 | -8.65 | 313.71 | 17.44 | 230.93 | 0.3832 | -855.0 | -745.3 | |
| 0.00 | 0.87 | 0.00 | 0.47 | -10.86 | 313.32 | 17.05 | 226.00 | 0.4019 | -669.0 | -565.5 | |
| 0.00 | 0.26 | 0.00 | 0.14 | -9.95 | 312.76 | 16.49 | 226.76 | 0.3854 | -628.0 | -614.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
