SDO HMI 2014-10-19 22:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 78.43 | 478.57 | 44.79 | 273.28 | -8.84 | 321.32 | 26.15 | 241.31 | 0.4986 | 848.1 | 381.5 | |
|
previous
or next observation for the same group /

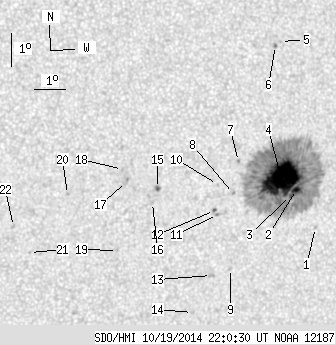

back to the solar disc SDO HMI 2014-10-19 22:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.13 | 0.00 | 0.66 | -10.35 | 322.77 | 27.60 | 240.05 | 0.5282 | -779.0 | -589.5 | |
| 2.79 | 451.03 | 1.60 | 257.87 | -9.14 | 322.02 | 26.85 | 241.43 | 0.5098 | 754.7 | 409.4 | |
| 0.26 | -2.00 | 0.15 | -2.00 | -9.32 | 321.83 | 26.66 | 240.95 | 0.5086 | 739.0 | 999999 | |
| 73.72 | -2.00 | 42.12 | -2.00 | -8.78 | 321.48 | 26.31 | 241.58 | 0.5002 | 1274.1 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.49 | -4.58 | 321.21 | 26.04 | 249.26 | 0.4699 | 643.0 | 563.5 | |
| 0.00 | 1.66 | 0.00 | 0.93 | -4.70 | 321.05 | 25.88 | 248.91 | 0.4682 | 806.0 | 749.6 | |
| 0.00 | 1.31 | 0.00 | 0.74 | -8.19 | 320.00 | 24.83 | 241.23 | 0.4762 | 897.0 | 736.5 | |
| 0.00 | 1.39 | 0.00 | 0.79 | -9.17 | 319.90 | 24.73 | 239.34 | 0.4822 | 758.0 | 573.2 | |
| 0.00 | 1.92 | 0.00 | 1.10 | -11.50 | 319.99 | 24.83 | 235.39 | 0.5020 | 703.0 | 567.6 | |
| 0.00 | 1.22 | 0.00 | 0.69 | -8.87 | 319.35 | 24.18 | 239.31 | 0.4726 | 585.0 | 494.4 | |
| 0.00 | 1.57 | 0.00 | 0.88 | -9.80 | 319.41 | 24.25 | 237.70 | 0.4807 | -428.0 | -322.8 | |
| 0.61 | 1.66 | 0.34 | 0.93 | -9.67 | 319.31 | 24.14 | 237.82 | 0.4783 | -444.7 | -316.7 | |
| 0.00 | 2.35 | 0.00 | 1.34 | -11.69 | 319.37 | 24.21 | 234.39 | 0.4959 | 796.0 | 664.7 | |
| 0.00 | 1.13 | 0.00 | 0.65 | -12.83 | 318.85 | 23.68 | 231.92 | 0.4996 | 696.0 | 536.8 | |
| 1.05 | 2.27 | 0.58 | 1.25 | -8.91 | 317.38 | 22.21 | 237.03 | 0.4470 | -916.3 | -791.9 | |
| 0.00 | 1.13 | 0.00 | 0.63 | -9.34 | 317.24 | 22.07 | 236.07 | 0.4488 | -821.0 | -707.9 | |
| 0.00 | 2.35 | 0.00 | 1.29 | -8.66 | 316.35 | 21.19 | 236.27 | 0.4314 | -716.0 | -709.9 | |
| 0.00 | 1.13 | 0.00 | 0.62 | -8.28 | 316.20 | 21.03 | 236.82 | 0.4262 | -790.0 | -639.5 | |
| 0.00 | 0.70 | 0.00 | 0.39 | -10.79 | 316.20 | 21.03 | 232.10 | 0.4487 | -682.0 | -551.2 | |
| 0.00 | 1.31 | 0.00 | 0.71 | -8.99 | 314.47 | 19.30 | 233.09 | 0.4101 | -789.0 | -679.1 | |
| 0.00 | 0.70 | 0.00 | 0.38 | -10.75 | 313.36 | 18.19 | 228.07 | 0.4140 | -655.0 | -576.9 | |
| 0.00 | 1.74 | 0.00 | 0.94 | -9.92 | 312.80 | 17.63 | 228.72 | 0.3987 | -723.0 | -579.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
