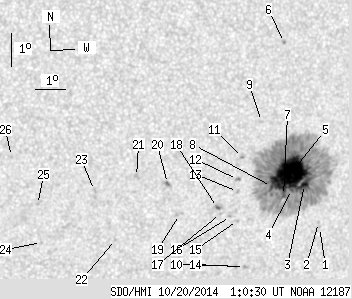

SDO HMI 2014-10-20 01:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 79.22 | 479.57 | 45.96 | 278.17 | -8.85 | 321.35 | 27.84 | 242.79 | 0.5208 | 794.1 | 352.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-20 01:00:30 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.61 | 0.00 | 0.36 | -10.47 | 322.72 | 29.21 | 241.25 | 0.5495 | -661.0 | -577.3 | |
| 0.00 | 0.78 | 0.00 | 0.46 | -10.31 | 322.67 | 29.16 | 241.47 | 0.5478 | -604.0 | -536.3 | |
| 2.96 | 451.60 | 1.73 | 262.34 | -9.11 | 322.08 | 28.56 | 242.97 | 0.5321 | 712.2 | 379.8 | |
| 0.87 | -3.00 | 0.51 | -3.00 | -9.24 | 321.64 | 28.13 | 242.38 | 0.5272 | 731.1 | 999999 | |
| 71.13 | -3.00 | 41.26 | -3.00 | -8.78 | 321.53 | 28.02 | 243.09 | 0.5227 | 1251.0 | 999999 | |
| 0.00 | 1.39 | 0.00 | 0.79 | -4.73 | 321.11 | 27.60 | 250.14 | 0.4929 | 806.0 | 749.8 | |
| 2.61 | -3.00 | 1.52 | -3.00 | -9.42 | 321.38 | 27.87 | 241.87 | 0.5250 | 791.7 | 999999 | |
| 0.26 | -3.00 | 0.15 | -3.00 | -9.12 | 320.94 | 27.43 | 242.00 | 0.5172 | 999.3 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.40 | -7.10 | 320.46 | 26.95 | 245.18 | 0.4975 | 641.0 | 416.1 | |
| 0.00 | 1.57 | 0.00 | 0.91 | -11.56 | 320.25 | 26.74 | 237.25 | 0.5262 | 711.0 | 610.8 | |
| 0.00 | 1.31 | 0.00 | 0.75 | -8.18 | 319.89 | 26.38 | 242.73 | 0.4968 | 794.0 | 633.0 | |
| 0.00 | 2.00 | 0.00 | 1.15 | -8.85 | 319.77 | 26.26 | 241.42 | 0.4998 | 922.0 | 741.4 | |
| 0.00 | 1.31 | 0.00 | 0.75 | -9.22 | 319.80 | 26.29 | 240.79 | 0.5029 | 662.0 | 596.3 | |
| 0.00 | 0.61 | 0.00 | 0.35 | -11.55 | 320.01 | 26.50 | 237.03 | 0.5231 | 581.0 | 640.9 | |
| 0.00 | 1.31 | 0.00 | 0.75 | -10.12 | 319.87 | 26.36 | 239.30 | 0.5104 | 534.0 | 435.7 | |
| 0.00 | 1.13 | 0.00 | 0.65 | -9.98 | 319.62 | 26.11 | 239.29 | 0.5062 | 800.0 | 618.4 | |
| 0.00 | 1.05 | 0.00 | 0.60 | -9.87 | 319.28 | 25.77 | 239.14 | 0.5009 | -468.0 | -390.0 | |
| 0.78 | 2.00 | 0.45 | 1.14 | -9.68 | 319.16 | 25.65 | 239.36 | 0.4979 | -241.1 | -142.5 | |
| 0.00 | 1.83 | 0.00 | 1.03 | -9.85 | 317.90 | 24.39 | 237.79 | 0.4829 | -650.0 | -612.5 | |
| 0.61 | 2.00 | 0.34 | 1.12 | -8.87 | 317.43 | 23.92 | 239.06 | 0.4690 | -880.0 | -720.9 | |
| 0.00 | 2.88 | 0.00 | 1.60 | -8.61 | 316.39 | 22.88 | 238.40 | 0.4533 | -787.0 | -681.0 | |
| 0.00 | 1.22 | 0.00 | 0.68 | -10.54 | 315.84 | 22.33 | 234.20 | 0.4624 | -645.0 | -397.1 | |
| 0.00 | 1.83 | 0.00 | 1.01 | -8.99 | 315.05 | 21.53 | 236.09 | 0.4387 | -740.0 | -554.6 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -10.54 | 313.43 | 19.92 | 231.04 | 0.4325 | -611.0 | -463.4 | |
| 0.00 | 0.61 | 0.00 | 0.33 | -9.36 | 313.23 | 19.71 | 232.98 | 0.4186 | -650.0 | -557.4 | |
| 0.00 | 0.87 | 0.00 | 0.47 | -7.85 | 312.31 | 18.80 | 234.71 | 0.3929 | -713.0 | -591.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
